LED Pool Light, Cross-Mounted, 14W / 12V for Plastic and Fiberglass Pools (Replacement for 100W Light)

The package includes everything needed for installation: frame, gasket, cable, screws, mounting cross and wall gland. This comprehensive set ensures easy installation and reliable operation in various types of pools.

Installation and Additional Requirements

For proper installation, a junction box and a 50W / 12V pool light transformer must be purchased separately. The light should be installed approximately 70–80 cm below the water surface.

Practical and Safe Use

The pool light not only enhances the aesthetic appearance of your pool but also increases safety during night swimming.

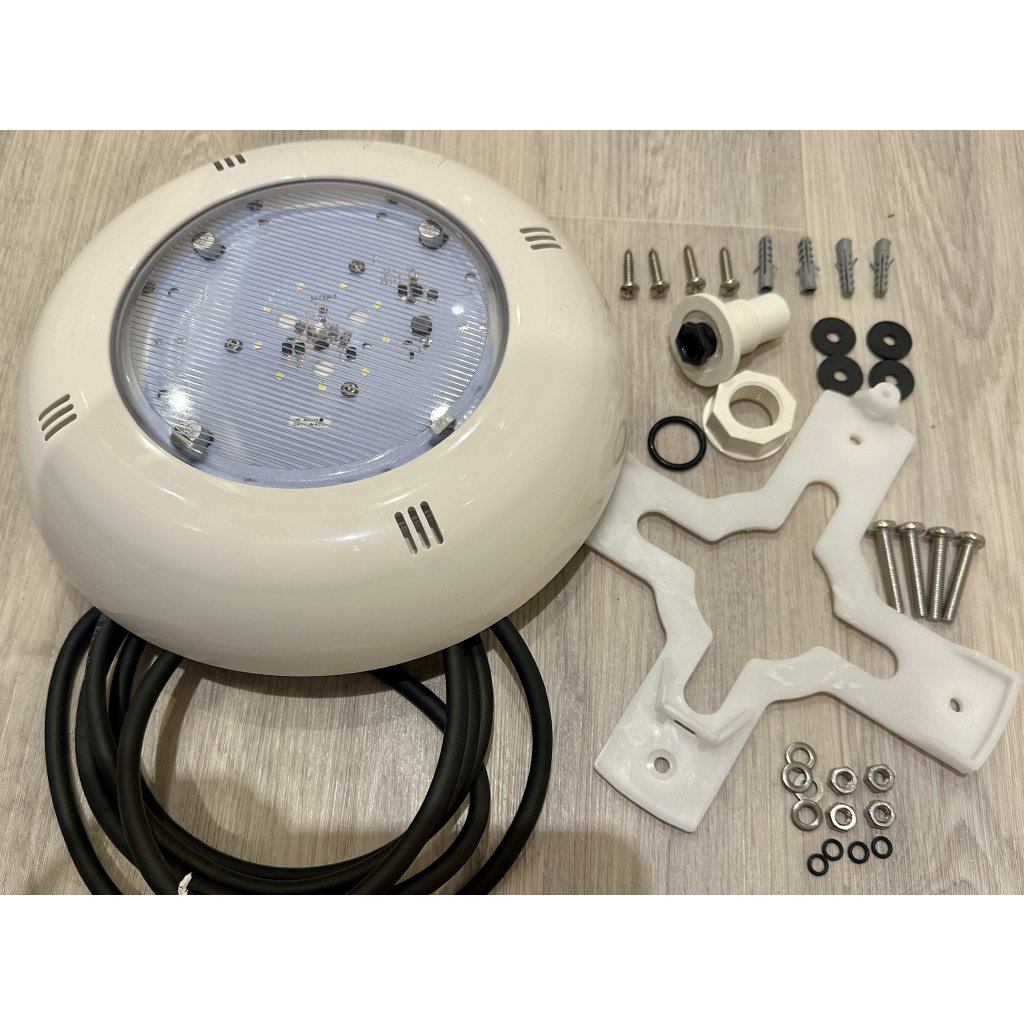

Package contents:

Light source 14.5W / 12V

• Light housing
• 2.5 m cable
• Wall gland with nut
• Mounting cross with fixing elements

Required accessories (not included):

Junction box for pool light

Pool light transformer 50W / 12V

Installation Manual – LED Pool Light

IMPORTANT:
This manual contains important information on safety measures that must be observed during installation and commissioning. Both the installer and the user must carefully read this manual before installation and start-up. Keep this manual for future reference.

To achieve optimal performance of the LED pool light, follow the instructions below:

1. Package Contents Check

The package includes the following items:

• LED pool light
• Wall mounting bracket
• Installation and maintenance manual
• Warranty card
• Set of mounting accessories
• Electrical connection instructions

2. General Characteristics

This light is designed for permanent underwater installation. It is a Class III electrical device operating at very low safety voltage (12 V AC).

The light complies with protection class IPX8 and is intended exclusively for underwater use.

The product complies with EN 60598-2-18 and other relevant standards for swimming pool luminaires.

3. Installation

It is recommended to install approximately 1 LED light per 20 m² of water surface.

Note: Installation in light-colored pools is recommended. For dark pool finishes or stainless steel pools, a higher number of lights may be required.

• The light must be installed so that it does not shine towards residential areas or frequently used spaces.
• For overflow pools, the light must be installed on the side wall.
• When replacing a conventional light with an LED light, it is recommended to use the existing cable. Silicone sealing is not recommended as it may prevent future servicing and void the warranty.
• The light should be installed approximately 400–700 mm below the water surface.

For both concrete and prefabricated pools, correct orientation of the light is essential – the “TOP” marking must face upwards.

Safety Warnings

• Installation must be carried out by a qualified person only.
• Avoid working on electrical equipment under voltage.
• Observe applicable safety regulations and standards.
• All installation work must be performed with the power supply disconnected.

Installation – Concrete Pool (see Fig. 1)

Place the wall mounting bracket (part No. 1) in the designated position. Mark the holes, drill 6 mm holes and insert wall plugs and fixing elements (part No. 2).

Secure the bracket to the pool wall using screws (see Fig. 3).

Place the light housing (part No. 4) into the upper left section of the bracket according to the dimensions shown in Fig. 3.

Installation – Prefabricated Pool (see Fig. 2)

Place the wall mounting bracket (part No. 1) in the designated position. Mark the holes and drill 6 mm holes.

Use screws (part No. 5) together with O-rings (part No. 6) to fix the bracket to the inner wall of the pool.

On the outer side of the pool, install washers (part No. 8) and nuts (part No. 9).

Place the light housing (part No. 4) into the upper left section of the bracket according to the dimensions shown in Fig. 3.

Install the sealing gland (part No. 10) and gland nut (part No. 11) on the outer side of the pool wall.

4. Assembly – Version with 2.5 m Cable

The light is supplied with a 2.5 m cable. The cable must be routed through a protective conduit to the junction box or transformer.

The cable must be secured to prevent tension or damage from sharp edges.

Excess cable can be stored in the installation recess behind the light.

5. Assembly

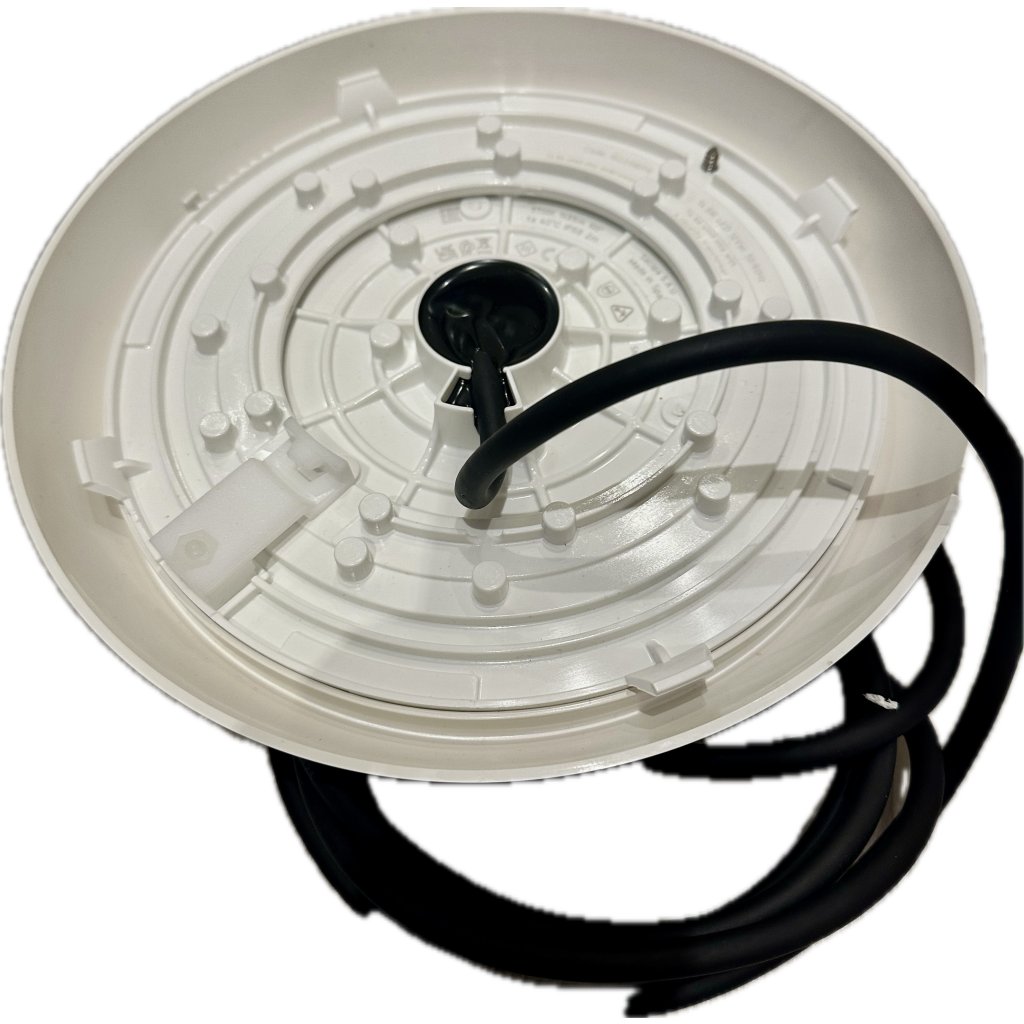

The light is supplied with approximately 2.5 m of cable, routed through the rear of the light housing, with approx. 1.5 m of cable remaining inside the pool.

Wind the cable into the rear of the light housing according to the diagram (see Fig. 6).

Secure the cable firmly using the supplied fixing element (see Fig. 5).

Remove the light cover by loosening the screws (see Fig. 7).

Remove the cable holder from the light (see Fig. 8–9) and ensure the O-ring is correctly seated.

Place the light into the wall bracket (see Fig. 10).

Tighten the fixing screw as shown in Fig. 9. Further installation steps are shown in Fig. 10 and 11.

Warning: Before completing the installation, make sure that no water remains inside the light.

Operating Instructions

The light must be operated exclusively with a safety transformer. Use only components recommended by the manufacturer.

Before switching on, ensure that no water remains inside the light.

Water Chemical Treatment

Warning: Pool water pH must always be between 7.2 and 7.6.
