Find the right part for Dolphin S200
Cleaner photo, exploded diagram and a guide to the spare parts already listed in our shop.
Check the exact model and serial number on the label. Compare the diagram position, part code and version in the guide below.
Dolphin S200 – illustrative photo
Similar appearance does not guarantee compatibility. Check cable length and connectors, the correct power supply, filter micron rating and brush version. If unsure, send a photo of the cleaner label and original part to info@chemie-bazen.cz.

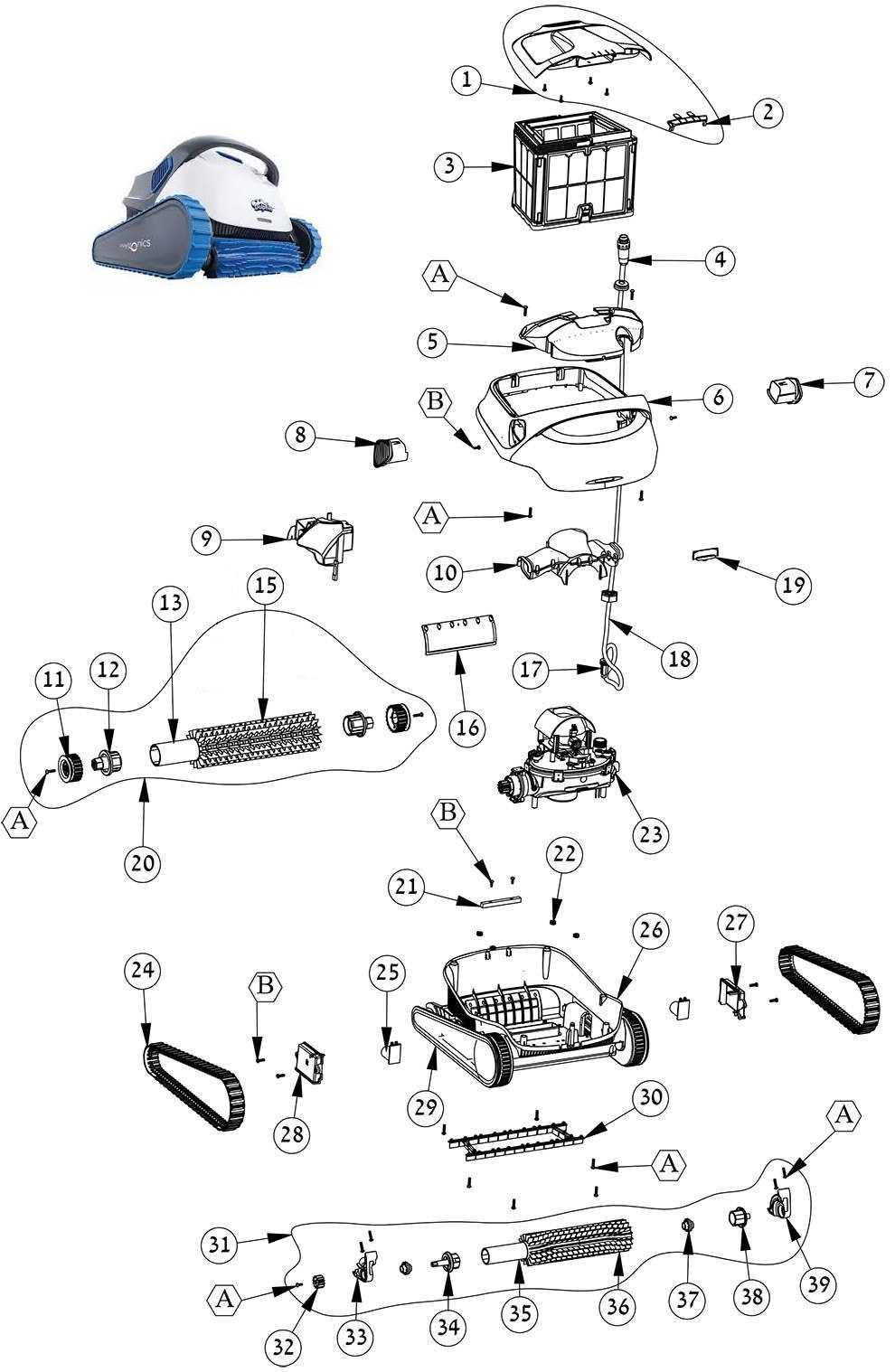

the Poolservis teamExploded diagram: Dolphin S200
Click the diagram to enlarge it. Item numbers help identification; the model and part code must also match. A dash indicates an accessory or an item without an assigned position.
Choose a part by cleaner section
Open a product for its current price and availability. This guide contains only items already listed in this category.
Searches the parts shown below. Clear the field to display all parts.
No matching parts. Try a shorter name or the part code.
Filters, baskets and covers
| Position | Spare part | Product details |
|---|---|---|
| — |  Coarse filter insert for Dolphin S200, S300 and S300ioT – 100 µmPart code: 99996224 |
View part → |
| — |  Filter basket for Dolphin S200, S300, S300ioT - 20micPart code: 99996223 |
View part → |
Drive system, wheels and brushes
Motor, cables and power supply
Transport and accessories
| Position | Spare part | Product details |
|---|---|---|
| — |  Premium protective cover for Dolphin caddy and pool cleanerPart code: 9996101 |
View part → |
| — |  Transport trolley for Dolphin S300i, S200, E10, E20, LibertyPart code: 9996098 |
View part → |
Product sorting
List of products
Listing controls
Spare parts for Dolphin S200
S200 service parts cover filters, brushes, drive components and power parts. Selected products are also listed for other models, such as S300, but each component has its own compatibility information.
Coarse insert and fine filter
The 100 µm filter insert is for coarser debris and, according to the product listing, fits inside the fine filter. 20 µm filtration captures smaller particles. When ordering, distinguish between an individual insert, panels and a complete basket assembly, rather than relying only on the micron rating.
Brushes and drive
The active brush, small intake brush, track and drive wheel are separate parts. If movement is irregular, also check for dirt and debris trapped in the mechanism.
Power supply and cables
The floating cable between the cleaner and power supply serves a different purpose from the mains lead. A replacement must match the original code, connectors and any Swivel fitting. Motor units and power components are matched to the exact production version.
