1Position
Spare part
Injection valve 3/8" for Zodiac pH, chlorine Expert, Gen pH, Gen chlorine 1,5L
⅜″Compare connections and the original configuration before ordering.
Code: 9900107028Zodiac pH / chlorine dosing spare parts
ZODIAC · DOSING STATIONS
Zodiac pH Expert / Chlor Expert spare parts
Select your station and find the correct part by diagram position, name or code. Shared parts are listed once; probes and electronics are distinguished by application.

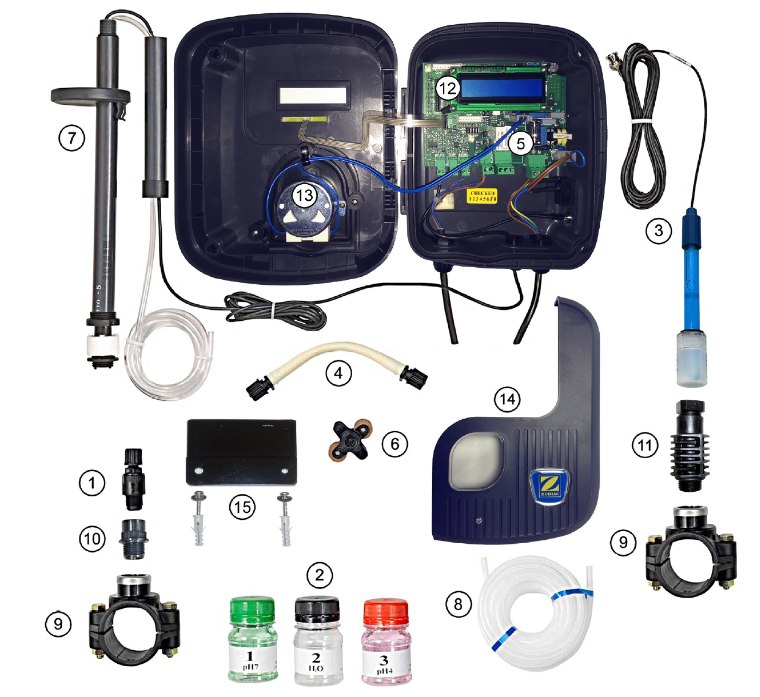

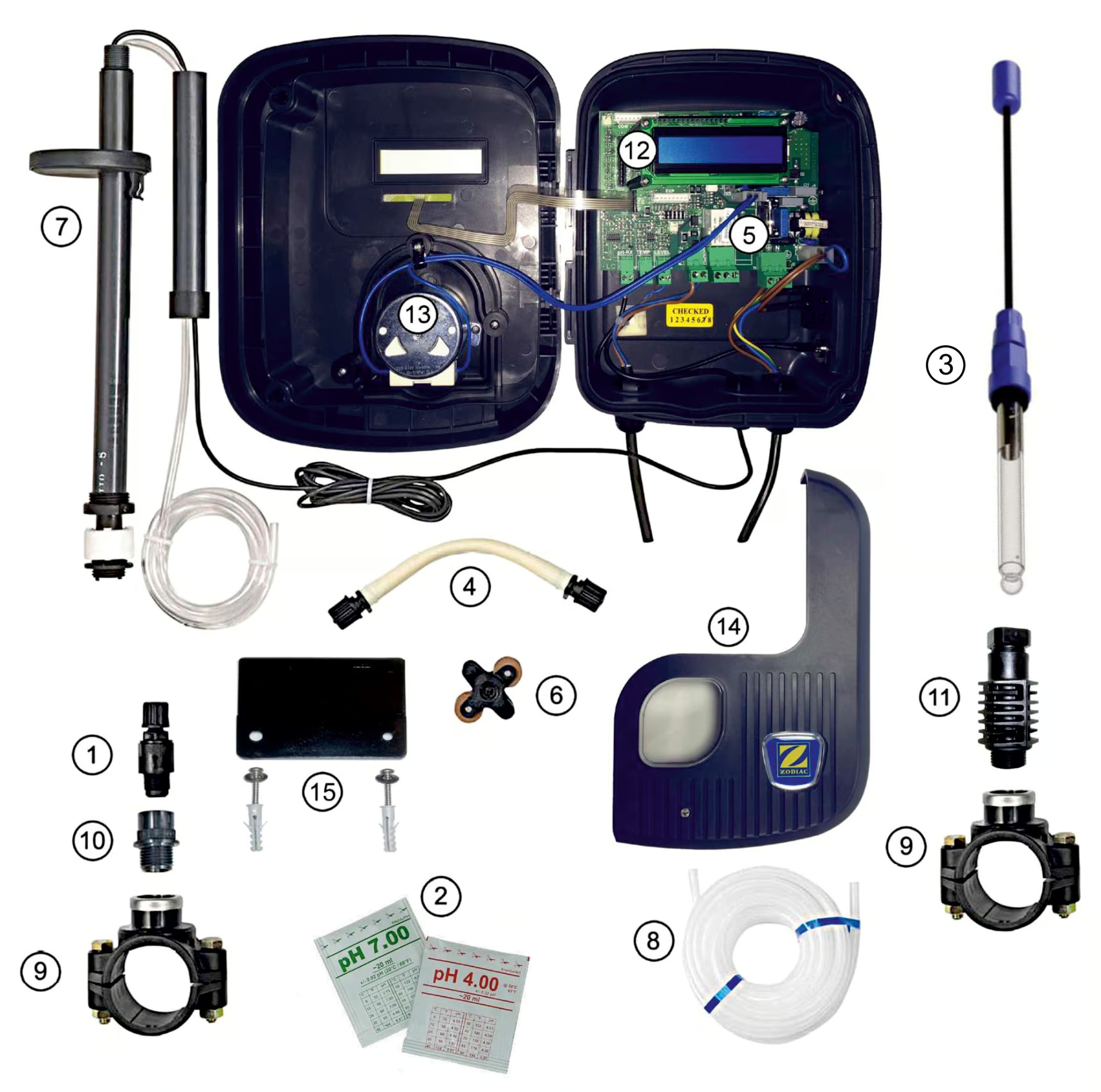

22 parts in one overviewOriginal diagramsSearch by code or position

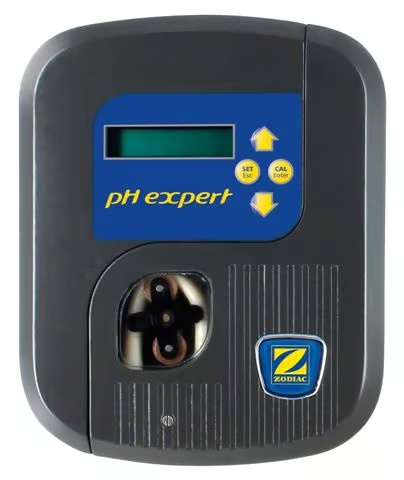

pH Expert

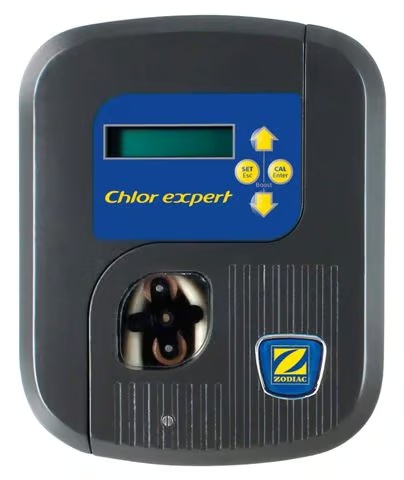

Chlor Expert
Position — = part without a separate number in the supplier overview. * = alternative requiring a specification check; see its row.
2*Position
Spare part
pH 4.00 calibration solution
pH 4.00Individual calibration solution. Follow the value specified by the station manual; for ORP, also check the calibration reference setting. This is not the original Zodiac sachet set.
Code: A930330R2*Position
Spare part
pH 7.00 calibration solution
pH 7.00Individual calibration solution. Follow the value specified by the station manual; for ORP, also check the calibration reference setting. This is not the original Zodiac sachet set.
Code: A930331R2*Position
Spare part
Redox 468 mV calibration solution
468 mVIndividual calibration solution. Follow the value specified by the station manual; for ORP, also check the calibration reference setting. This is not the original Zodiac sachet set.
Code: A930352R3Position
Spare part
Zodiac Expert pH Probe, Gen, pH Link, Dual Link (compatible)
pH · compatibleFor pH Expert. Do not substitute an ORP probe.
Code: S99001062373Position
Spare part
Redox Probe Zodiac Expert, Gen, pH Link, Dual Link (compatible)
ORP · compatibleFor Chlor Expert. Do not substitute a pH probe.
Code: S99001062383Position
Spare part
pH probe exo Zodiac Expert, Gen, pH Link, Dual Link
pH · genuine ZodiacFor pH Expert. Do not substitute an ORP probe.
Code: WR08198003Position
Spare part
ORP probe eXo Zodiac Expert, Gen, pH Link, Dual Link
ORP · genuine ZodiacFor Chlor Expert. Do not substitute a pH probe.
Code: WR08199004Position
Spare part

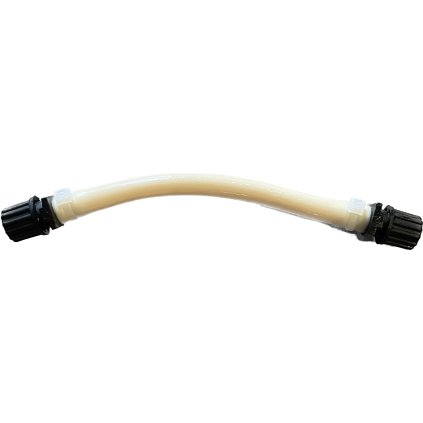

Spare hose for dosing pump Zodiac pH, chlorine Expert, Gen pH,Gen chlorine 1,5L - for automatic dispensers
6 × 10 mm · length 135 mmCompatible 1.5 l/h squeeze tube: 6 × 10 mm, 135 mm without end fittings. Compare the dimensions and end fittings of the original tube.
Code: S99001062367Position
Diagram excerpt
Spare part
Code: W013008

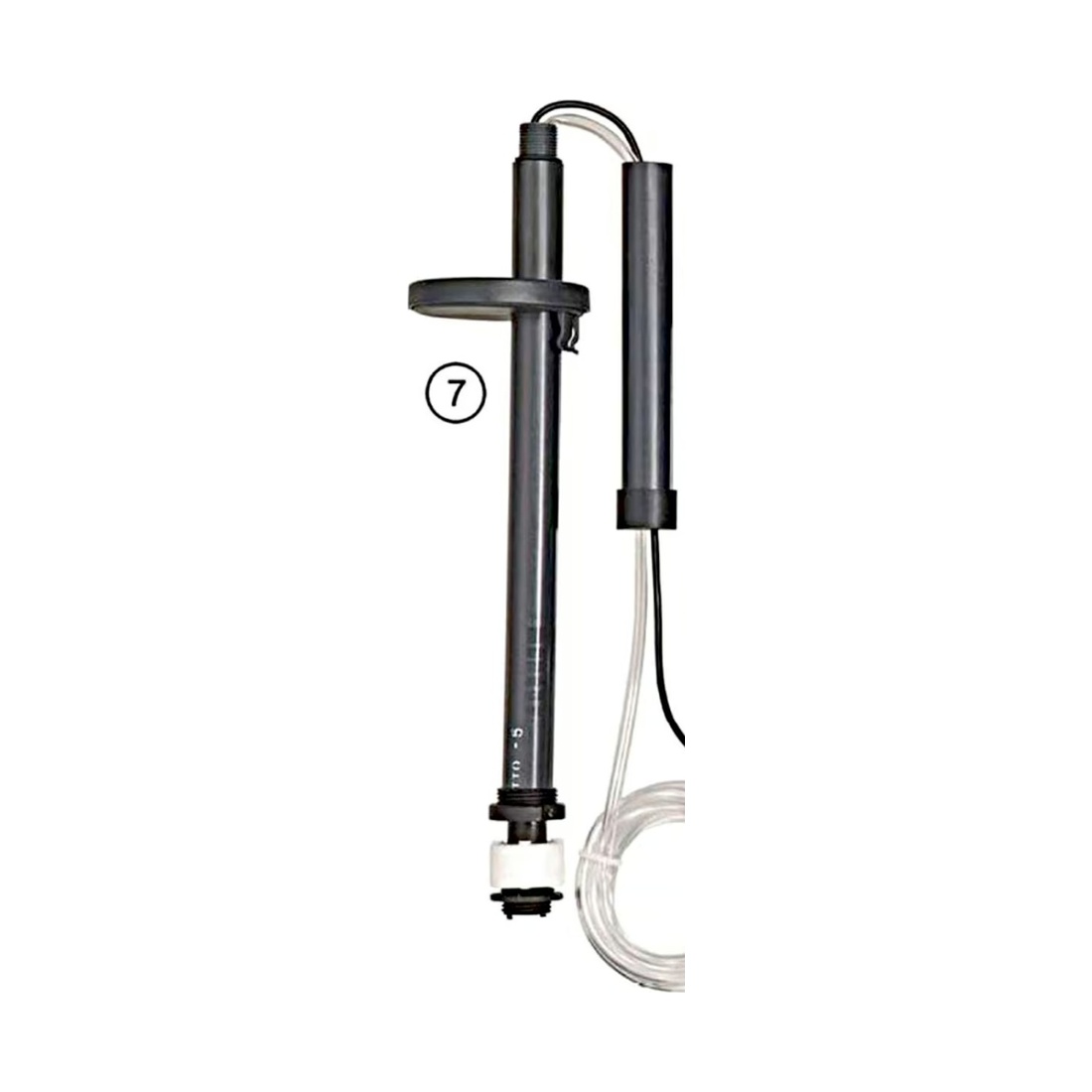

Zodiac pH / Chlor Expert suction tube
W013008Suction assembly for drawing dosing liquid from its container. Compare length, end fittings and the original assembly.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
8*Position
Spare part
Connecting pipe - hose for dosing machines and pumps - 1/4" (6,35mm)
Ø 6.35 / 4 mm · sold by the metreCheck before use: the original list specifies 4 × 6 mm tubing. This product has a 6.35 mm outer diameter. Compare fittings; it is not a dimensionally identical replacement.
Code: 132789Position
Spare part
PVC saddle clamp for 50 mm pipe × 1/2" female thread
50 mm × ½″Compare connections and the original configuration before ordering.
Code: 21960500310Position
Diagram excerpt
Spare part
Code: W013015

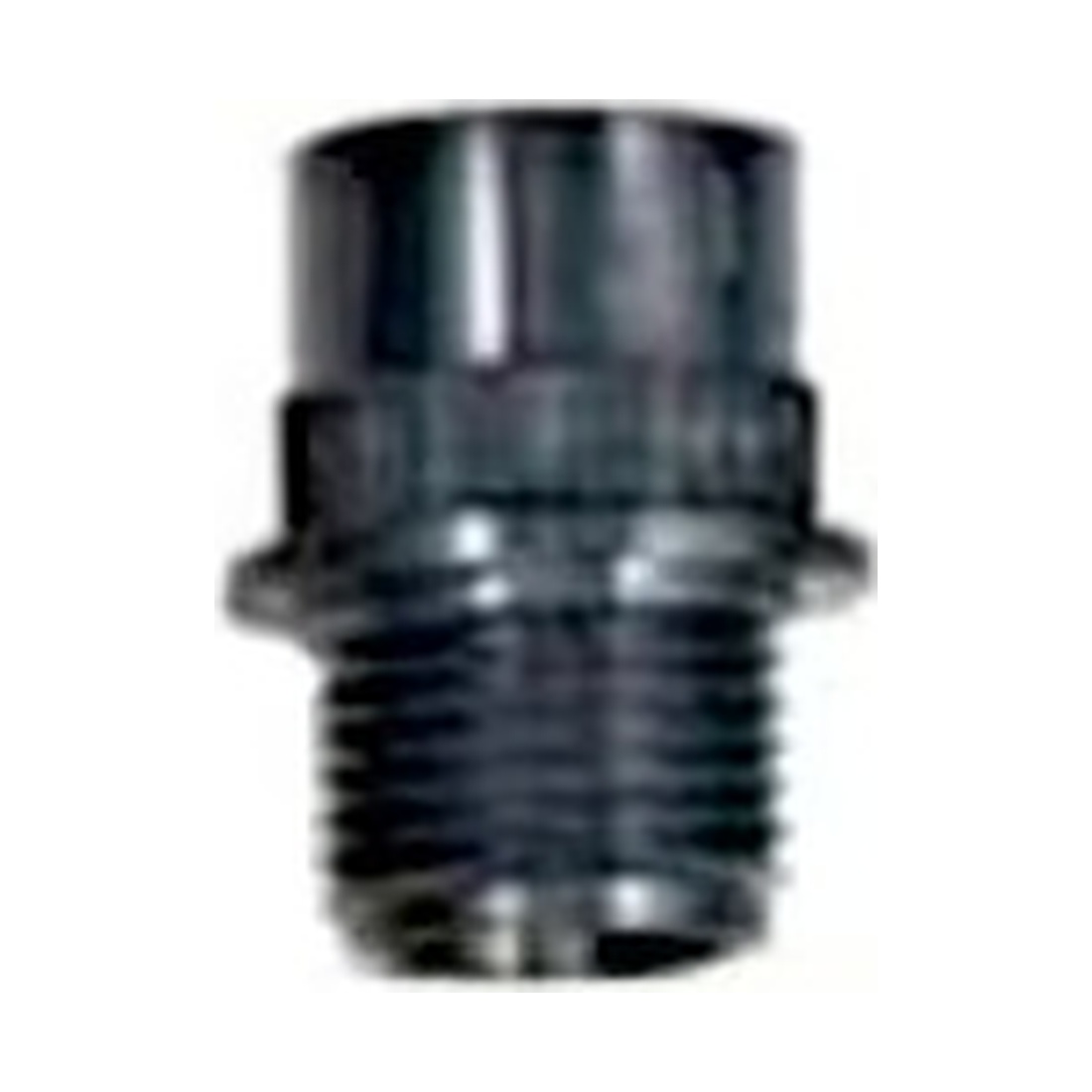

Injection valve adapter for Zodiac pH / Chlor Expert
⅜″ · connection adapterInjection valve adapter shown as position 10. Check the threads on both sides before ordering.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
11Position
Spare part
Zodiac probe holder - older type
½″ · opening for Ø 12 mm probeCompare connections and the original configuration before ordering.
Code: 990010702711Position
Spare part
Zodiac probe holder - new type PG13,5
½″ · PG13.5Compare connections and the original configuration before ordering.
Code: WR082460012Position
Diagram excerpt
Spare part
Code: W013022

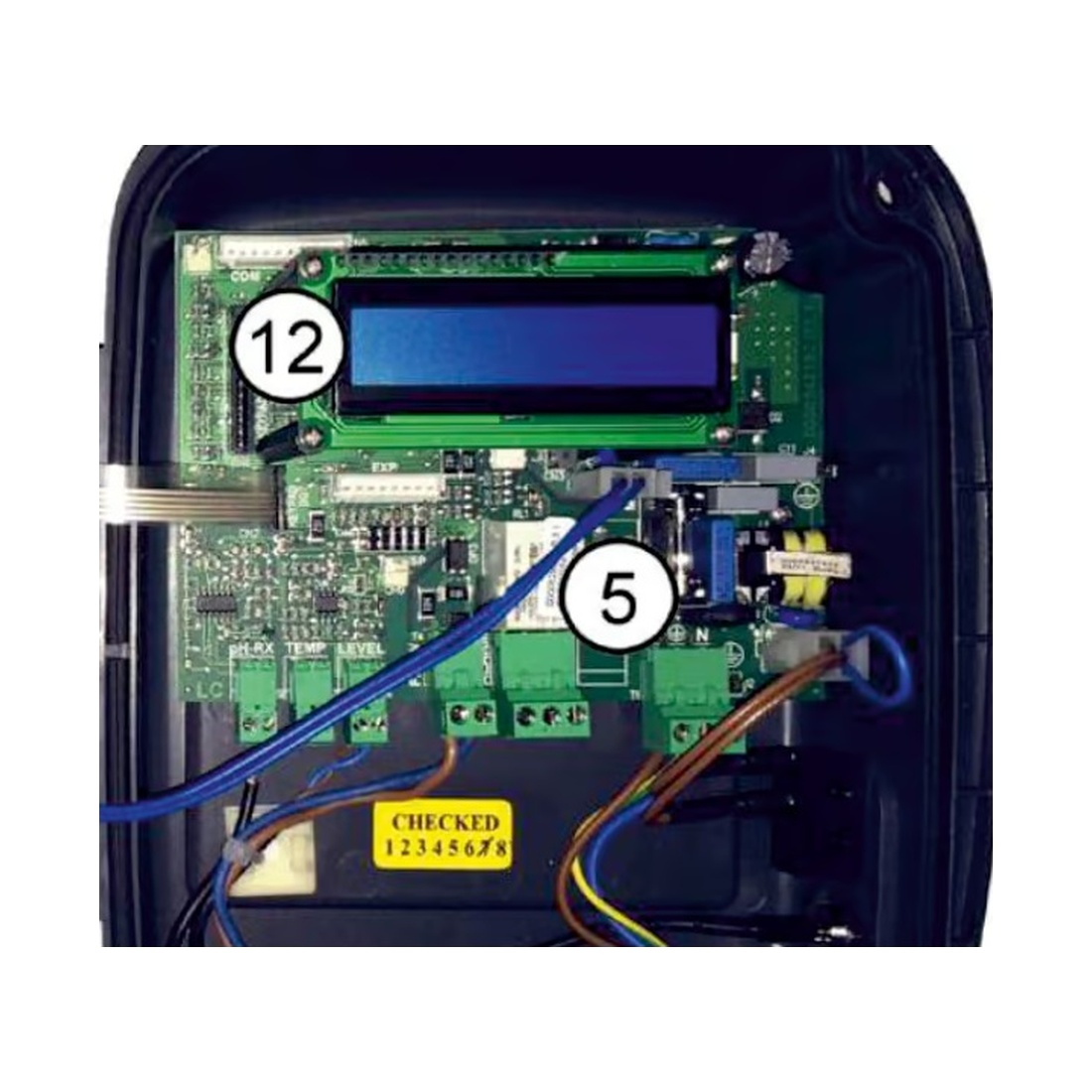

Zodiac pH Perfect / Expert electronics
W013022Electronics for the pH version in the supplier list. Not interchangeable with Chlor Expert electronics. Match the board code and station label.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
12Position
Diagram excerpt
Spare part
Code: W013032

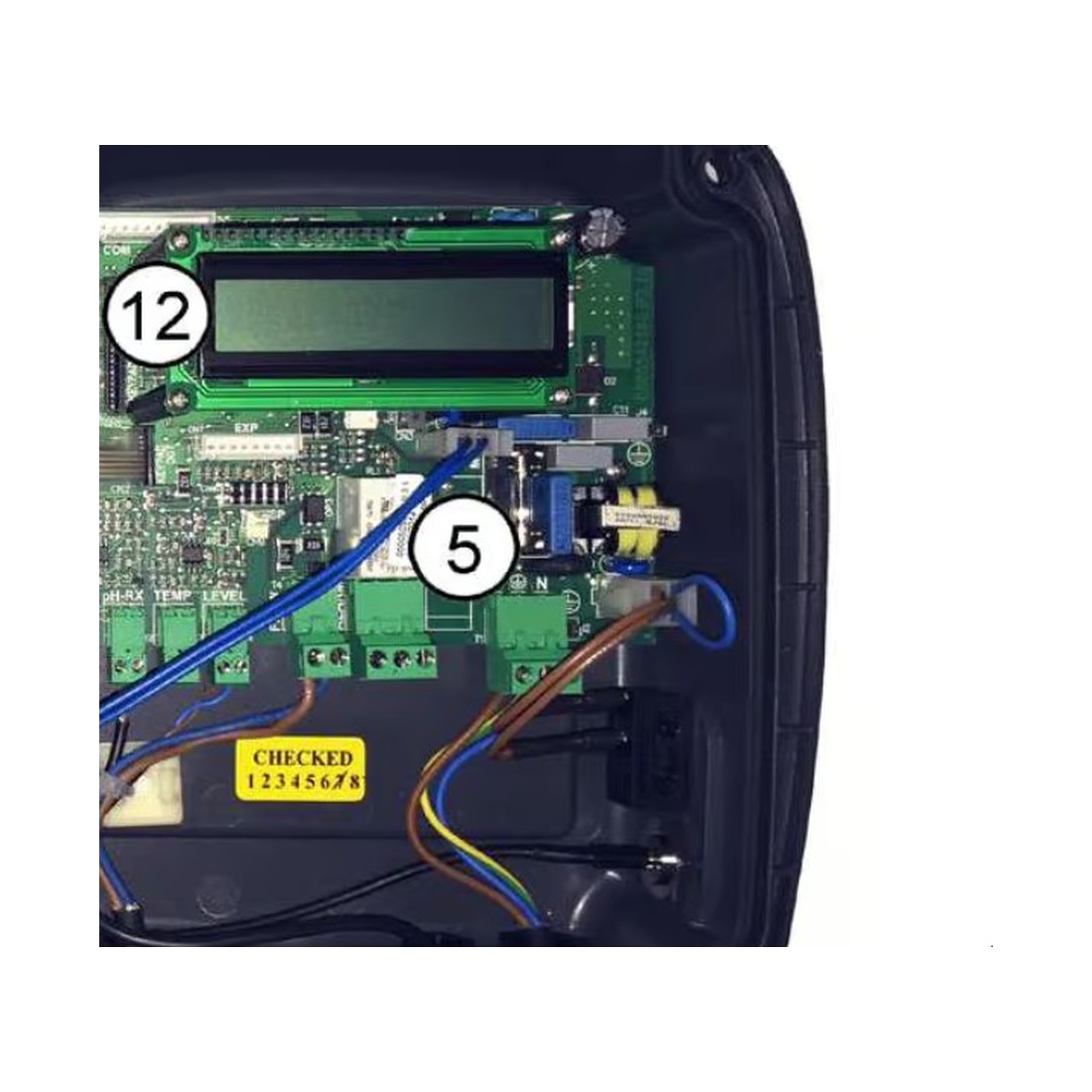

Zodiac Chlor Perfect / Expert electronics
W013032Electronics for the chlorine version in the supplier list. Compare board code, connectors and station label before service replacement.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
13Position
Diagram excerpt
Spare part
Code: W013026

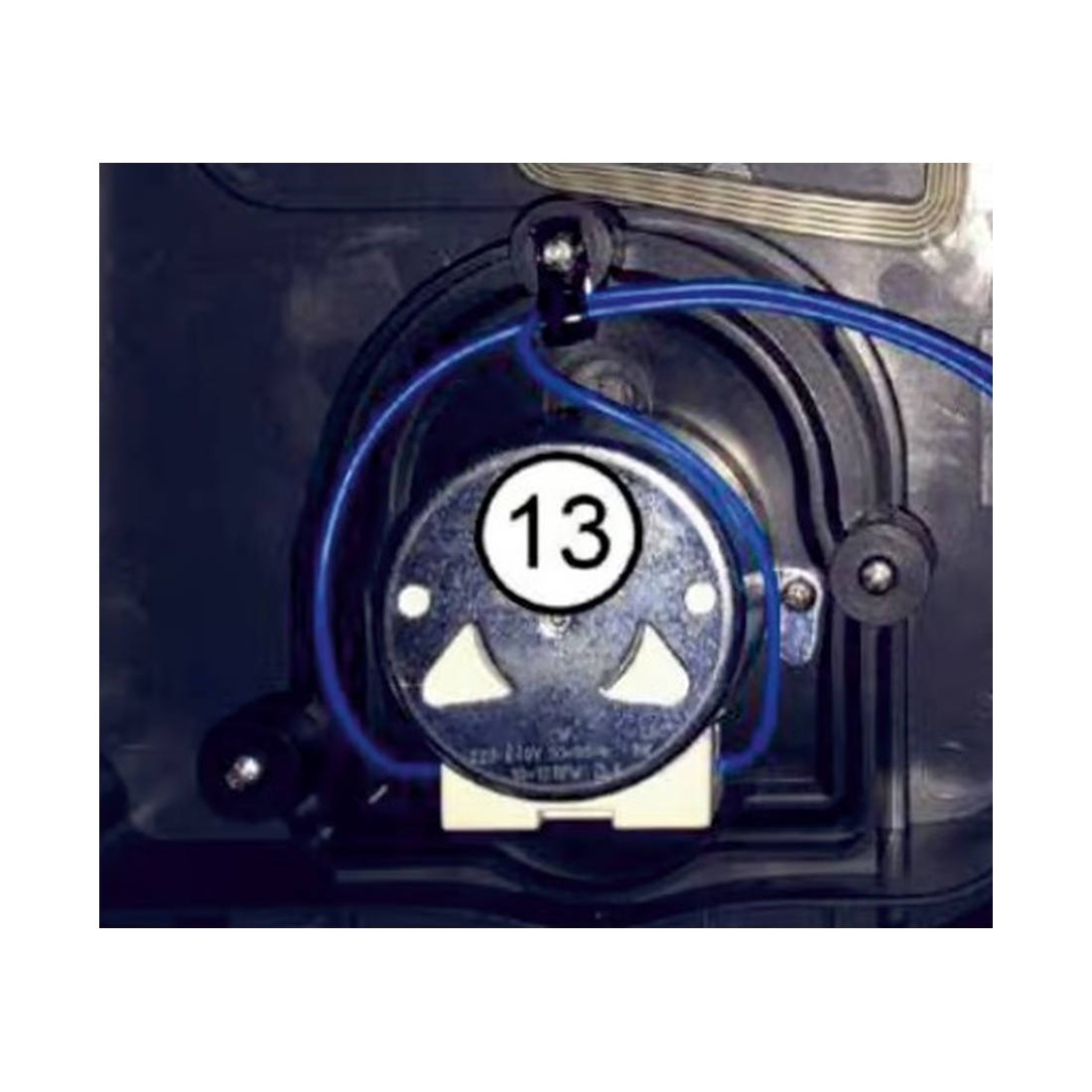

Peristaltic pump motor for Zodiac pH / Chlor Expert – 1.5 l/h
1.5 l/h · version with casingDosing pump motor, position 13. Distinguish a motor fault from an electronics fault or mechanical blockage. Not a complete station.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
14Position
Diagram excerpt
Spare part
Code: WR0595000

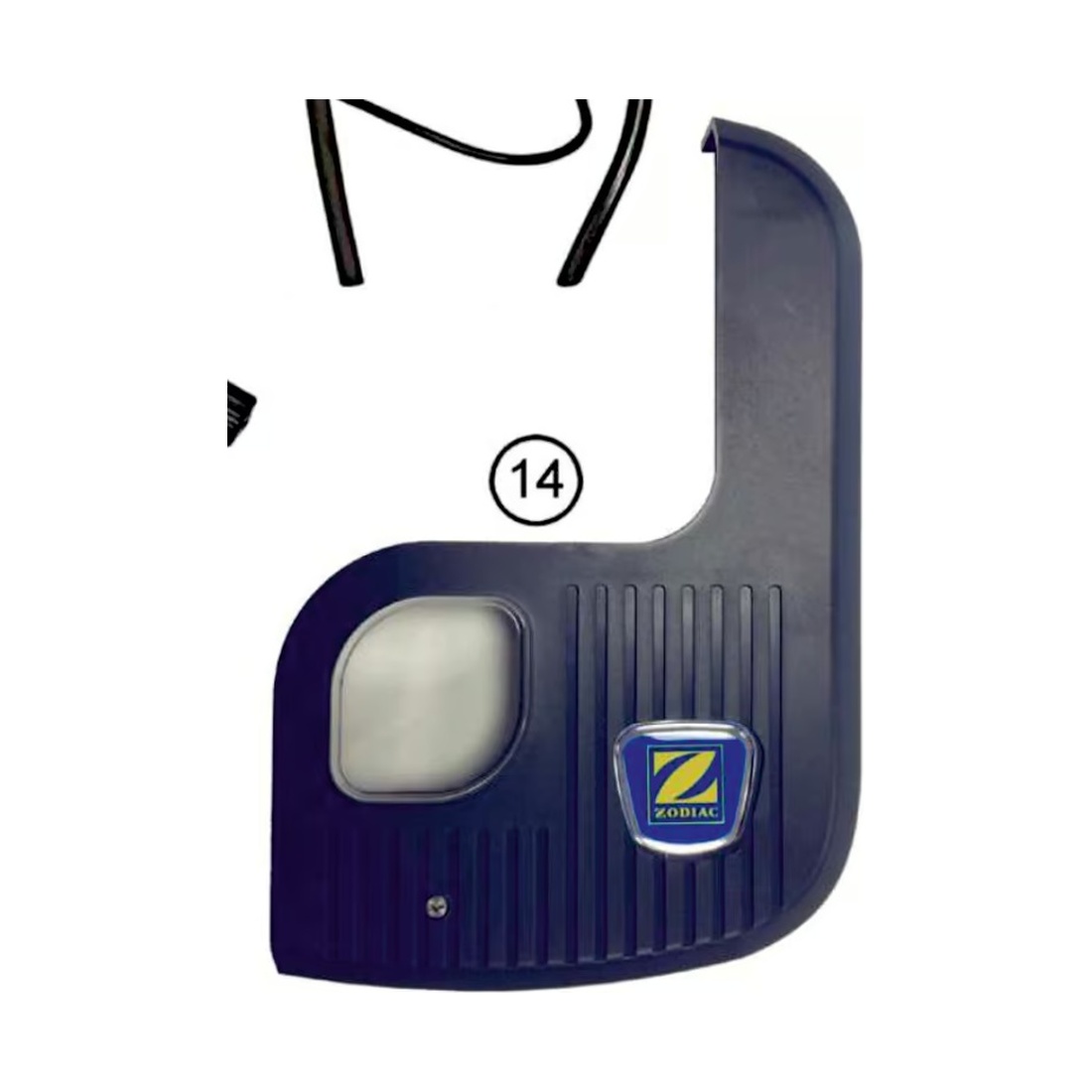

Peristaltic pump cover for Zodiac pH / Chlor Expert
WR0595000Replacement dosing pump cover, position 14. Replaces a damaged cover; the tube, motor and electronics are separate components.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
—Position
Device identification
Spare part
Code: WR0594700

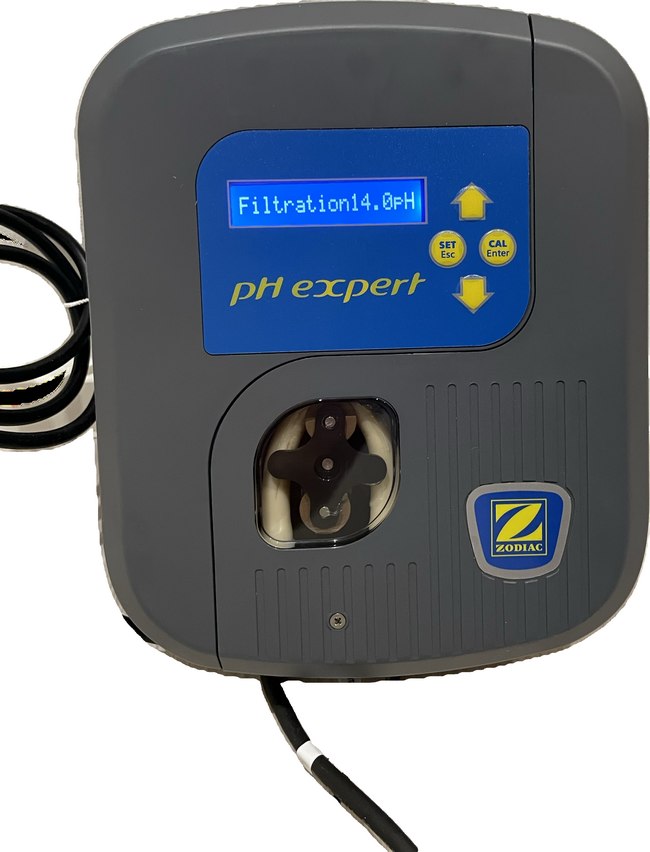

Zodiac pH Expert control panel
WR0594700Control panel for pH Expert. Compare printing, buttons and original panel code. The chlorine version has a different reference.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
—Position
Device identification
Spare part
Code: WR0594800

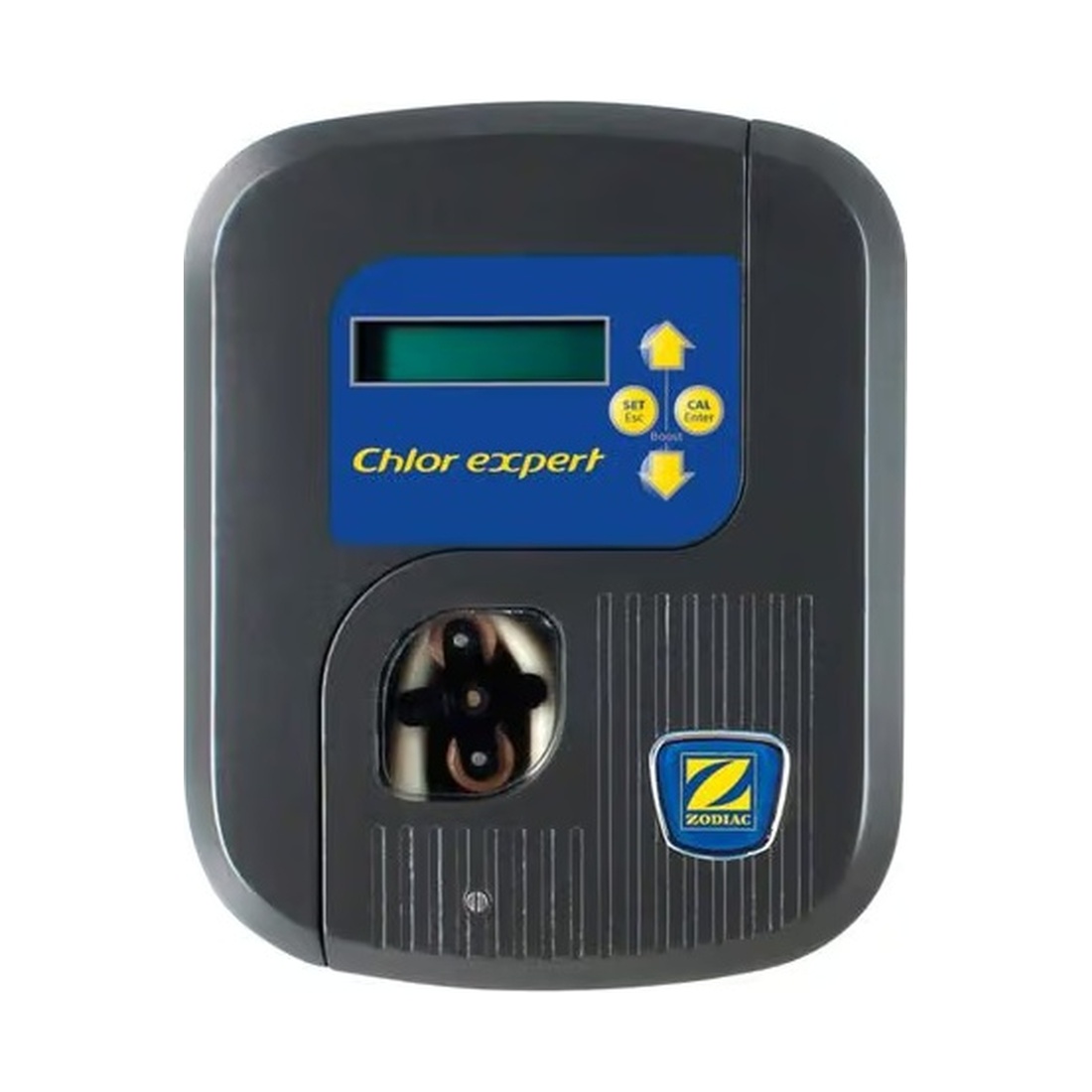

Zodiac Chlor Expert control panel
WR0594800Control panel for Chlor Expert. Select by station identification; it does not replace the pH Expert panel.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
—Position
Device identification
Spare part
Code: WR0594900
Front and rear casing for Zodiac pH / Chlor Expert
WR0594900Empty front and rear station casing. Replaces damaged station housing. The pump and control electronics are not included with the empty casing.
Compatibility and contents
Match the original part code, station identification and connections. You are ordering the named replacement part, not a complete station. See the product page for details and supplied contents.
No matching parts. Try another query.
Page 1 of 1 -
17 items total
Product sorting
List of products
Listing controls
17 items total
Parts for Zodiac pH and Chlor Expert / Gen dosing stations
When servicing a dosing station, the pump, measuring probe, probe holder and electronics can be addressed separately. The full equipment model and original catalogue code help identify the part.
Two probe holder designs
The newer holder has a ½″ connection and a PG13.5 thread for the probe. The older holder is listed for a 12 mm diameter probe. Choose the mounting method to match the original measuring assembly.
Pump and electronics
The range includes replacement tubes, a pump cover, motor and control boards. Electronics for pH and chlorine have their own applications. Diagnose a dosing fault first so that the component actually at fault is replaced.
pH and redox calibration solutions are available for maintaining the measuring system. Their use follows the particular station's procedure. Have a service technician carry out electrical repairs.
