Find the right part for Aquasphere ASR 105
Cleaner photo, exploded diagram and a guide to the spare parts already listed in our shop.
Check the exact model and serial number on the label. Compare the diagram position, part code and version in the guide below.
Aquasphere ASR 105 – illustrative photo
Similar appearance does not guarantee compatibility. Check cable length and connectors, the correct power supply, filter micron rating and brush version. If unsure, send a photo of the cleaner label and original part to info@chemie-bazen.cz.

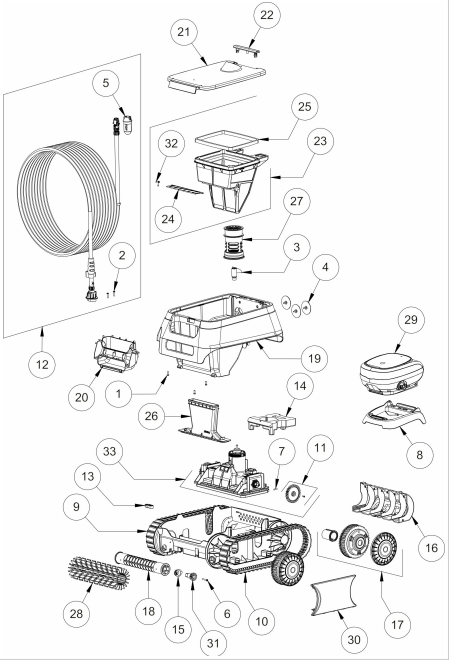

the Poolservis teamExploded diagram: Aquasphere ASR 105
Click the diagram to enlarge it. Item numbers help identification; the model and part code must also match. A dash indicates an accessory or an item without an assigned position.
Choose a part by cleaner section
Open a product for its current price and availability. This guide contains only items already listed in this category.
Searches the parts shown below. Clear the field to display all parts.
No matching parts. Try a shorter name or the part code.
Filters, baskets and covers
| Position | Spare part | Product details |
|---|---|---|
| 23 |  Filter basket 150 mic for ASR 105Part code: R0999700 |
View part → |
| 23 |  FINE Filter basket 100 mic for ASR 105Part code: R0999 |
View part → |
Drive system, wheels and brushes
| Position | Spare part | Product details |
|---|---|---|
| 10 |  Drive belt Aquasphere ASR 105Part code: R0895200 |
View part → |
| 17 |  Aquasphere ASR 105 drive wheelPart code: R0897300 |
View part → |
Motor, cables and power supply
Transport and accessories
| Position | Spare part | Product details |
|---|---|---|
| — |  AquaSphere ASR 105 robotic pool cleaner caddyPart code: WR0898102 |
View part → |
Product sorting
List of products
Listing controls
Spare parts for Aquasphere ASR 105
Available ASR 105 parts include filter baskets, drive components, the cable, and power and motor parts. Repairs can therefore focus on the damaged component identified in the cleaner's exploded diagram.
150 or 100 µm filter basket
The 150 µm basket collects everyday debris. It measures 22 × 20.5 × 19.5 cm and is listed as position 23 in the diagram. The finer 100 µm basket also captures smaller particles; heavier contamination may require more frequent rinsing.
Drive and electrical components
A worn track or damaged wheel can affect the cleaner's movement. Identify the cause before ordering a motor unit, as a mechanical obstruction can produce similar symptoms.
The ASR 105 serial number and original component identification help select cables and power parts. Have electrical repairs and replacement of sealed components carried out by a service professional.
