Rotor s těsněním pro PRAHER ventil TOP 1,5" - Starý typ (1990-2008)

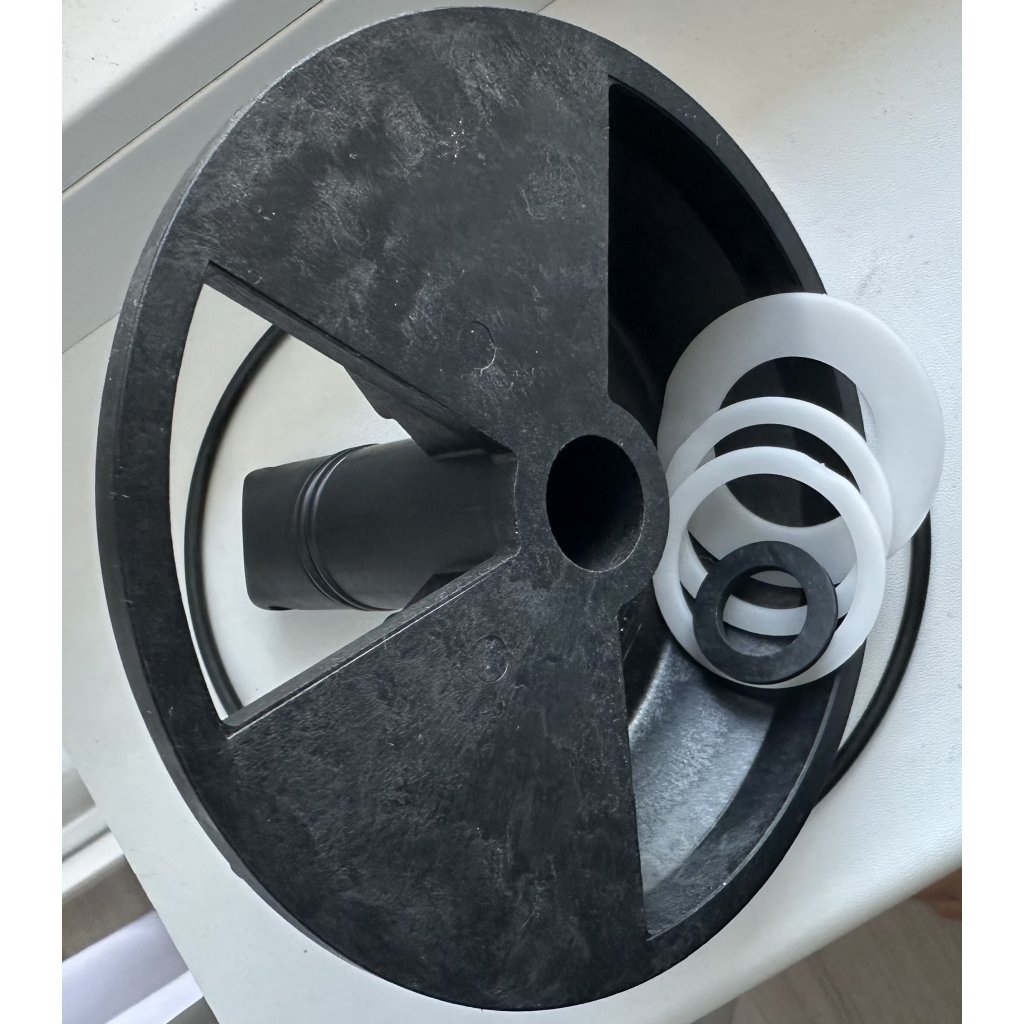

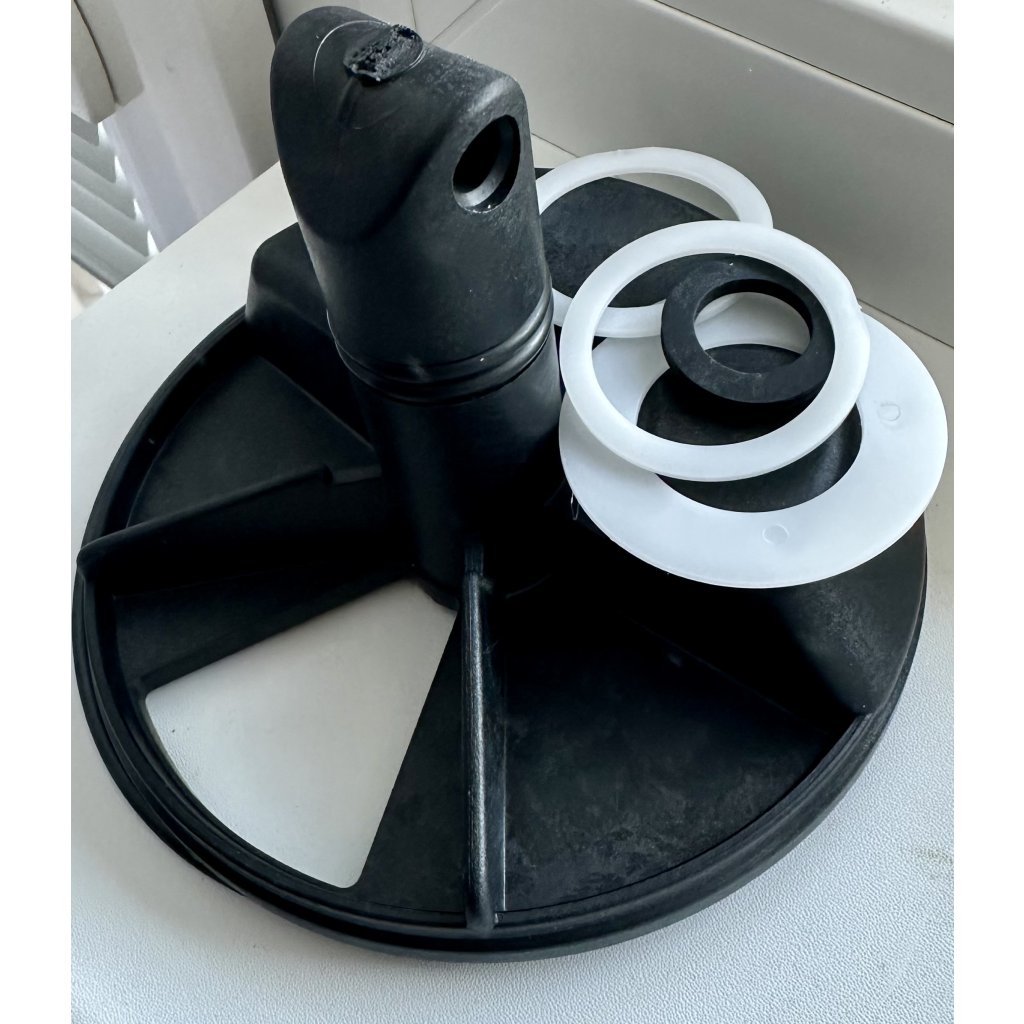

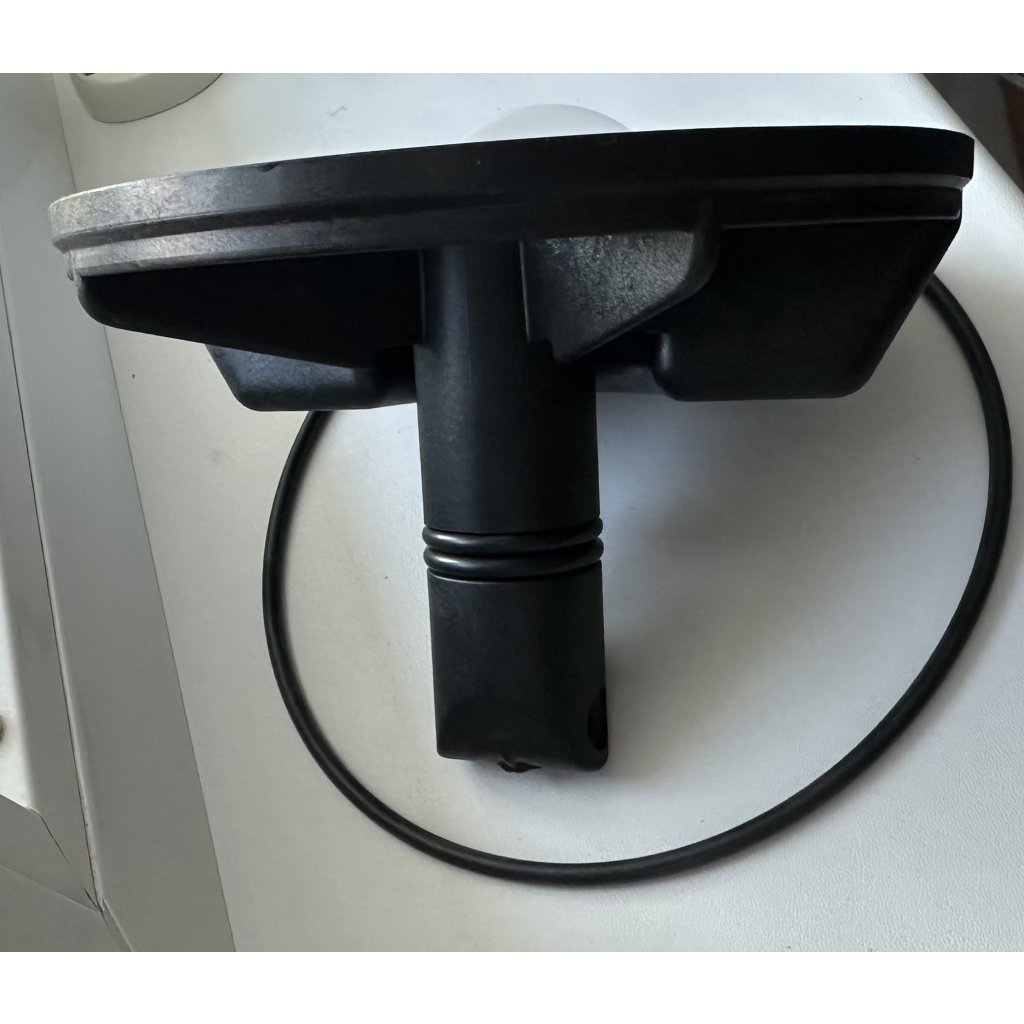

Spare rotor with seal for Azur hex valve including seal!

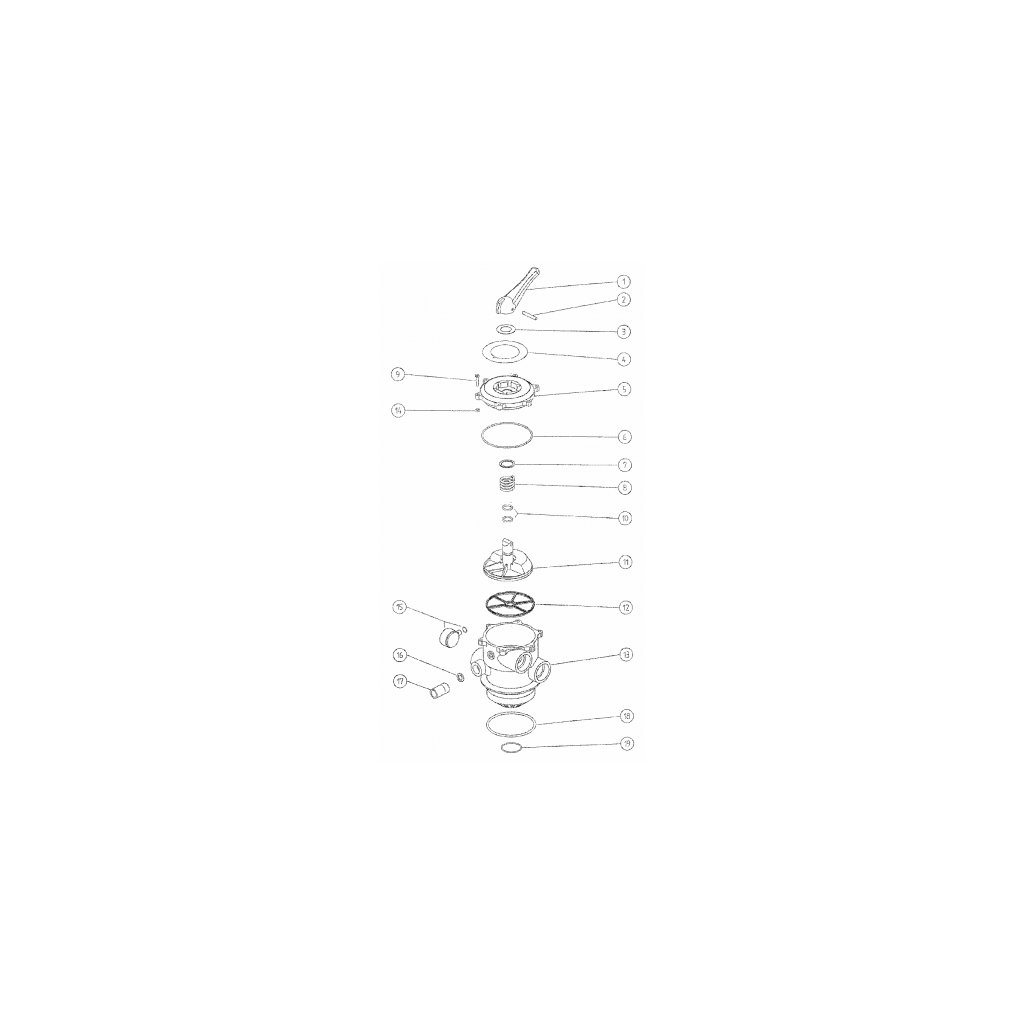

In drawing part 11+12 glued together
Replacement is done with a screwdriver and a hammer. You put the lever in the intermediate position, knock out the axle, unscrew the six screws on the top of the valve.
Then you insert the new hat, punch a hole in the filter position and insert the washer, this will ensure that you don't have the lever backwards.
| Hat dimensions | Dimensions |
|---|---|
| Base diameter | 133 mm |
| Outer seal diameter (cutting edge) | 125 mm |
| Inner seal diameter (cutting edge) | 28 mm |
| Total height | 95 mm |
| Pin hole diameter | 8 mm |
| Shaft diameter | 27 mm |
AZUR KIT 300,380,480 and 560, the earlier version in blue can also use the valve:
Azur 660
Pool Specialist Opinion - Review
- + Easy installation
- + High compatibility with Azur models
- + Quality materials and seals
- + Efficient and long-lasting performance
"This replacement rotor provides efficient and reliable filtration with easy installation and excellent compatibility."
Team Poolservice
Resistant and reliable rotor
This replacement rotor is designed for long-term reliability and maximum durability. Its robust construction ensures that the rotor will withstand long-term use without signs of wear.
Easy installation
Installing the rotor is straightforward and requires no special tools. Simply remove the axle with a screwdriver and hammer, loosen the screws and replace the old rotor with a new one.
The rotor is universal and compatible with a wide range of Azur filtration models, including popular series such as the AZUR KIT 300, 380, 480, 560, 660, and is also suitable for use in selected Mountfield products. This makes it an ideal choice for a variety of pool systems.
High efficiency and performance
Thanks to its precise design and high-quality seals, the rotor ensures optimal performance of the filtration system. It is designed to provide efficient filtration and minimise the risk of water leakage.
Installation notes
When installing the rotor, it is important to ensure that the hole in the rotor points towards the filtration. This will ensure that the lever is correctly positioned and the system will operate efficiently.
Customer Reviews
According to customer feedback, this replacement rotor is highly rated for its durability, ease of installation and high compatibility with various filtration models. Customers appreciate that a quality gasket is included in the package, eliminating the need for additional purchases.
Cap
The Azur Hex Valve Rotor with Seal is an excellent choice for those looking for a reliable, long-lasting solution for their pool filtration system. With its easy installation, high compatibility and quality workmanship, it is a product that will meet the expectations of the most demanding users.
Additional parameters
| Category: | Sand filtration + sand |
|---|---|
| Weight: | 0.3 kg |
| Značka: | Pentair Pool Products |
