Installation material, Page 6

PVC adapter - bonding coupling - external thread. On one side for gluing 63mm pipe (or 75mm on the outside) on the other side external thread 2 1/2". For connecting pool...

PVC adapter - bonding coupling - external thread. On one side for gluing 63mm pipe (or 75mm on the outside) on the other side external thread 2". For connecting pool...

Cap for screwing onto 1 1/4" = 5/4 "thread Made in Spain Parameter Value Outer width 50 mm Height 33 mm Thread 38 mm

Cap for screwing onto 2" = 8/4 "thread Made in Spain Parameter Value Outer width 75 mm Height 45 mm Scroll 58mm

PVC reducer - insert it into a 50mm or 40mm elbow/T-joint/coupling, and the other side has a 1 1/4" thread. Specification Dimensions Thread 1 1/4" Inner...

Specifications Detail Inner diameter 20 mm Height 22 mm

Specifications Detail Inner diameter 25mm Height 25mm

PVC insertable adapter - you insert it into the knee/piece/muffle 90mm and put 63mm into the other side Specifications Dimensions Height 50 mm Inner...

On both sides 1 and 1/4" (5/4") male thread. For connecting pool accessories such as pool pumps, solinators, uv-lamps or filter vessels. Description Dimension...

Gluing/bonding connection. Specifications Dimensions Inner diameter 63 mm Outer diameter 77 mm Total length of t-piece 145 mm Depth for...

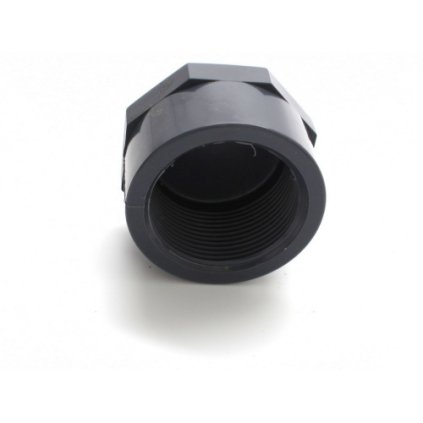

Made in Spain Cap for screwing into the thread - for example puk 3/8", we recommend to pack the thread with teflon tape. Specifications Detail Hang out 3/8"...

PVC adapter - gluing 50mm - internal thread On one side for gluing into 50mm fittings - sockets, elbows, but most often T-piece (tee) 50mm  on the other side the internal...

Passage piece has diameter 63mm on both sides, side outlet 50mm Gluing/bonding connection. Dimensions below
