Shaft (Stem) Seal for Rotor – 6-Way Valve AZUR TOP 1.5"

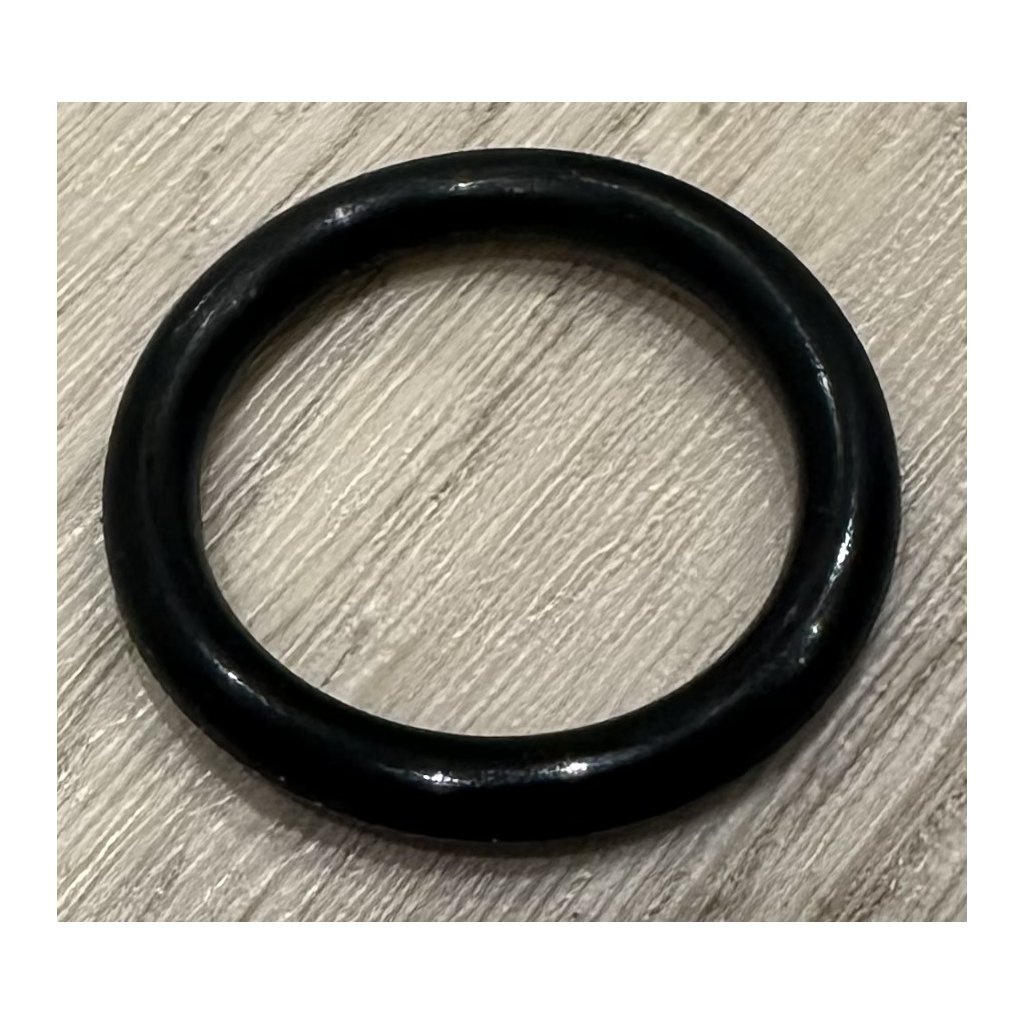

Shaft (stem) seal for the rotor – for a complete replacement you need 2 pieces.
This seal is replaced when the valve leaks around the handle.
Part no. 10 on the diagram
| Parameter | Value |
|---|---|
| Inner diameter | 2.1 cm |
| Seal thickness | 3.5 mm |
Replacement procedure: Use a screwdriver and a hammer. Set the valve handle to the middle position, knock out the pin, and unscrew the six screws on the top of the valve.
Then remove the old seals, insert the new ones, and reinstall the pin.
Pool Specialist’s Opinion – Review
- + Essential seal for proper operation of a multiport valve
- + Simple and fast replacement
- + Prevents water leakage around the valve handle
- + Long service life thanks to durable material
- - For a complete repair, both seals must always be replaced
“The rotor shaft seal is a small but crucial component of any multiport valve. If the valve leaks around the handle, this seal is usually the cause. Replacing it is easy and significantly extends the valve’s overall lifespan.”
Poolservis Team
Why is this seal important?
The rotor shaft seal prevents water from leaking around the handle of the multiport valve. When it becomes worn, water begins to seep into the handle area, making replacement essential for restoring proper valve function. For a complete repair, you always need 2 pieces.
Easy replacement without special tools
Replacing the seal can be done by any skilled user. The procedure is simple:
- Set the valve handle to the middle position.
- Use a screwdriver and a hammer to knock out the pin.
- Unscrew the six screws on the top part of the valve.
- Remove the old seals and insert the new ones.
- Reinsert the pin and reassemble the valve.
Seal dimensions
| Parameter | Value |
|---|---|
| Inner diameter | 2.1 cm |
| Seal thickness | 3.5 mm |
Long service life and reliability
The seal is made from high-quality elastomer, resistant to pressure and pool chemicals. With proper valve maintenance, it provides long-term reliability and effectively prevents water leaks.
Additional parameters
| Category: | Six-way valves |
|---|---|
| Weight: | 0.3 kg |
| Značka: | Pentair Pool Products |
