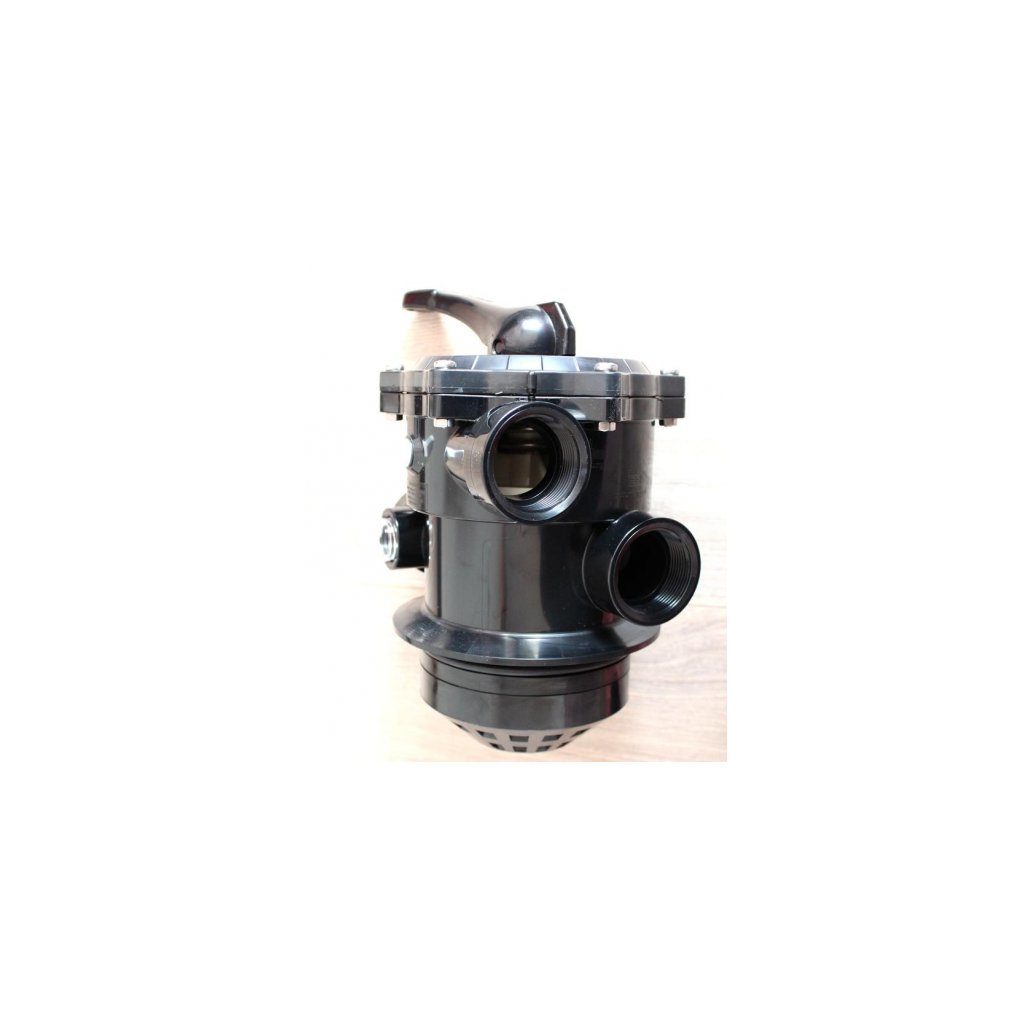

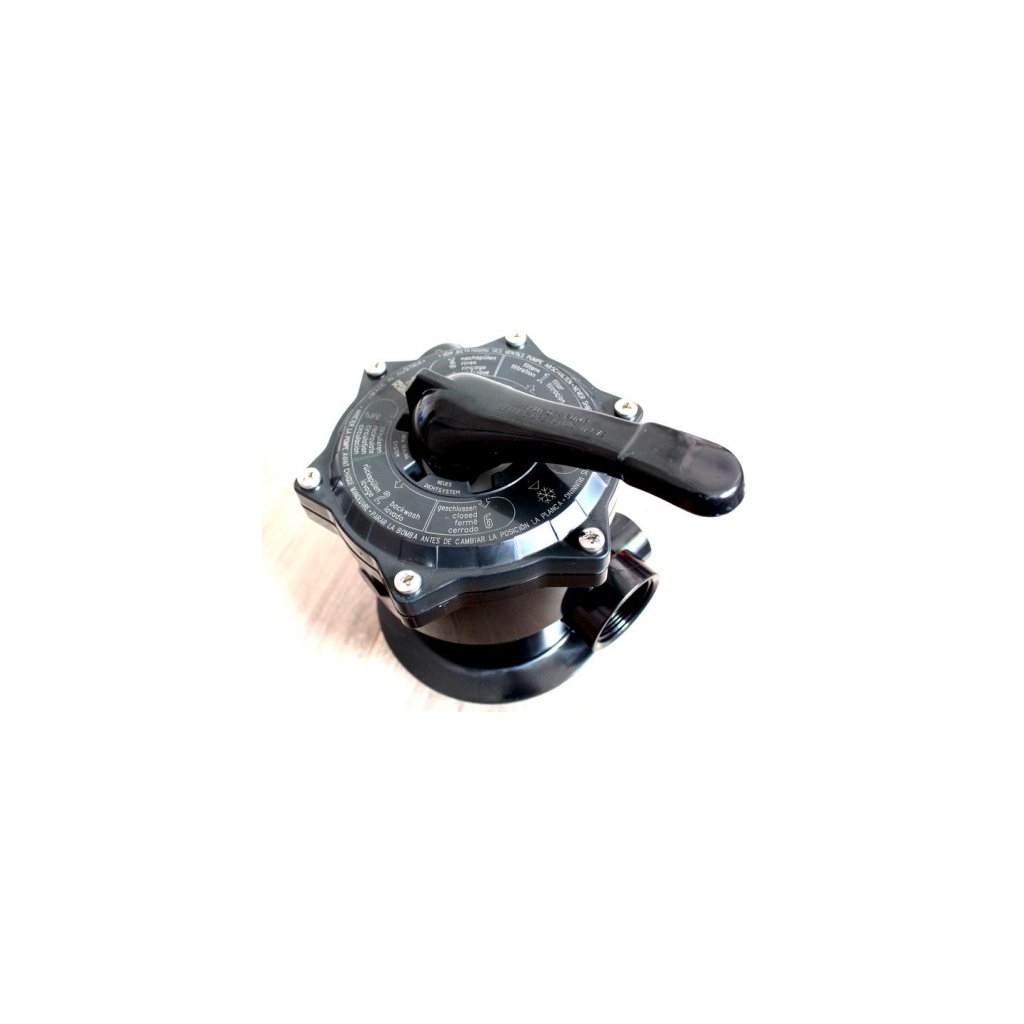

Replacement rotor with seal for Azur TOP 1.5" 6-way valves

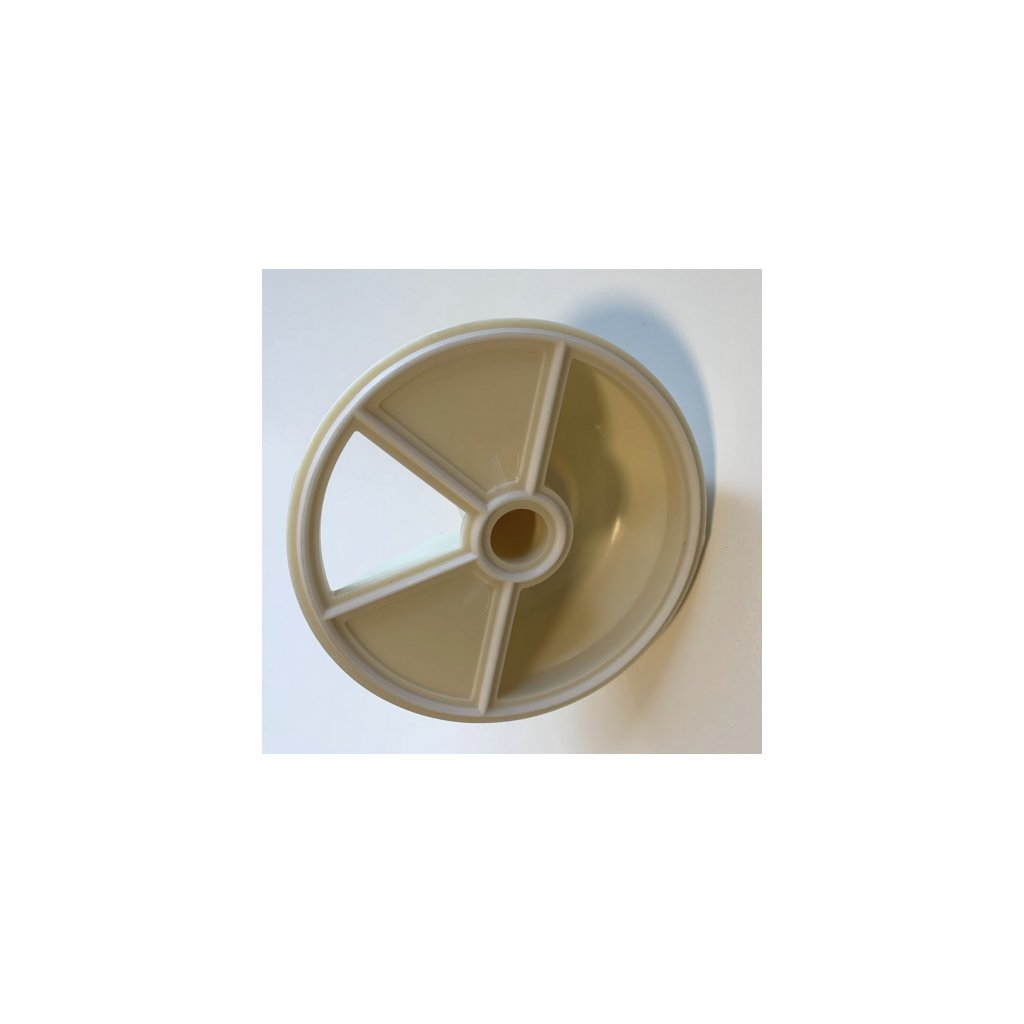

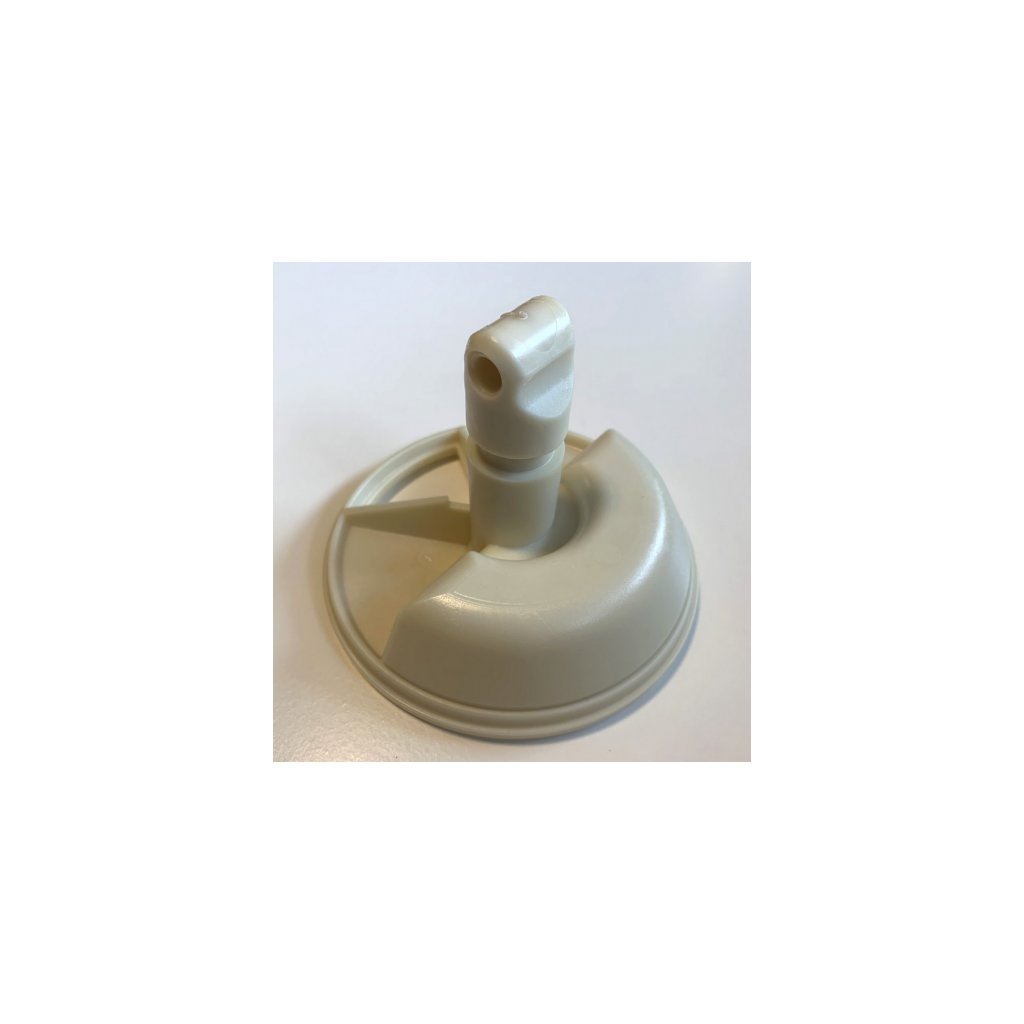

Replacement rotor for the Azur 1.5" TOP 6-way valve, including the seal.

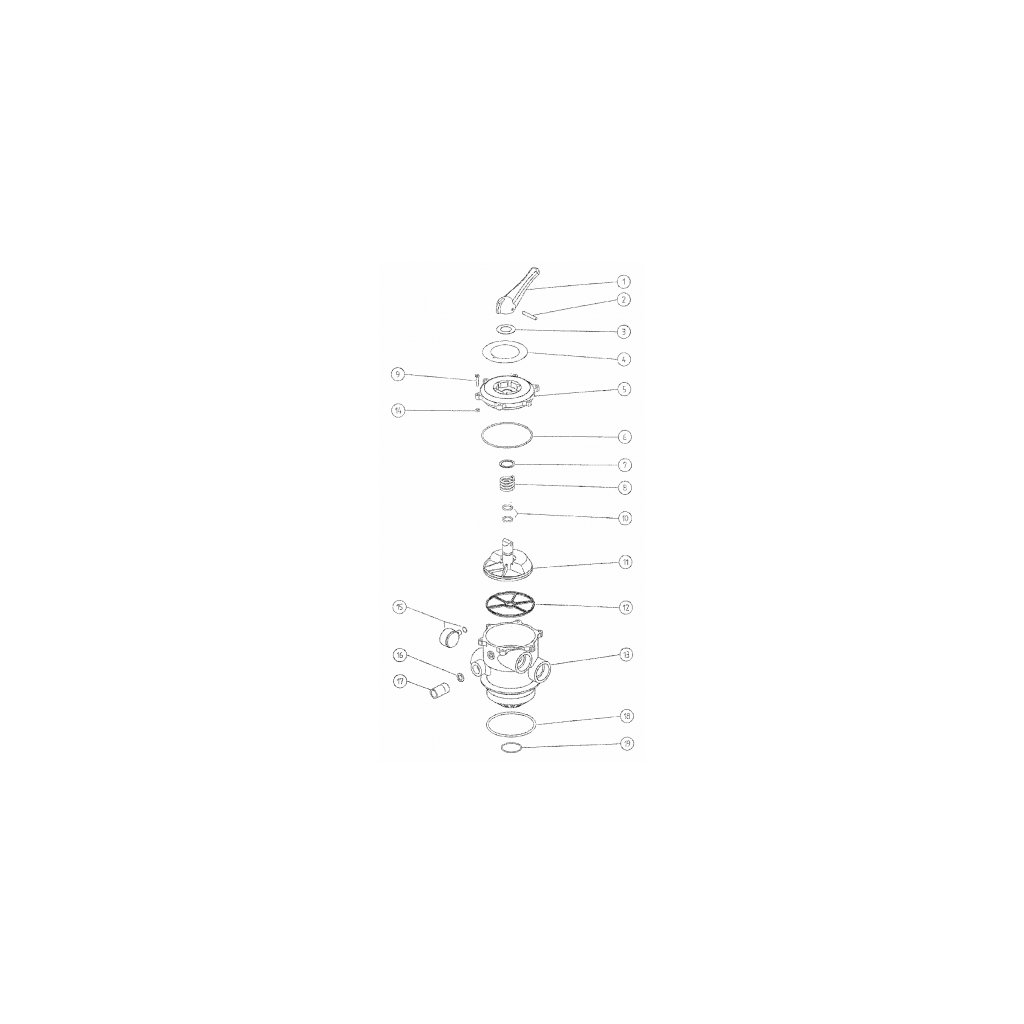

Parts 11 and 12 in the diagram, bonded together.
The seal is not available separately; replace the rotor and seal assembly to repair leakage caused by a worn seal.
See the video below for replacement instructions for different valve types.
Replacement requires a screwdriver and a hammer. Move the handle to an intermediate position, drive out the retaining pin and undo the six screws at the top of the valve.
Fit the new rotor with its opening aligned with the filtration position, then refit the retaining pin. This ensures that the handle is not fitted the wrong way round.
| Rotor dimensions | Dimensions |
|---|---|
| Base diameter | 133 mm |
| Outer seal diameter (sealing lip) | 125 mm |
| Inner seal diameter (sealing lip) | 28 mm |
| Total height | 95 mm |
| Pin hole diameter | 8 mm |
| Shaft diameter | 27 mm |
AZUR KIT 300,380,480 and 560, the earlier version in blue can also use the valve:
Azur 660
Pool Specialist Opinion - Review
- + Easy installation
- + High compatibility with Azur models
- + Quality materials and seals
- + Efficient and long-lasting performance
"This replacement rotor provides efficient and reliable filtration with easy installation and excellent compatibility."
Poolservis team
Durable and reliable rotor
This replacement rotor is designed for long-term reliability and maximum durability. Its robust construction ensures that the rotor will withstand long-term use with good resistance to normal wear.
Easy installation
Installing the rotor is straightforward and requires no special tools. Simply remove the retaining pin with a screwdriver and hammer, loosen the screws and replace the old rotor with a new one.
The rotor is universal and compatible with a wide range of Azur filtration models, including popular series such as the AZUR KIT 300, 380, 480, 560, 660, and is also suitable for use in selected Mountfield products. This makes it an ideal choice for a variety of pool systems.
High efficiency and performance
Thanks to its precise design and high-quality seals, the rotor ensures optimal performance of the filtration system. It is designed to provide efficient filtration and minimise the risk of water leakage.
Installation notes
When installing the rotor, it is important to ensure that the hole in the rotor points towards the filtration. This will ensure that the lever is correctly positioned and the system will operate efficiently.
Customer Reviews
According to customer feedback, this replacement rotor is highly rated for its durability, ease of installation and high compatibility with various filtration models. Customers appreciate that a quality gasket is included in the package, eliminating the need for additional purchases.
Replacement rotor with seal
The Azur 6-way valve rotor with Seal is an excellent choice for those looking for a reliable, long-lasting solution for their pool filtration system. With its easy installation, high compatibility and quality workmanship, it is a product that will meet the expectations of the most demanding users.
Additional parameters
| Category: | Sand filtration + sand |
|---|---|
| Weight: | 0.3 kg |
| Brand: | Pentair Pool Products |
