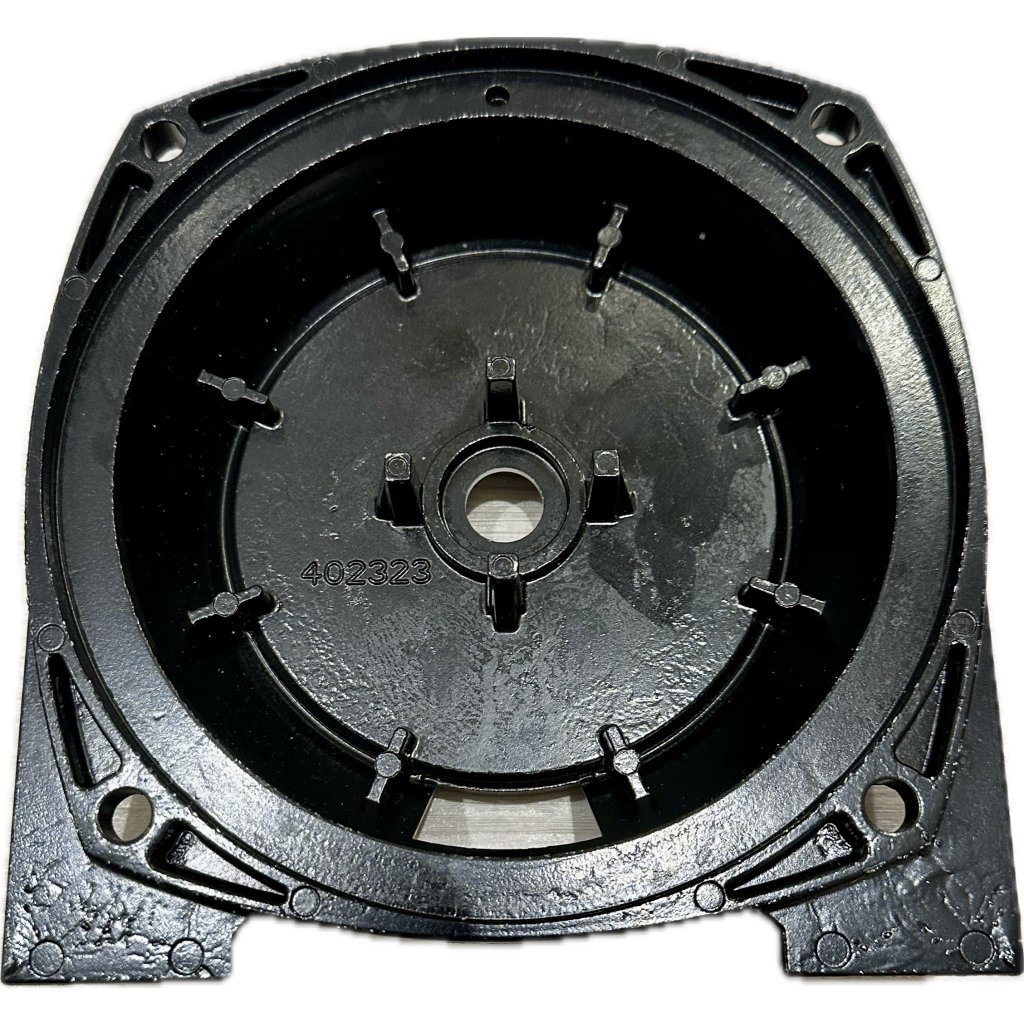

Aluminum pump flange Preva 25, 33, 50
Dimensions and technical details
| Width | 18 cm |
|---|---|
| Height | 18,5 cm |
| Thickness | 5 cm |
This structural plate or flange connects the corresponding parts of the pump assembly and supports their correct alignment. Its exact location is identified in the parts diagram.
Part code: S92401052
Dimensions and technical details
| Width | 18 cm |
|---|---|
| Height | 18,5 cm |
| Thickness | 5 cm |
Aluminum pump flange Preva 25, 33, 50
The front motor flange connects the corresponding motor to the hydraulic section of the pump.
Pool technician’s advice
Distinguish the flange for Preva 25/33/50 from the one for Preva 75/100. A similar shape is insufficient; the model and part code must match.
What to check before ordering
An end cover or flange provides the specified connection and support within the pump assembly. Inspect adjacent parts if it is damaged. A hydraulic seal plate and a rear motor end cover serve different purposes.
Compatibility and part identification
| Part code | S92401052 |
|---|---|
| Preva models | Preva 25, 33, 50 |
| Diagram position | 18 |
How to choose the correct version
Compare the original fixing holes, seats and mating surfaces. Distinguish motor size and old or new versions. A matching pump name does not confirm interchangeability of all end covers or flanges.
When to replace the part
Replace a cracked, distorted or mechanically damaged part. Compare mounting spacing, bearing or seal seating and the original part code.
Important points when replacing the part
We recommend professional replacement, especially when the motor or mechanical seal must be dismantled. Inspect adjacent seats and seals during repair. After assembly, check alignment, free movement and sealing as appropriate to the location.
Version details
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Using the exploded diagram
The listed position refers to the corresponding assembly diagram. The arrow helps locate the part; for some small components it marks only the fitting area. Compare the original part, its code and the specific pump version before ordering. You are ordering the item named in this listing, not the complete assembly in the diagram.
Related spare parts guides
Need help identifying the part
Email info@chemie-bazen.cz with photographs of the original part and the pump rating plate. Include measured dimensions and the fitting location to help identify the correct version.
Additional parameters
| Category: | Preva pump spare parts – 25, 33, 50, 75, 100 |
|---|---|
| Weight: | 1 kg |
| Druh dílu: | Motor a upevnění |
| Kód náhradního dílu: | S92401052 |
| Kompatibilní řada: | Preva |
| Pozice v rozkresu: | 18 |
| Product type: | Náhradní díl |
| Vhodné pro model: | Preva 25, 33, 50 |
| Brand: | Vagnerpool |
