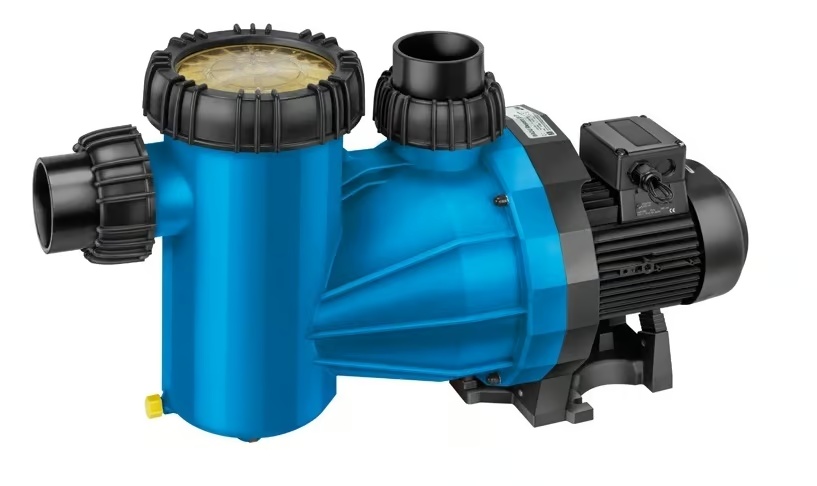

Spare parts for BADU Resort 30–55
Spare parts for BADU Resort 30–55
Find the correct part using its position in the original exploded view, catalogue code and pump version. Check the rating and generation before ordering: similar-looking parts may differ.

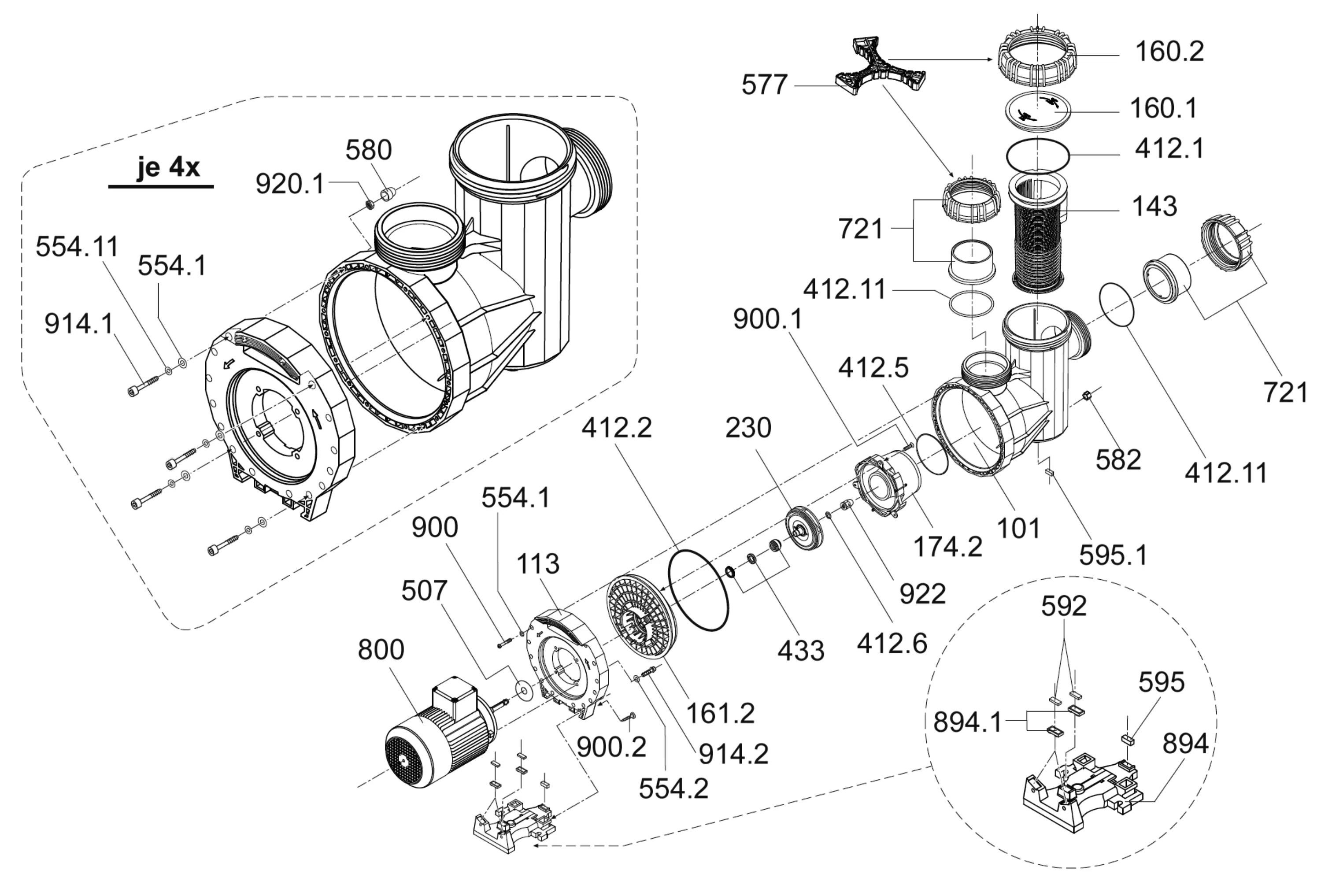

Click the drawing to view it at full size. The numbers correspond to positions in the parts list.
No matching parts. Try a shorter name or the catalogue code.
Strainer lids, baskets and housings
| Position | Spare part | Selection |
|---|---|---|
| 143 | Strainer basket RESORTPart code: 2902014300 | Match the code and pump version |
| 160.1 | Pump strainer lid RESORT ClearPart code: 2902016010 | Match the code and pump version |
Impellers, diffusers and seal plates
| Position | Spare part | Selection |
|---|---|---|
| 113 | Pump seal plate BADU RESORTPart code: 2902016121 | Match the code and pump version |
| 230 | Impeller BADU RESORT 40, D=121, B=12,5Part code: 2902023002 | D = 121 mm; B = 12,5 mm |
Seals and mechanical seals
| Position | Spare part | Selection |
|---|---|---|
| 412.1 | Strainer lid seal BADU RESORTPart code: 2902041210 | Match the code and pump version |
| 412.2 | Pump housing seal BADU RESORTPart code: 2902041220 | Match the code and pump version |
| 412.11 | Seal BADU RESORT 30-45 98X5MMPart code: 2921141255 | 98 × 5 mm |
| 412.5 | Seal BADU 40/RESORT 50-110 123X5,3MMPart code: 2920341210 | 123 × 5,3 mm |
| 412.51 | Diffuser extension seal BADU 90/25-48Part code: 2902041251 | Match the code and pump version |
| 412.6 | Impeller nut O-ringPart code: 2923541222 | Match the code and pump version |
| 433 | Mechanical seal 20MMPart code: 2920343310 | 20 mm |
Unions and other parts
| Position | Spare part | Selection |
|---|---|---|
| 721 | Union nut 75MM+90MM RESORTPart code: 2902072111 | 75 mm |
| 721 | Union tailpiece 75MM union RESORT 30Part code: 2902072105 | 75 mm |
| 721 | Union tailpiece 90MM union RESORT 40+45Part code: 2902072101 | 90 mm |
| 721 | Union tailpiece 110MM union RESORT 50+55Part code: 2902072103 | 110 mm |
| 721 + 412. | Union 90MM RESORT 40+45 2 pcsPart code: 2902072122 | 90 mm |
The drawing also shows components not offered separately here. The contents of each item are specified on its product page. If unsure, send us a photo of the original part and pump nameplate.
