Find the correct part using its position in the original exploded view, catalogue code and pump version. Check the rating and generation before ordering: similar-looking parts may differ.
This guide covers the 2023 Big Discovery version. Do not select parts from the earlier version by appearance alone.
No matching parts. Try a shorter name or the catalogue code.
Strainer lids, baskets and housings
| Position | Spare part | Selection |
|---|---|---|
| 4 | Strainer basket BIG DYPart code: ISP050063 | Match the code and pump version |
| 9 | Strainer housing BIG DICOVERYPart code: ISP050067 | Match the code and pump version |
Impellers, diffusers and seal plates
| Position | Spare part | Selection |
|---|---|---|
| 17 | Impeller and nut NEWBCC400T-MPart code: ISP050078 | Match the code and pump version; replaces IHD051150 |
| 17 | Impeller and nut NEWBCC500T-MPart code: ISP050080 | Match the code and pump version |
Seals and mechanical seals
| Position | Spare part | Selection |
|---|---|---|
| 2 | Strainer lid and seal BIG DISCOVERYPart code: ISP050061 | Match the code and pump version; replaces IHD006035 |
| 6 | Pump union sealBIG DISCOVERYPart code: IHD021165 | Match the code and pump version |
| 8 | Drain plug and seal NEWBCCPart code: ISP040008 | Match the code and pump version; replaces IHD036000 |
| 12 | Pump union sealNEWBCCPart code: IHD021125 | Match the code and pump version |
| 18 | Mechanical seal NBCC + BCCPart code: IHD056010 | Match the code and pump version |
| 19 | Housing seal NEWBCC + BDPart code: IHD021095 | Match the code and pump version |
| 20 | Seal plate and seal NEWBCCPart code: ISP050084 | Match the code and pump version; replaces IHD061040 |
Unions and other parts
| Position | Spare part | Selection |
|---|---|---|
| 7 | Suction union BIG DISCOVERY 350TPart code: ISP050066 | Match the code and pump version |
| 13 | Pump unionNEWBCC completePart code: ISP050071 | Match the code and pump version; replaces IHD076030, IHD076025 |
| 26 | Water shield NEWBCC,CALAPart code: IMT001015 | Match the code and pump version |
The drawing also shows components not offered separately here. The contents of each item are specified on its product page. If unsure, send us a photo of the original part and pump nameplate.
Product sorting
List of products
Listing controls

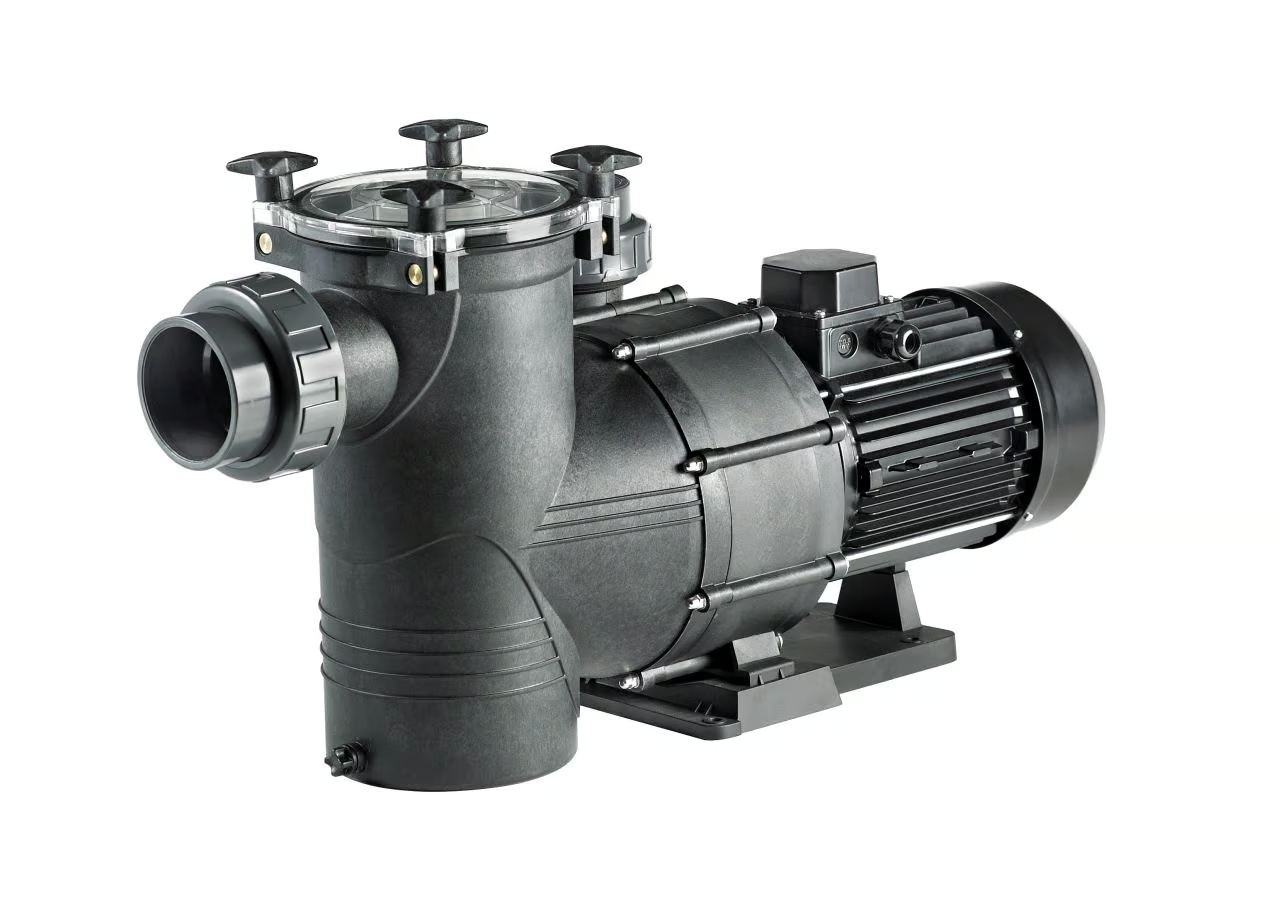

Spare parts for Big Discovery 2023

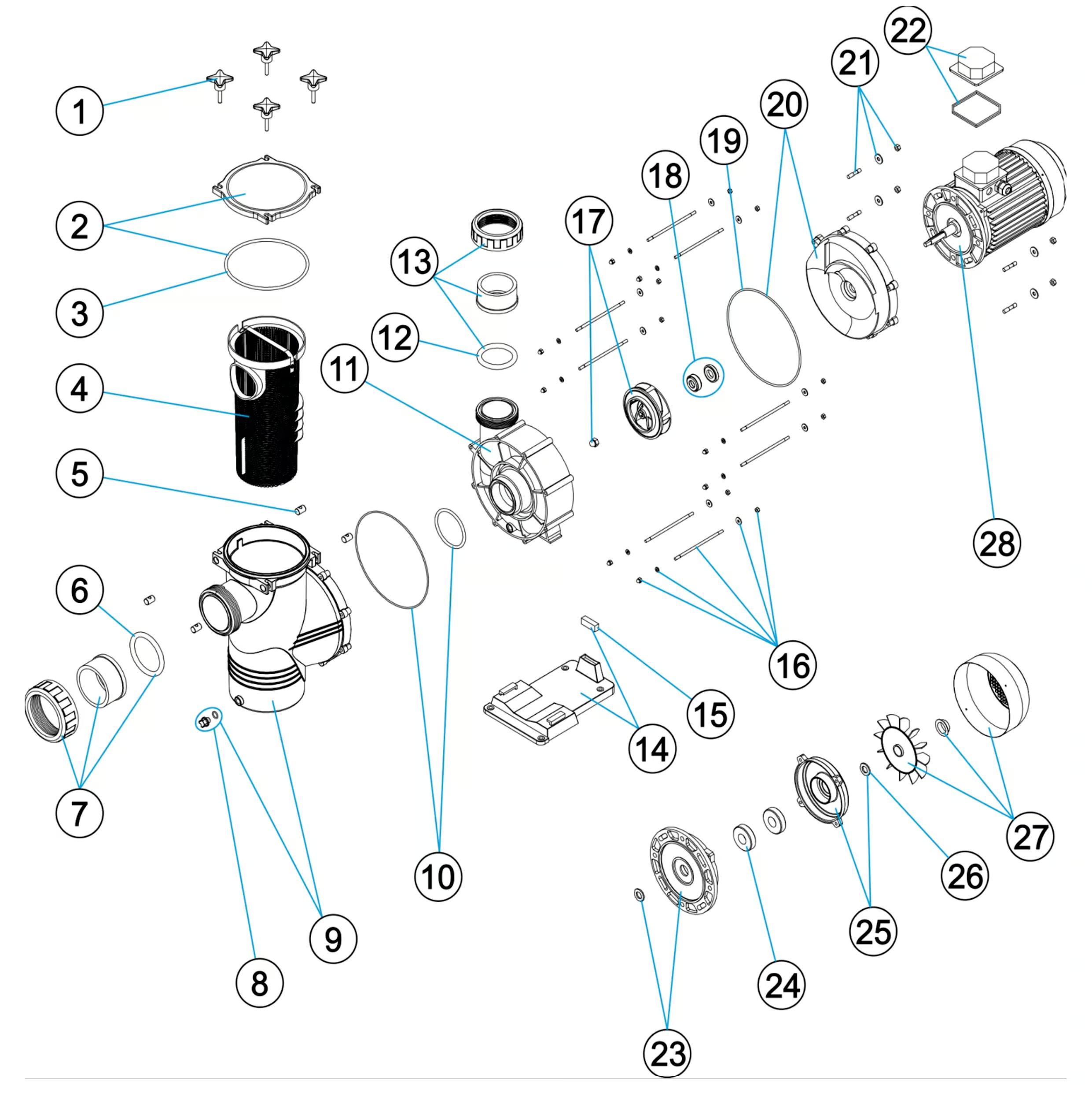

The Big Discovery 2023 version has its own exploded parts diagram. The pump nameplate and the markings on the original component help identify the right part. The purchase date does not necessarily identify the design generation.
Strainer lid, basket and housing
Lid ISP050061 comes with a seal. Basket ISP050063 and strainer housing ISP050067 are separate parts, so you can replace just the damaged component.
Impellers and connections
Impellers supplied with a nut vary by pump model. Choose the correct version using the order code in the diagram. Connection parts also depend on the design of the original joint.
If your pump looks different, see the older Big Discovery version. Photos of the nameplate, the complete pump and the damaged component will help us identify a replacement.
Frequently asked questions
Is ISP050061 just a seal?
No, it is a lid with a seal.
Is the position number in the diagram enough to order a part?
Please include the order code as well. Position numbers can differ between generations.
