Zodiac eXO cell power cable
Diagram position: 6
Connects the eXO control unit to the cell. It has a different reference from the TRi cable; compare the original connectors and wiring before replacement.
Catalogue reference: WR0822500.
Pool specialist’s view
Connects the eXO control unit to the cell. Inspect the cable and both mating connections when troubleshooting. A damaged connector or contact may be a separate fault; a new lead will not repair a damaged socket or another component.
Zodiac eXO cell power cable
Connects the eXO control unit to the cell. It has a different reference from the TRi cable; compare the original connectors and wiring before replacement.
Identification and selection
Diagram position: 6
Catalogue reference: WR0822500
Replacement and checks
Switch off and disconnect power before servicing. Have a qualified technician diagnose and replace electrical components, compare the wiring, connector version and specific unit revision, and verify correct operation afterwards.
If unsure about the version, send photos of the original component and equipment label to info@chemie-bazen.cz.
Position in the assembly

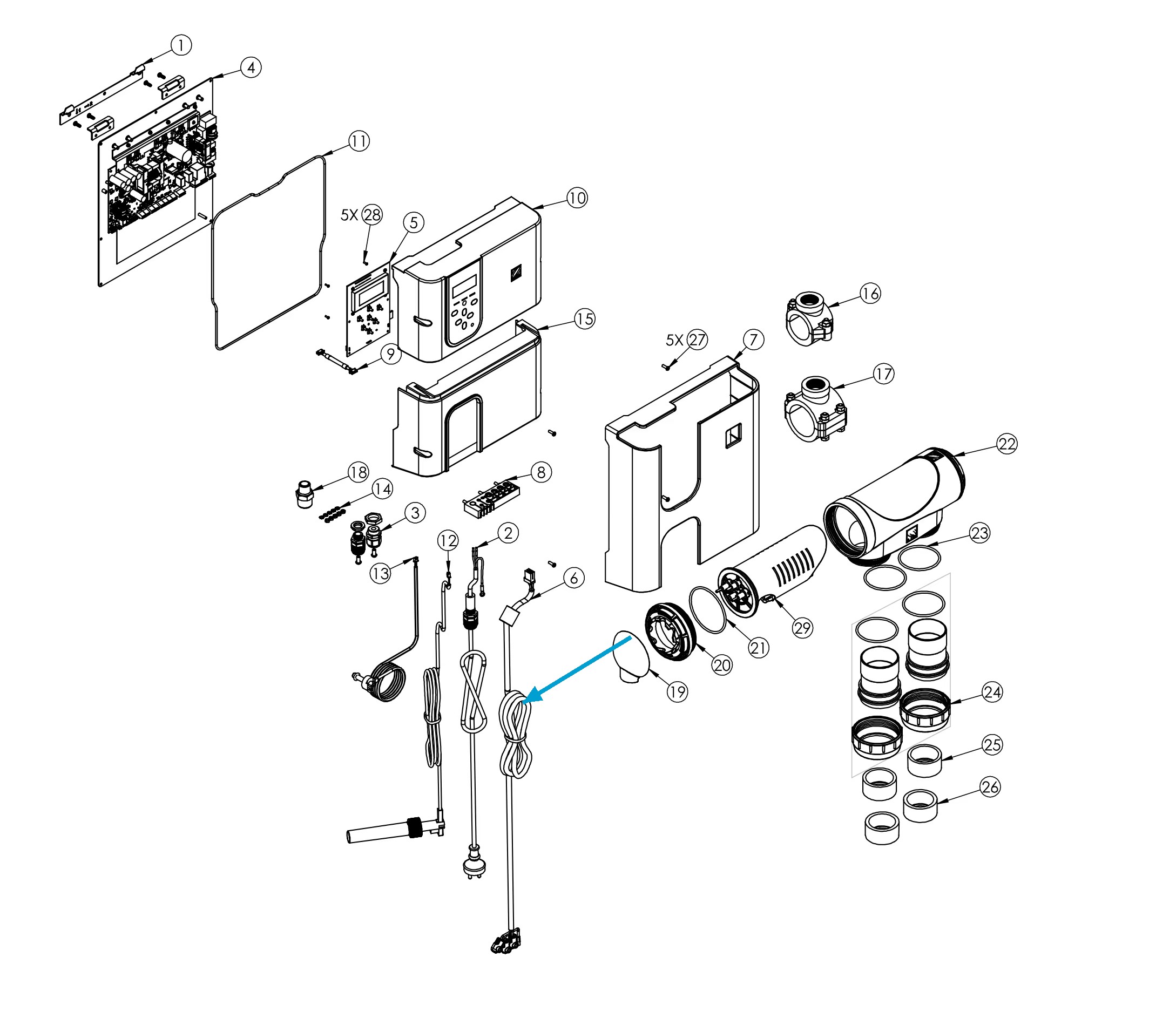

The blue arrow identifies the component in the original drawing. The unmarked original is retained in the gallery.
Choosing this part correctly
Match the cable application, ends, device model and generation. A cell lead, supply cable and display connection are different parts. Treat length as confirmed only where expressly stated.
What to check during replacement
Route the lead without straining connectors and follow the manufacturer instructions. After connection, test the component function rather than relying only on a mechanical fit.
