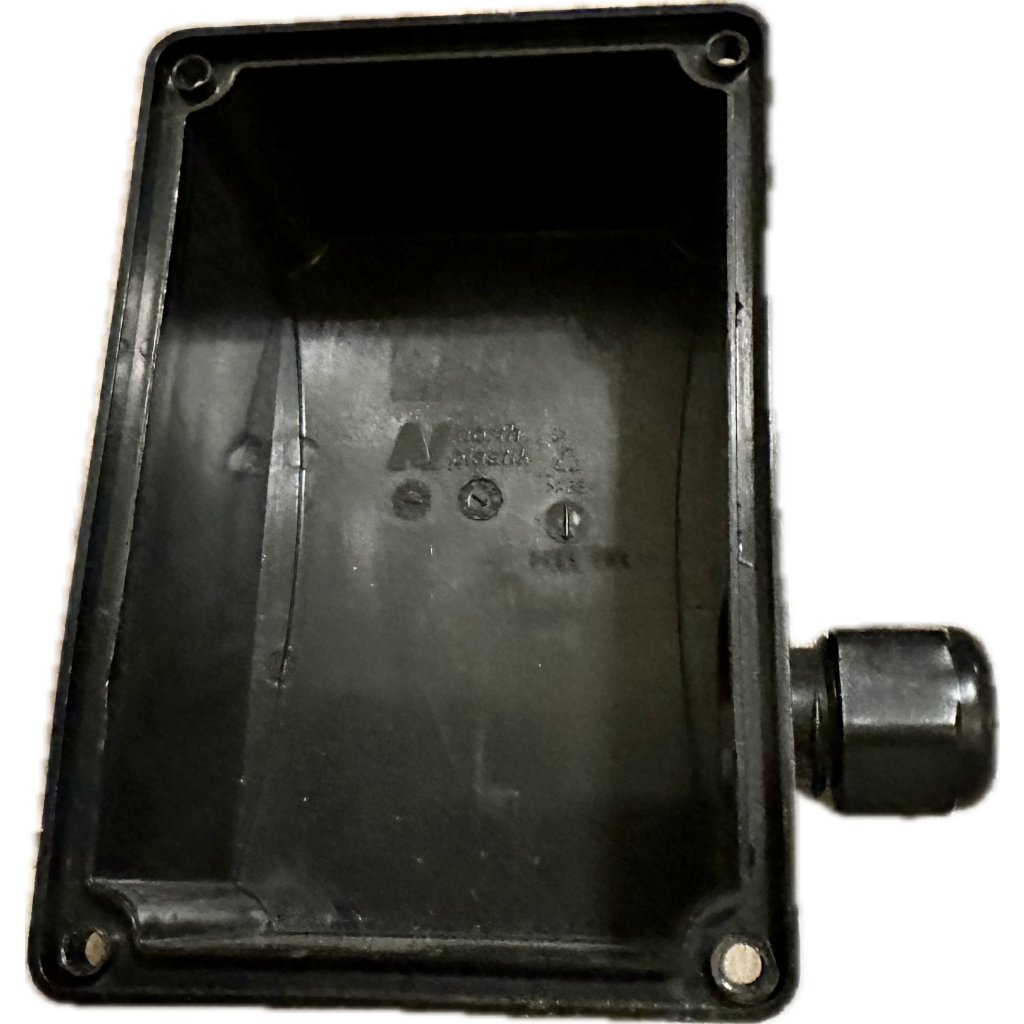

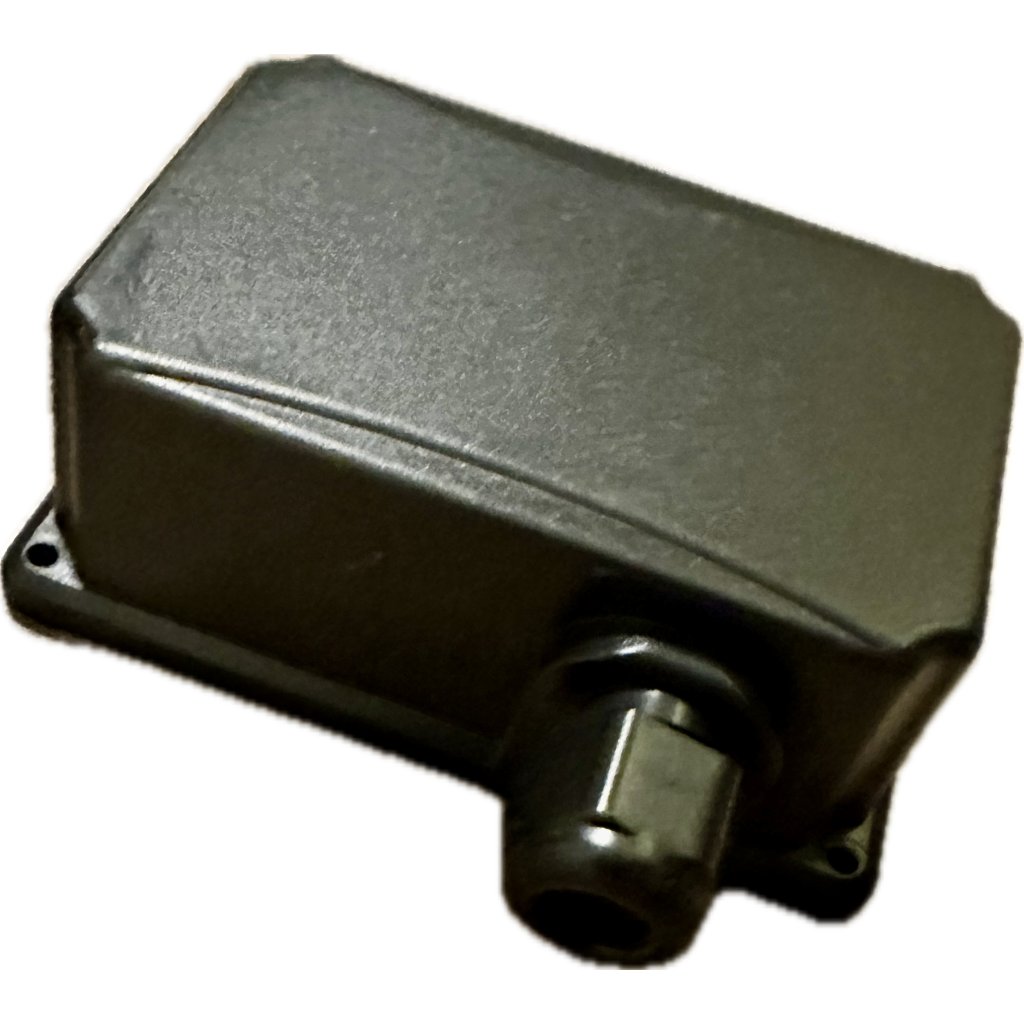

Complete terminal box enclosure for Preva 25, 33 and 50 pumps
Dimensions and technical details
| Diameter | 117 mm |
|---|---|
| Height | 78 mm |
This component closes or forms the motor terminal box. Its shape, screw spacing and sealing arrangement must match the original motor version.
Part code: S92401077
Dimensions and technical details
| Diameter | 117 mm |
|---|---|
| Height | 78 mm |
Complete terminal box enclosure for Preva 25, 33 and 50 pumps
Terminal box enclosure assembly for the corresponding Preva motor version. Vágner lists it as the complete assembly of positions 24, 26 and 28.
Pool technician’s advice
Compare the original motor and mounting spacing before ordering. A separate version exists for other motor sizes; do not choose solely by a similar photo.
What to check before ordering
The lid is part of the motor’s electrical terminal enclosure. Cracks and distortion can prevent proper closure. Inspect the gasket and lower box as well so the underlying problem is addressed.
Compatibility and part identification
| Part code | S92401077 |
|---|---|
| Preva models | Preva 25, 33, 50 |
| Diagram position | 24 / 26 / 28 |
How to choose the correct version
Compare the original terminal-box size, fixing spacing and design. A lid alone is not a complete enclosure with base, cable entries or wiring.
When to replace the part
Replaces a damaged enclosure assembly; suitable when the housing or lid is cracked or the assembly seal is damaged.
Important points when replacing the part
Have a qualified technician repair the terminal box. Wires and gasket must not be trapped during assembly. The electrical section must be checked for safe condition before reconnection.
Version details
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Using the exploded diagram
The listed position refers to the corresponding assembly diagram. The arrow helps locate the part; for some small components it marks only the fitting area. Compare the original part, its code and the specific pump version before ordering. You are ordering the item named in this listing, not the complete assembly in the diagram.
Related spare parts guides
Need help identifying the part
Email info@chemie-bazen.cz with photographs of the original part and the pump rating plate. Include measured dimensions and the fitting location to help identify the correct version.
Additional parameters
| Category: | Spare parts for pool pumps |
|---|---|
| Weight: | 0.05 kg |
| Druh dílu: | Motor a upevnění |
| Kód náhradního dílu: | S92401077 |
| Kompatibilní řada: | Preva |
| Pozice v rozkresu: | 24 / 26 / 28 |
| Product type: | Náhradní díl |
| Vhodné pro model: | Preva 25, 33, 50 |
| Brand: | Vagnerpool |
