AVfol Master Pool Liner – Sand, 165 cm, Roll 41.25 m²
The AVfol Master is made from multi-layer PVC with woven reinforcement, providing high strength, dimensional stability and resistance to mechanical stress. The top protective lacquer protects the liner against UV radiation, pool chemicals and material ageing.
Liner thickness: 1.5 mm
Roll dimensions: 1.65 m × 25 m (41.25 m²)
Manufacturer product code: 98805165R25
Pool specialist opinion
- High mechanical resistance and long service life
- Multi-layer construction with woven reinforcement
- Suitable for residential and commercial pools
- Good weldability and easy handling
- We recommend installation by a specialist company
“AVfol Master is a proven pool liner that we have used for many years in new pools and renovations. Its combination of strength, flexibility and protective layers offers very good value in terms of price, service life and appearance.”
Poolservis team
Quality pool liner with a long service life
The AVfol Master is made from multi-layer PVC with woven reinforcement, providing high strength, dimensional stability and resistance to mechanical stress. The top protective lacquer protects the liner against UV radiation, pool chemicals and material ageing.
From practical experience, correct installation and maintenance typically provide a service life of typically 15–20 years. The material is designed to withstand temperature fluctuations (summer heat and winter frost) and prolonged exposure to water.
Let us calculate your pool liner requirements
Send us the pool dimensions (length, width and depth), shape, and details of steps, benches or overflow channels. We will prepare:
- a clear calculation of the required liner length
- a cutting plan for individual strips
- an indicative recommendation for the number of rolls
See the sample liner cutting plan below.
We usually reply within one working day.
Email us at: info@chemie-bazen.cz
Modern sand water appearance
The sand-coloured liner gives the water a fresh, clean appearance. The colour looks natural, ages well and retains its attractive tone over time.

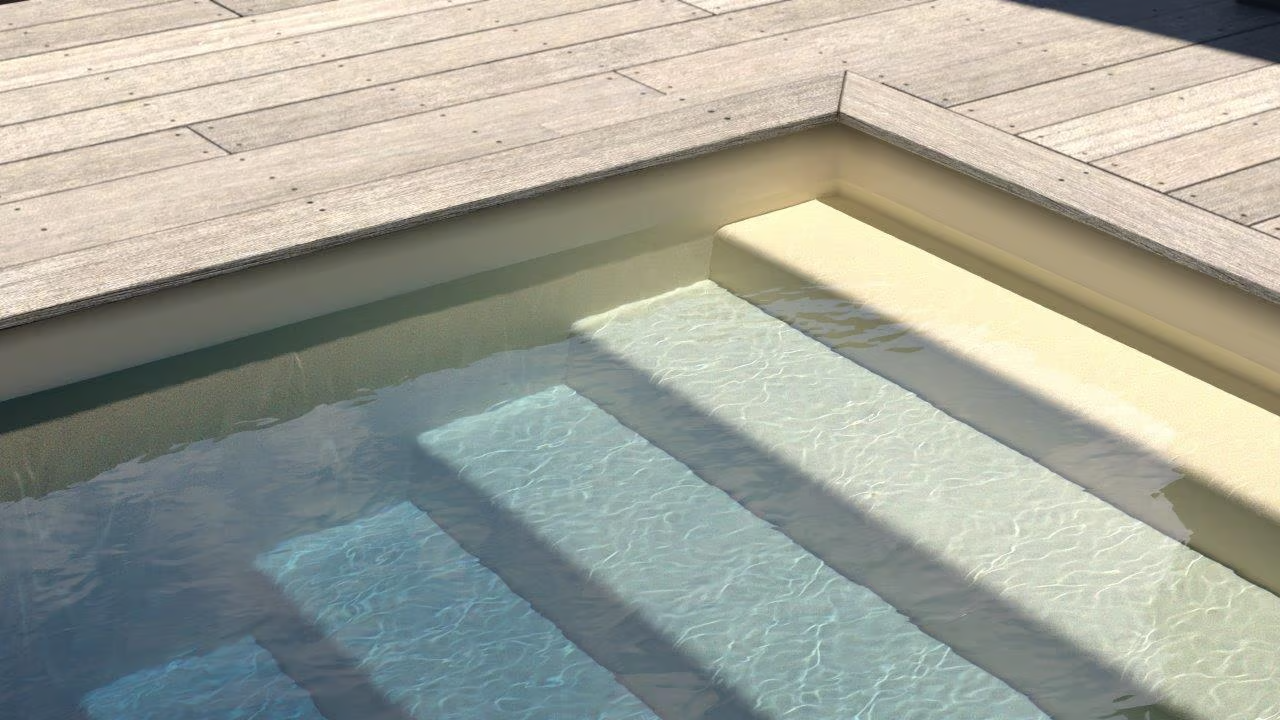

Example of the actual water appearance in a pool with sand-coloured AVfol Master liner.
Ideal dimensions for efficient installation
The 1.65 m width and 25 m roll length allow efficient installation with minimal welds, speeding up fitting and reducing the risk of leaks.
Applications for AVfol Master pool liner
AVfol Master pool liner offers a wide range of applications and adapts to different pool structures and operating conditions. Its strength, flexibility and durability make it suitable for:
- Outdoor and indoor pools
- Skimmer and overflow pools
- Freshwater and saltwater pools
- New and refurbished pools
- Concrete pools
- Permanent formwork pools
- Polystyrene block pools
- Steel-panel pools
- Wooden pools
For this liner colour, we recommend purchasing this original silicone sealant for finishing details
Sample calculation and cutting plan – 5.5 × 3 × 1.5 m pool
Specification: rectangular pool without steps. Roll width is 1.65 m. The walls are cut from the full liner height of 1.65 m (even though the pool is 1.5 m deep: the remaining 15 cm cannot be reused because the liner is folded at the top and bottom, leaving at most a narrow strip. For a 1.55 m-deep pool, waste will be zero).
Cutting plan (each piece must remain whole)
Walls (each in one piece):
- 3.1 m + 3.1 m + 5.6 m + 5.6 m = 17.4 linear metres
Floor (1.65 m-wide strips):
- the floor is 3 m wide → you need 2 strips (2 × 1.65 = 3.3 m)
- 2 × 5.5 m = 11.0 linear metres
Total length of pieces
17.4 linear metres (walls) + 11.0 linear metres (floor) = 28.4 linear metres
Why “25 m + 3.4 m” is not enough
Pieces are cut consecutively from the roll and must remain whole. For example, the best arrangement in one 25 m roll is:
- Roll 1: 5.6 + 5.6 + 3.1 + 3.1 + 5.5 = 22.9 m (approximately 2.1 m remains)
- Roll 2: the final floor strip remains: 5.5 m
Result: 1 full roll (25 m) + an additional 5.5 linear metres
Allow a larger reserve for pools with steps, benches, rounded corners or overflow channels.
Quality proven by customers
Customers particularly appreciate the liner’s workability, strength and long service life. The product meets modern pool operating requirements.
Installation recommendations
Ensure a high-quality substrate and precise seam welding. For maximum service life and a perfect appearance, we recommend installation by a specialist company experienced in pool liners.
AVfol Master pool liner structure
Diagram of the multi-layer AVfol Master pool liner construction.
AVfol Master pool liner uses a multi-layer construction, ensuring high strength, long service life and reliable protection of the pool shell. The individual layers fit together precisely to form a durable whole suitable even for demanding operating conditions.
The top protective lacquer protects against UV radiation, chemical exposure and mechanical wear. The premium PVC layer provides flexibility, colour stability and a pleasant surface. The central woven reinforcement significantly increases liner strength and dimensional stability. The bottom PVC layer ensures a firm bond with the substrate and long-term watertightness.
This carefully designed construction allows AVfol Master to retain its properties even during long-term use, providing a reliable solution for modern pools.
Additional parameters
| Category: | AVfol Master |
|---|---|
| Weight: | 111 kg |
