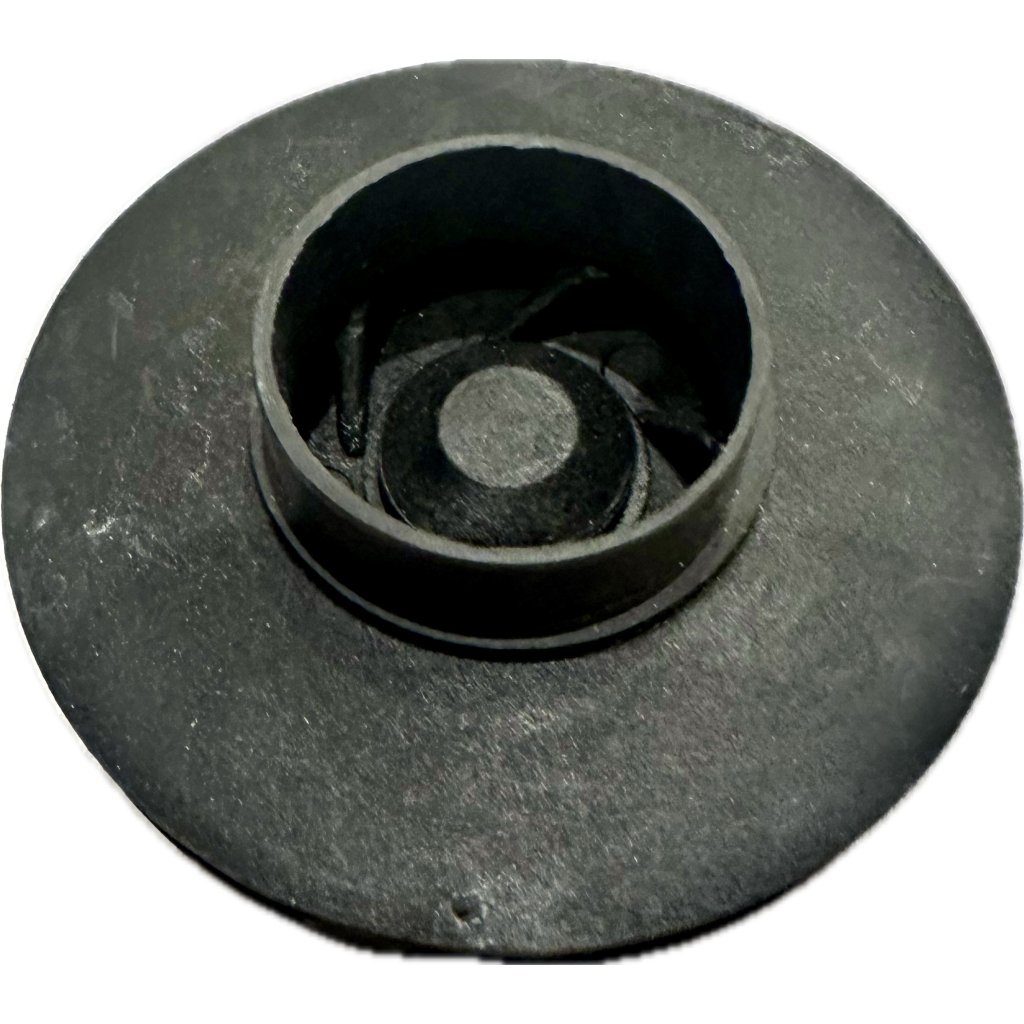

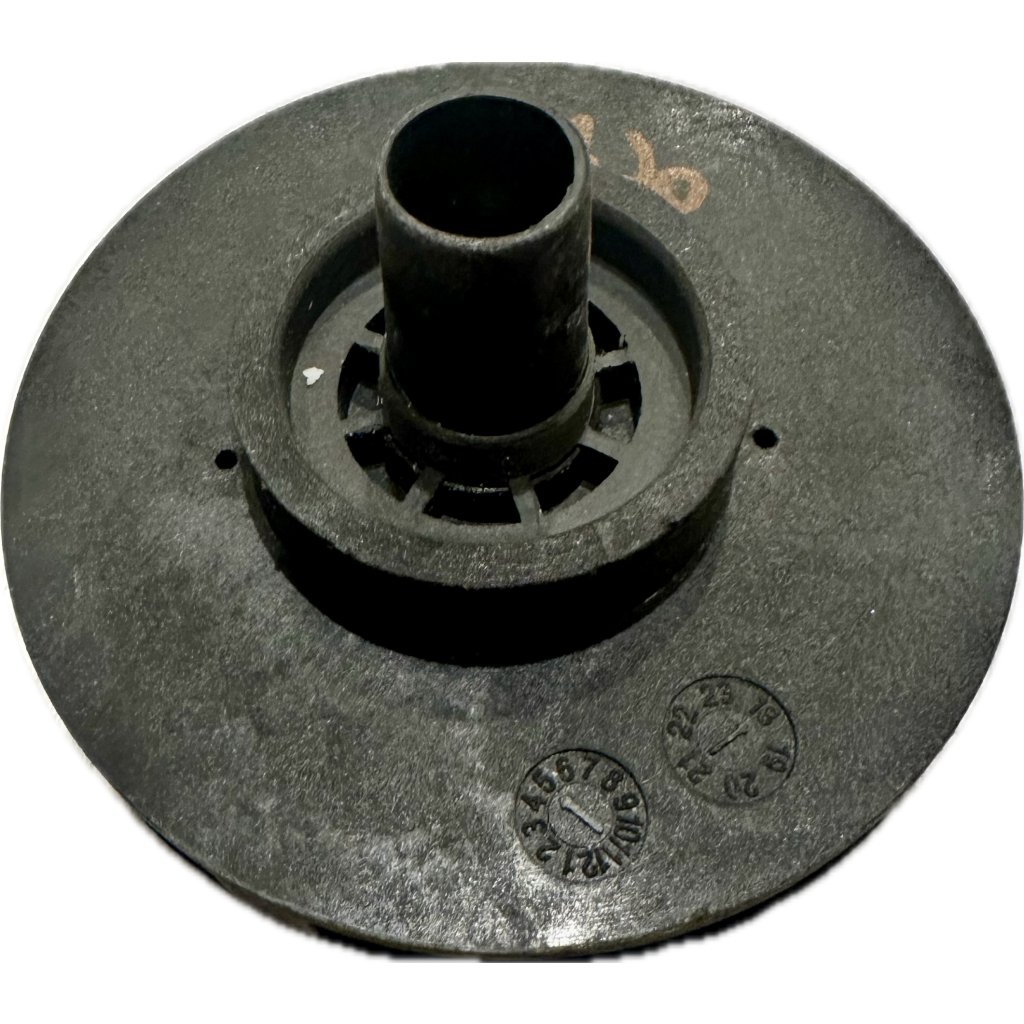

Blue Power 370 pump turbine
Dimensions and technical details
| Diameter of impeller | 90mm |
|---|---|
| Width of blade (excluding edges) | 6mm |
| Number of blades | 5 |
The impeller transfers motor rotation to the water and creates flow through the filtration system. Its dimensions and mounting must match the pump rating.
Part code: 303518
The impeller has a threaded attachment. Compare the dimensions, number of blades and design with the original part.
Dimensions and technical details
| Diameter of impeller | 90mm |
|---|---|
| Width of blade (excluding edges) | 6mm |
| Number of blades | 5 |
Blue Power 370 pump turbine
The impeller transfers motor rotation to the water and creates flow through the filtration system. Its dimensions and mounting must match the pump rating.
Pool technician’s advice
Match the exact nameplate model, impeller diameter, blade width and mounting. A shared drawing position does not mean different ratings are interchangeable.
What to check before ordering
Poor flow does not necessarily mean the impeller is faulty. Check the pre-filter basket, filter condition and pipework for blockages first. Cleaning cannot repair broken blades or a damaged attachment.
Compatibility and part identification
| Shop code | 303518 |
|---|---|
| Models | Blue Power 370 |
| Diagram position | 29 |
How to choose the correct version
Match the pump model on its rating plate and the shaft attachment. Threaded and slotted versions cannot be selected on appearance alone. A larger impeller is not automatically a suitable upgrade for the existing pump.
When to replace the part
Replace an impeller with cracked blades, deformation or damaged mounting. If flow is low, check the basket, filter and pipework before replacing it.
Important points when replacing the part
Inspect the diffuser and mechanical seal during dismantling. The removal and fitting procedure depends on the pump model. After assembly, check free movement and leak-tightness; do not run the pump dry.
Version details
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Using the exploded diagram
The listed position refers to the corresponding assembly diagram. The arrow helps locate the part; for some small components it marks only the fitting area. Compare the original part, its code and the specific pump version before ordering. You are ordering the item named in this listing, not the complete assembly in the diagram.
Related spare parts guides
Need help identifying the part
Email info@chemie-bazen.cz with photographs of the original part and the pump rating plate. Include measured dimensions and the fitting location to help identify the correct version.
Additional parameters
| Category: | Blue Power pump spare parts – 260, 370, 550, 750 |
|---|---|
| Weight: | 0.001 kg |
| Druh dílu: | Turbína |
| Kompatibilní řada: | Blue Power |
| Product type: | Náhradní díl |
| Brand: | Vagnerpool |
