Find the right spare part for Blue Power
Exploded diagram and linked parts guide for Blue Power 260, 370, 550, 750. Each item links to its product details, dimensions and a blue arrow identifying the part.
Check the pump nameplate, find the position in the drawing, then compare the original part code and dimensions.
Illustrative photo of the pump series
Blue Power impellers vary by model: 260, 370, 550 and 750. Compare the original diameter, blade width and mounting. The drain plug has a non-standard thread.

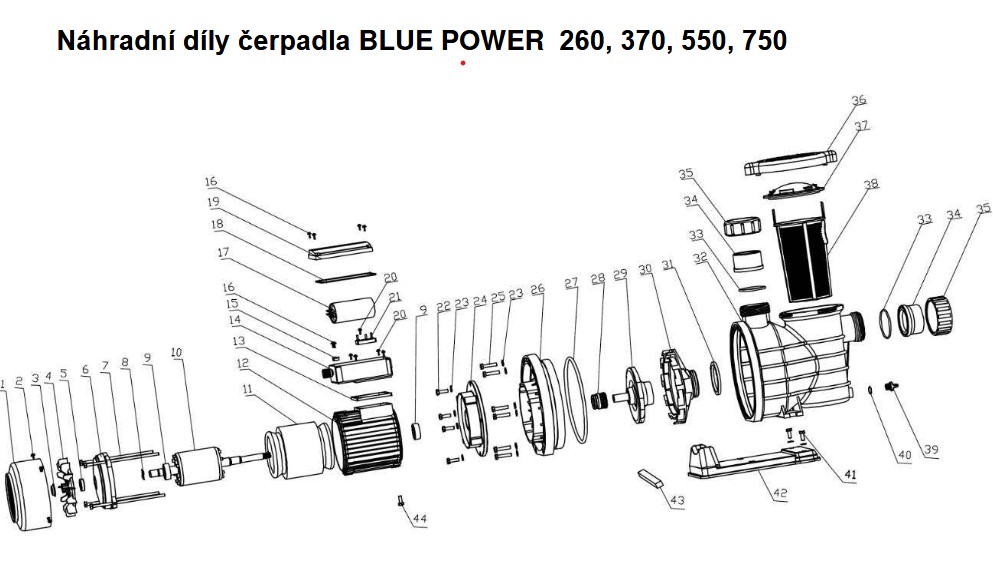

Poolservis teamExploded diagram – Blue Power
Click the drawing to enlarge it. Position numbers match the guide below.
Choose a part by pump section
Strainer, basket and lidImpellers, diffuser and flangeSeals and drainConnections and fastenersMotor bearings
Strainer, basket and lid
| Position | Spare part | Version / models | Product |
|---|---|---|---|
| 38 | Filter basket for Blue Power 260, 370, 550 and 750 pool pumps Part code: 303138 |
Blue Power 260, 370, 550, 750 | Details and price → |
| 36 | Pump prefilter lid nut Blue Power – 260, 370, 550, 750 Part code: 303136 |
Blue Power 260, 370, 550, 750 | Details and price → |
| 37 | Transparent strainer lid for Blue Power - 260, 370, 550, 750 Part code: 303137 |
Blue Power 260, 370, 550, 750 | Details and price → |
| pump body | Pump housing for Blue Power 260, 370, 550 and 750 Part code: 303132 |
Blue Power 260, 370, 550, 750 | Details and price → |
Impellers, diffuser and flange
| Position | Spare part | Version / models | Product |
|---|---|---|---|
| 29 | Blue Power 260 pump turbine Part code: 303229 |
Blue Power 260 | Details and price → |
| 29 | Blue Power 370 pump turbine Part code: 303518 |
Blue Power 370 | Details and price → |
| 29 | Blue Power 550 pump turbine Part code: 303329 |
Blue Power 550 | Details and price → |
| 29 | Blue Power 750 pump turbine Part code: 303429 |
Blue Power 750 | Details and price → |
Seals and drain
| Position | Spare part | Version / models | Product |
|---|---|---|---|
| 28 | Mechanical Seal – Sealing Segment for Blue Power 260, 370, 550, 750 Pump Part code: 9900107083 |
Blue Power 260, 370, 550, 750 | Details and price → |
| 32 – beneath lid | Pre-filter cover seal for Blue Power 260, 370, 550, 750 pumps Part code: 116X6 |
Blue Power 260, 370, 550, 750 | Details and price → |
| 39 | Pump drain plug for Blue Power Part code: 303139 |
Blue Power 260, 370, 550, 750 | Details and price → |
Connections and fasteners
| Position | Spare part | Version / models | Product |
|---|---|---|---|
| 34 / 35 | Blue Power Connection Union – 260, 370, 550, 750 Part code: 303134-303135 |
Blue Power 260, 370, 550, 750 | Details and price → |
Motor bearings
| Position | Spare part | Version / models | Product |
|---|---|---|---|
| 9 | Pump shaft bearing Blue Power 260, 370, 550, 750 Part code: 6202ZZ5 |
Blue Power 260, 370, 550, 750 | Details and price → |
Blue arrows are added to the original drawing. For parts not separately exploded, an arrow marks the installation location or connection point. Dimensions and part codes on the product page take priority over visual similarity.
