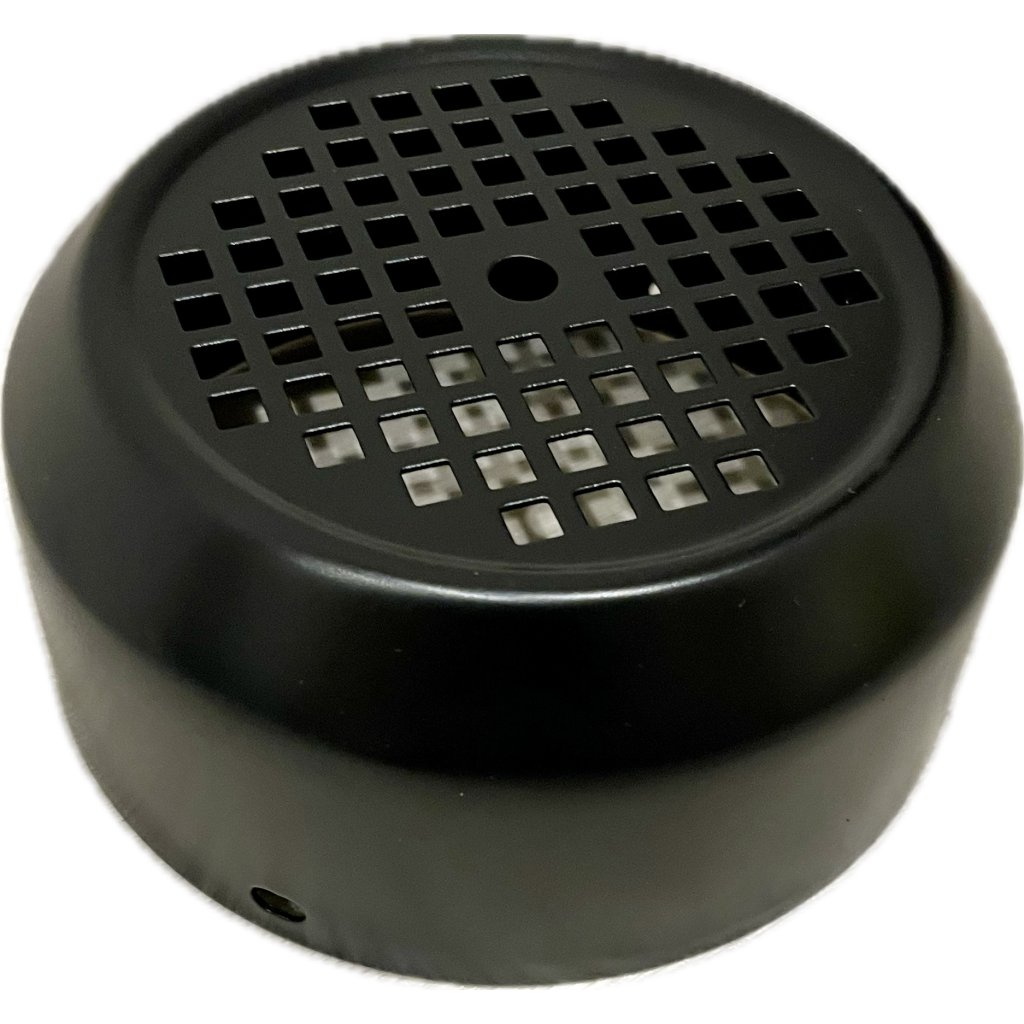

Micro Delfino 25, 33, 50 pump fan cover - propeller cover
Dimensions and technical details
| External diameter | 122 mm |
|---|---|
| Height | 55 mm |
This cover protects the cooling fan on the rear of the motor from direct contact and mechanical damage. The fan itself is a separate item.
Part code: 3560012R
Dimensions and technical details
| External diameter | 122 mm |
|---|---|
| Height | 55 mm |
Micro Delfino 25, 33, 50 pump fan cover - propeller cover
This cover protects the cooling fan on the rear of the motor from direct contact and mechanical damage. The fan itself is a separate item.
Pool technician’s advice
Compare the diameter and mounting on the actual motor. The cover and fan are separate parts and versions may differ.
What to check before ordering
The cover guards the rotating fan while allowing cooling airflow. A distorted cover can touch the blades. If unusual noise occurs, inspect both the cover and fan.
Compatibility and part identification
| Shop code | 3560012R |
|---|---|
| Micro Delfino models | Micro Delfino 25, 33, 50 |
| Diagram position | 10 |
How to choose the correct version
Check the original cover shape, diameter, depth and fixing points. One pump range name does not imply the same cover for every motor size. A cover is not the fan itself.
When to replace the part
Replace a cracked, warped or insecure cover. Compare the motor size and mounting points.
Important points when replacing the part
With the power disconnected, inspect the fixings and clean the ventilation openings. The replacement cover must not touch the fan or restrict its movement. Do not compensate for damaged motor fixings by overtightening the cover.
Version details
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Using the exploded diagram
The listed position refers to the corresponding assembly diagram. The arrow helps locate the part; for some small components it marks only the fitting area. Compare the original part, its code and the specific pump version before ordering. You are ordering the item named in this listing, not the complete assembly in the diagram.
Related spare parts guides
Need help identifying the part
Email info@chemie-bazen.cz with photographs of the original part and the pump rating plate. Include measured dimensions and the fitting location to help identify the correct version.
Additional parameters
| Category: | Micro Delfino pump spare parts – 25, 33, 50 |
|---|---|
| Weight: | 0.1 kg |
| Druh dílu: | Ventilátor |
| Kompatibilní řada: | Micro Delfino |
| Pozice v rozkresu Micro Delfino: | 10 |
| Product type: | Náhradní díl |
| Brand: | Vagnerpool |
