COFIES 300 W · LIGHT SPARE PARTS
Find the right component by diagram and part code
Design and Omega faceplates, flange, seals, rear bulb cover and cable-entry components. This overview of 13 replacement parts for the original Cofies 300 W halogen series helps you distinguish components that may look similar.
Find a replacement partCofies 300 W exploded parts diagramCheck the series and exact component first
A 300 W rating alone does not establish matching niches, flanges or gaskets. Compare the Cofies series, original code, shape and fixing points. For Design lights fitted with LED sources, check the specific LED-series diagram; this category does not confirm interchangeability of every component.

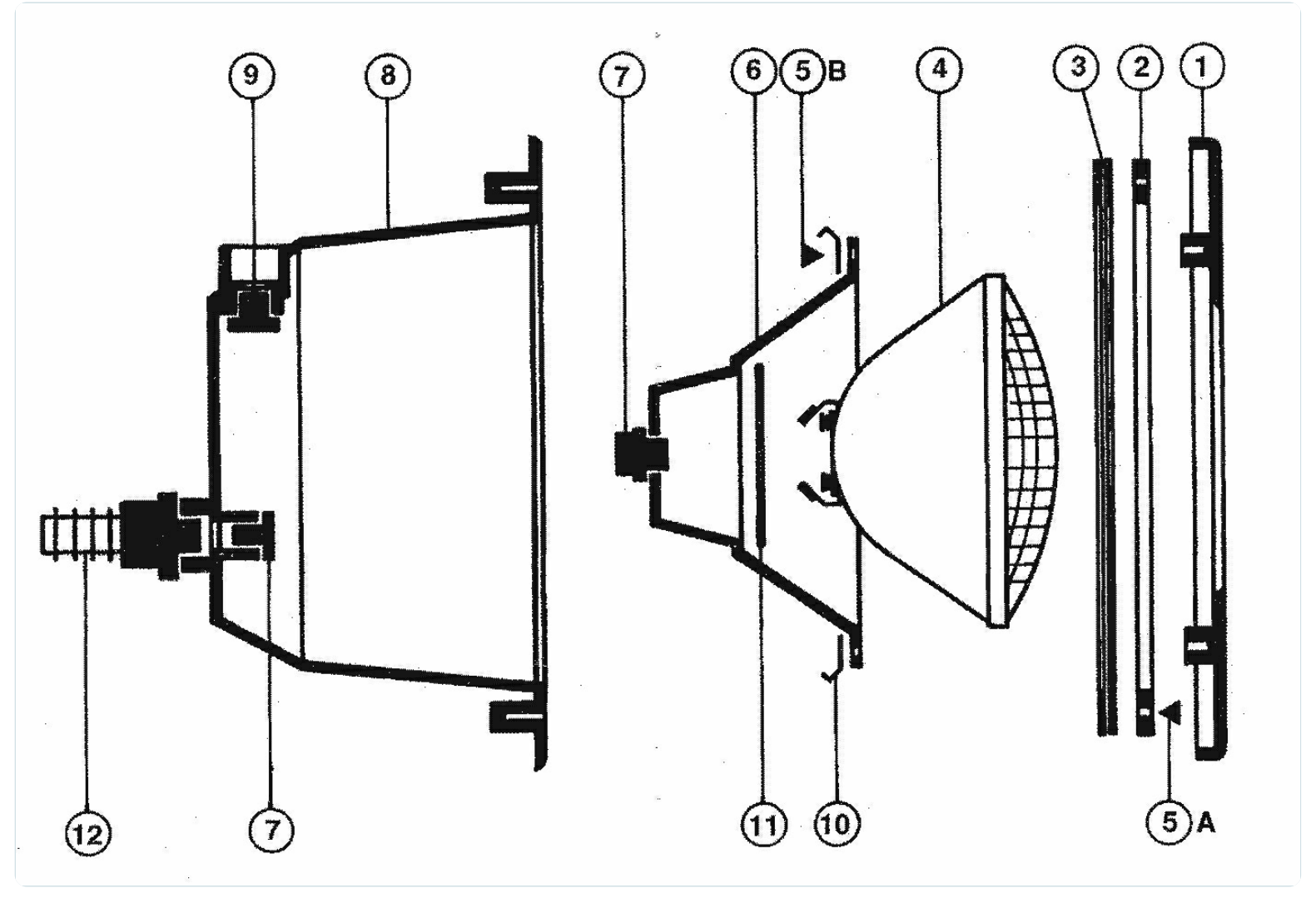

Cofies 300 W exploded parts diagram
Blue position numbers open the product detail. Position 1 opens the Design / Omega faceplate selection. This is an assembly schematic; the part code determines the actual version.
Open the original drawing (PDF) →
Position 1: choose the faceplate version
Replacement parts by diagram position
Search by part name, code, version or diagram position.
Showing 13 of 13 parts
No parts match your search. Try a shorter name or a part code.
Two seals for different locations
Flat self-adhesive gasket HPR20008 is at position 3 beside the flange. O-ring HPR20007, 93 × 6 mm, belongs to the optical section at position 11. Compare the profile and location as well as the dimensions.
Select the niche for the pool construction
The overview lists niche HPR9471 for liner pools. The shared position 8 in the original drawing does not establish the same version for concrete, liner and polypropylene pools. Replacing a recessed niche may involve work on the pool wall and waterproofing.
Diagram and documentation
The source document is a parts drawing and list rather than an installation manual. The supplier page did not offer a separate installation manual for the original halogen light when checked.
Our pool specialist can help
Send a photo of the light, original component and equipment label. Include dimensions and the part code if available. Call +420 728 871 005 · info@chemie-bazen.cz.
