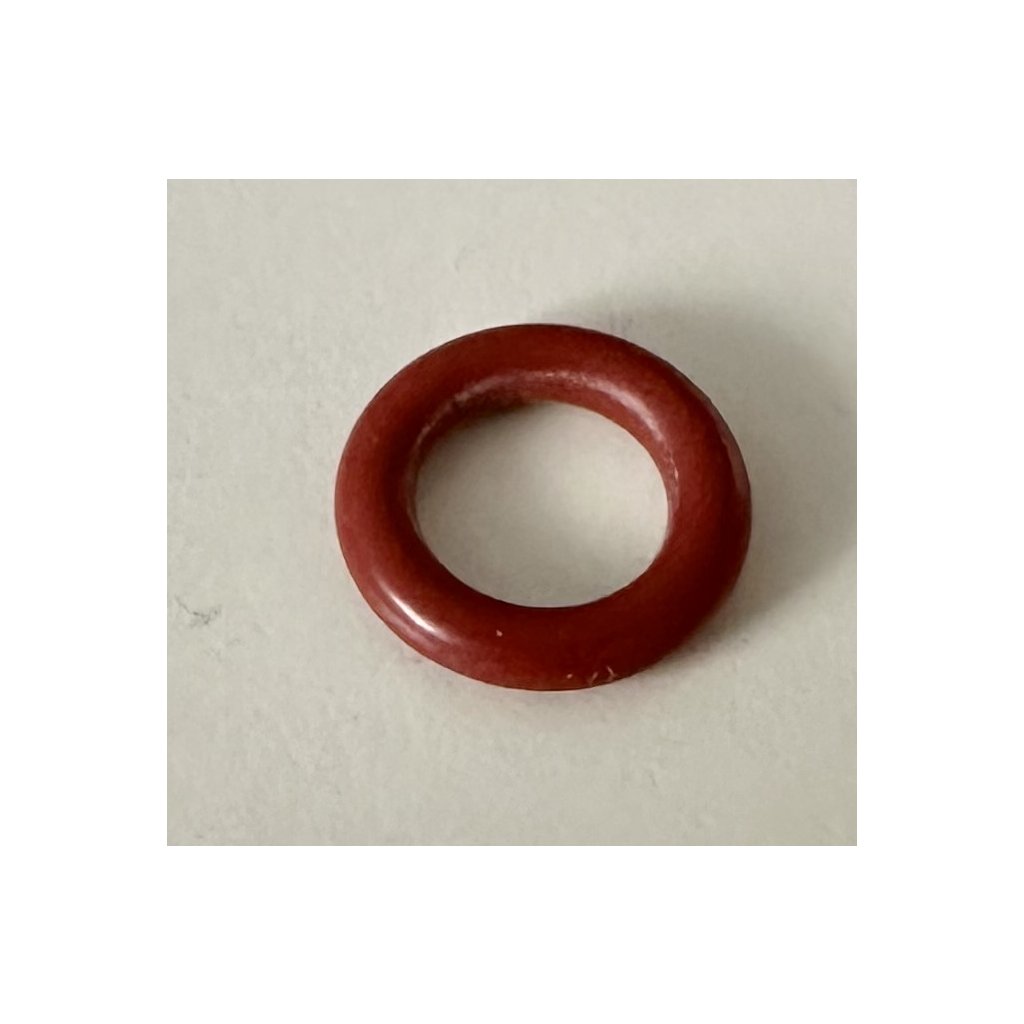

Teflon screw seal for Aqua Plus 4, 6, 8 and 11 pumps
Dimensions and technical details
| Diameter external | 10 mm |
|---|
This sealing element closes the corresponding joint in the pump assembly. Its dimensions, cross-section and seating must match the original part.
Part code: 9900107085
Dimensions and technical details
| Diameter external | 10 mm |
|---|
Teflon screw seal for Aqua Plus 4, 6, 8 and 11 pumps
Small sealing ring for a screw in the hydraulic section, shown at position 412.11 in the diagram.
Pool technician’s advice
Do not confuse this with the drain plug seal. The screw and seal are separate items.
What to check before ordering
The seal makes the corresponding pump joint watertight. Before ordering, compare the dimensions, cross-section and seating location of the original seal.
Compatibility and part identification
| Shop code | 9900107085 |
|---|---|
| Compatibility | Aqua Plus 4, 6, 8, 11 |
| Aqua Plus diagram position | 412.11 |
How to choose the correct version
Compare the diameter, cross-section and shape of the original seal. Lid, body, screw and drain plug seals are not automatically interchangeable.
When to replace the part
Replace a hardened, flattened, split or otherwise damaged seal. Clean its groove and inspect the mating surfaces.
Important points when replacing the part
Disconnect the pump from the power supply and drain the water before replacement. Clean the sealing surfaces and seat the seal correctly without twisting or damaging it. Follow the manufacturer’s assembly procedure.
Version details
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Using the exploded diagram
The listed position refers to the corresponding assembly diagram. The arrow helps locate the part; for some small components it marks only the fitting area. Compare the original part, its code and the specific pump version before ordering. You are ordering the item named in this listing, not the complete assembly in the diagram.
Related spare parts guides
Need help identifying the part
Email info@chemie-bazen.cz with photographs of the original part and the pump rating plate. Include measured dimensions and the fitting location to help identify the correct version.
Additional parameters
| Category: | Piping + pool construction |
|---|---|
| Weight: | 0.02 kg |
| Druh dílu: | Těsnění |
| Kód náhradního dílu: | 9900107085 |
| Kompatibilní řada: | Aqua Plus |
| Pozice v rozkresu Aqua Plus: | 412.11 |
| Product type: | Náhradní díl |
| Brand: | Badu |
