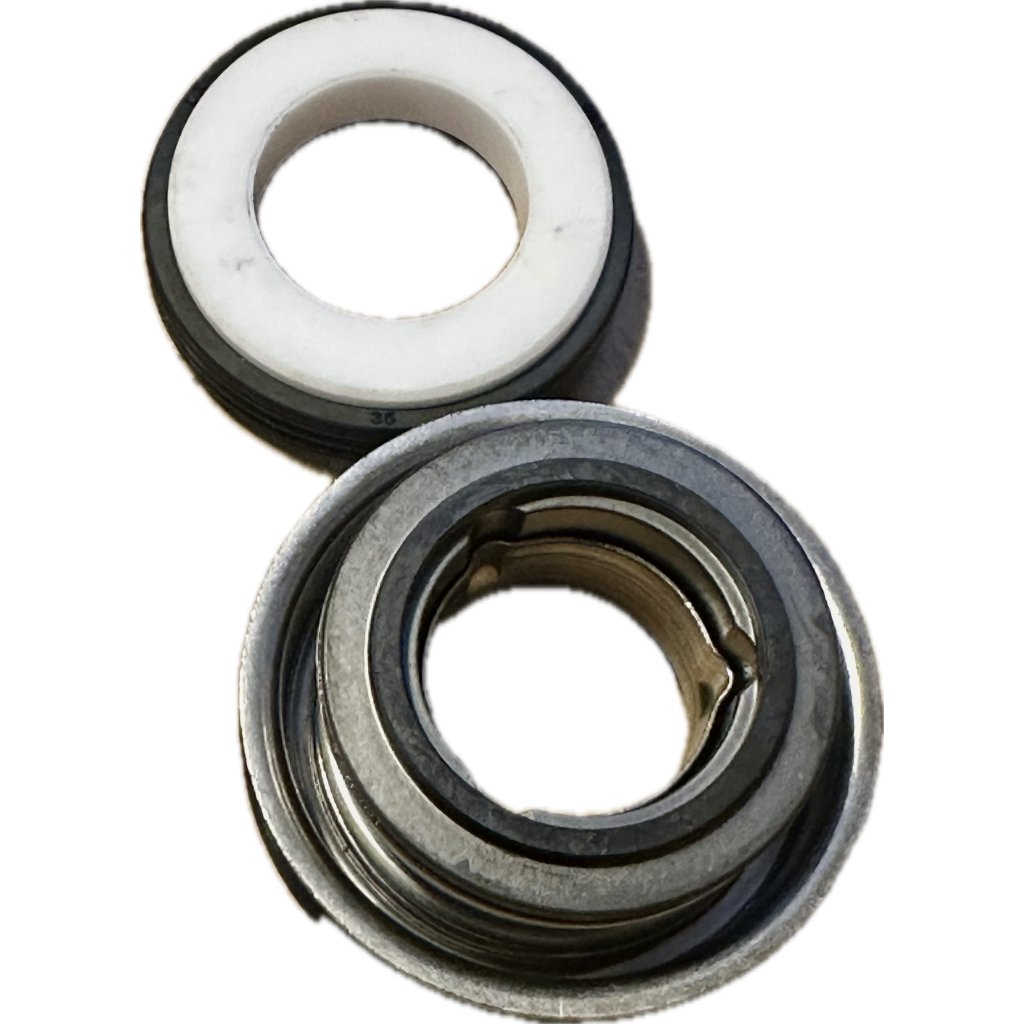

Mechanical Seal – Sealing Segment for SPS50, SPS75, SPS100 Pump
Dimensions and technical details
| Internal diameter of seal spring component | 17,7 mm |
|---|---|
| External diameter of metal seal component (including rubber) | 41 mm |
| Internal diameter of ceramic ring | 19,5 mm |
| External diameter of ceramic ring including rubber | 35,5 mm |
| Height of metal component | 20,5 mm |
| Height of ceramic component including rubber | 9 mm |
The mechanical seal seals the rotating shaft between the wet hydraulic section and the motor. It is different from a static body or lid gasket.
Part code: 9900107077
Pool technician’s advice
Compare all dimensions of both original seal components and their shaft seating. Protect the sealing faces during installation; professional replacement is recommended.
Poolservis team
Mechanical Seal – Sealing Segment for SPS50, SPS75, SPS100 Pump
The mechanical seal seals the rotating shaft between the wet hydraulic section and the motor. It is different from a static body or lid gasket.
When to replace this part
Check it when water leaks around the shaft. Establish the actual source of leakage before replacement and protect the polished sealing faces during installation.
Choosing the correct version
| Shop code | 9900107077 |
|---|---|
| Models | SPS 50, 75, 100 |
| Diagram position | shaft seal |
The gallery contains the original exploded diagram with a blue arrow identifying the part or its installation location. The listing is for the part named above, not a complete pump. For motor components that are not separately exploded, the arrow marks their location in the motor; for adapters, it marks the connection point.
The shaft seal has no separate position number here; the arrow marks the seal.
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Additional parameters
| Category: | SPS pump spare parts – 50, 75, 100 |
|---|---|
| Weight: | 0.02 kg |
| Druh dílu: | Mechanická ucpávka |
| Kompatibilní řada: | SPS |
| Product type: | Náhradní díl |
| Brand: | Vagnerpool |
