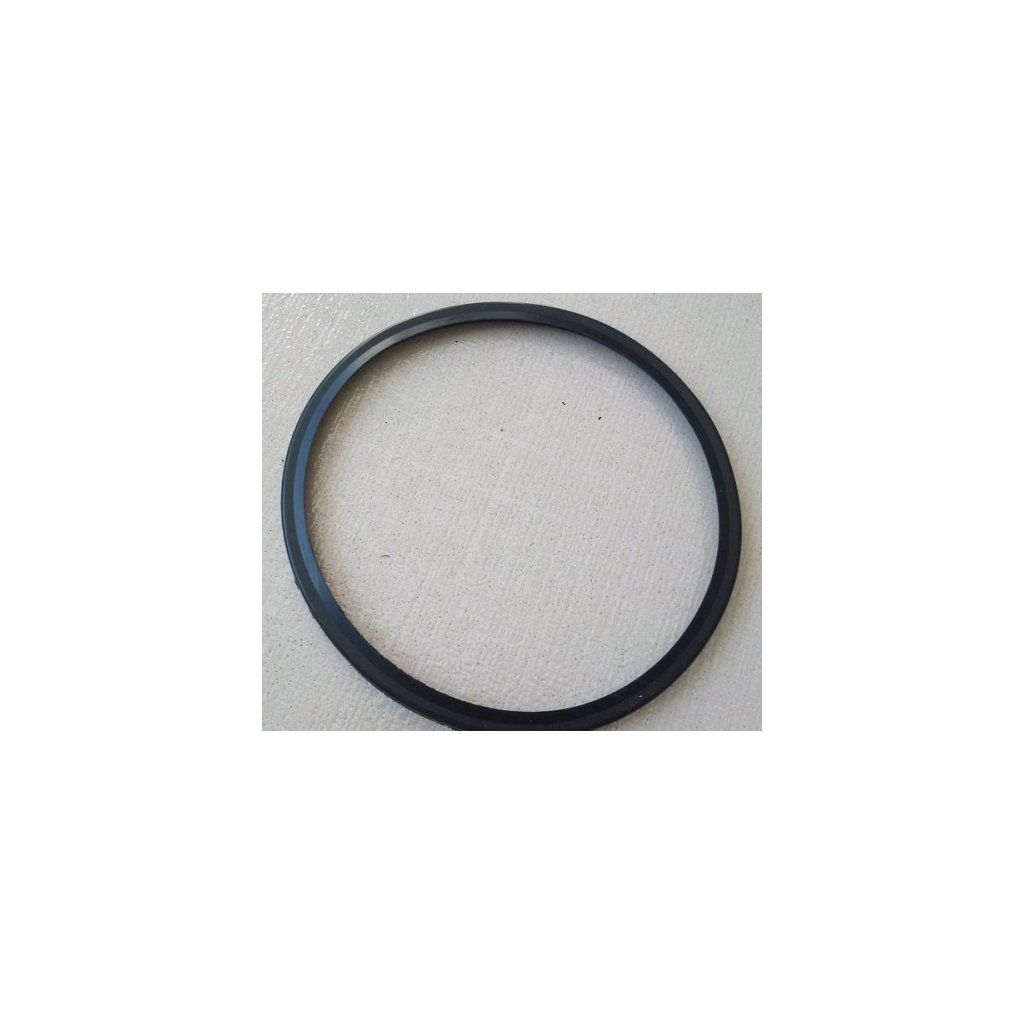

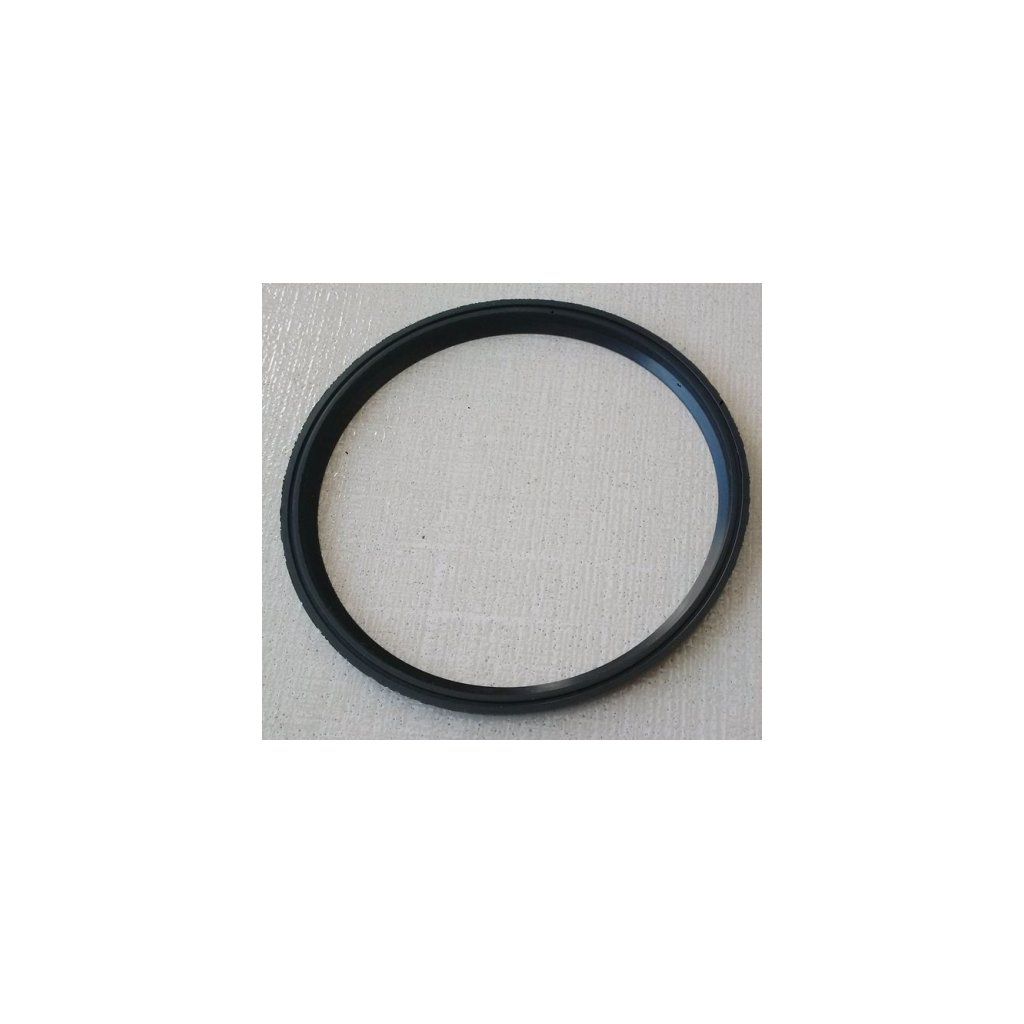

Micro Delfino pre-filter cover gasket (Micro 25, Micro 33, Micro 50)
Dimensions and technical details
| External diameter | 11,6 cm |
|---|---|
| Width of rubber on recessed side | 4,5 mm |
| Width of rubber on narrowed side | 7 mm |
This sealing element closes the corresponding joint in the pump assembly. Its dimensions, cross-section and seating must match the original part.
Part code: B4054710
Dimensions and technical details
| External diameter | 11,6 cm |
|---|---|
| Width of rubber on recessed side | 4,5 mm |
| Width of rubber on narrowed side | 7 mm |
Micro Delfino pre-filter cover gasket (Micro 25, Micro 33, Micro 50)
This sealing element closes the corresponding joint in the pump assembly. Its dimensions, cross-section and seating must match the original part.
Pool technician’s advice
Compare diameter, cross-section and shape with the original seal. Lid, body, diffuser and drain seals are different items.
What to check before ordering
Locate the leak before ordering. Lid, body and diffuser seals have different functions and designs. A new seal cannot compensate for a cracked adjoining component or damaged sealing surface.
Compatibility and part identification
| Shop code | B4054710 |
|---|---|
| Micro Delfino models | Micro Delfino 25, 33, 50 |
| Diagram position | 65 |
How to choose the correct version
Compare the shape, diameter and cross-section with the original part. If the old seal is stretched or distorted, also check the part code and assembly diagram. A similar-looking ring may not seat correctly in the groove.
When to replace the part
Replace a hardened, flattened, split or otherwise damaged seal. Clean its groove and inspect the mating surfaces.
Important points when replacing the part
Clean the groove and mating surface before fitting. Seat the seal evenly without twisting or pinching it. Only use a lubricant approved for that seal by the manufacturer, then check the joint during operation.
Version details
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Using the exploded diagram
The listed position refers to the corresponding assembly diagram. The arrow helps locate the part; for some small components it marks only the fitting area. Compare the original part, its code and the specific pump version before ordering. You are ordering the item named in this listing, not the complete assembly in the diagram.
Related spare parts guides
Need help identifying the part
Email info@chemie-bazen.cz with photographs of the original part and the pump rating plate. Include measured dimensions and the fitting location to help identify the correct version.
Additional parameters
| Category: | Micro Delfino pump spare parts – 25, 33, 50 |
|---|---|
| Weight: | 0.001 kg |
| Druh dílu: | Těsnění |
| Kompatibilní řada: | Micro Delfino |
| Pozice v rozkresu Micro Delfino: | 65 |
| Product type: | Náhradní díl |
| Brand: | Vagnerpool |
