Spare parts for BADU EcoTouch Pro
Spare parts for BADU EcoTouch Pro
Find the correct part using its position in the original exploded view, catalogue code and pump version. Check the rating and generation before ordering: similar-looking parts may differ.

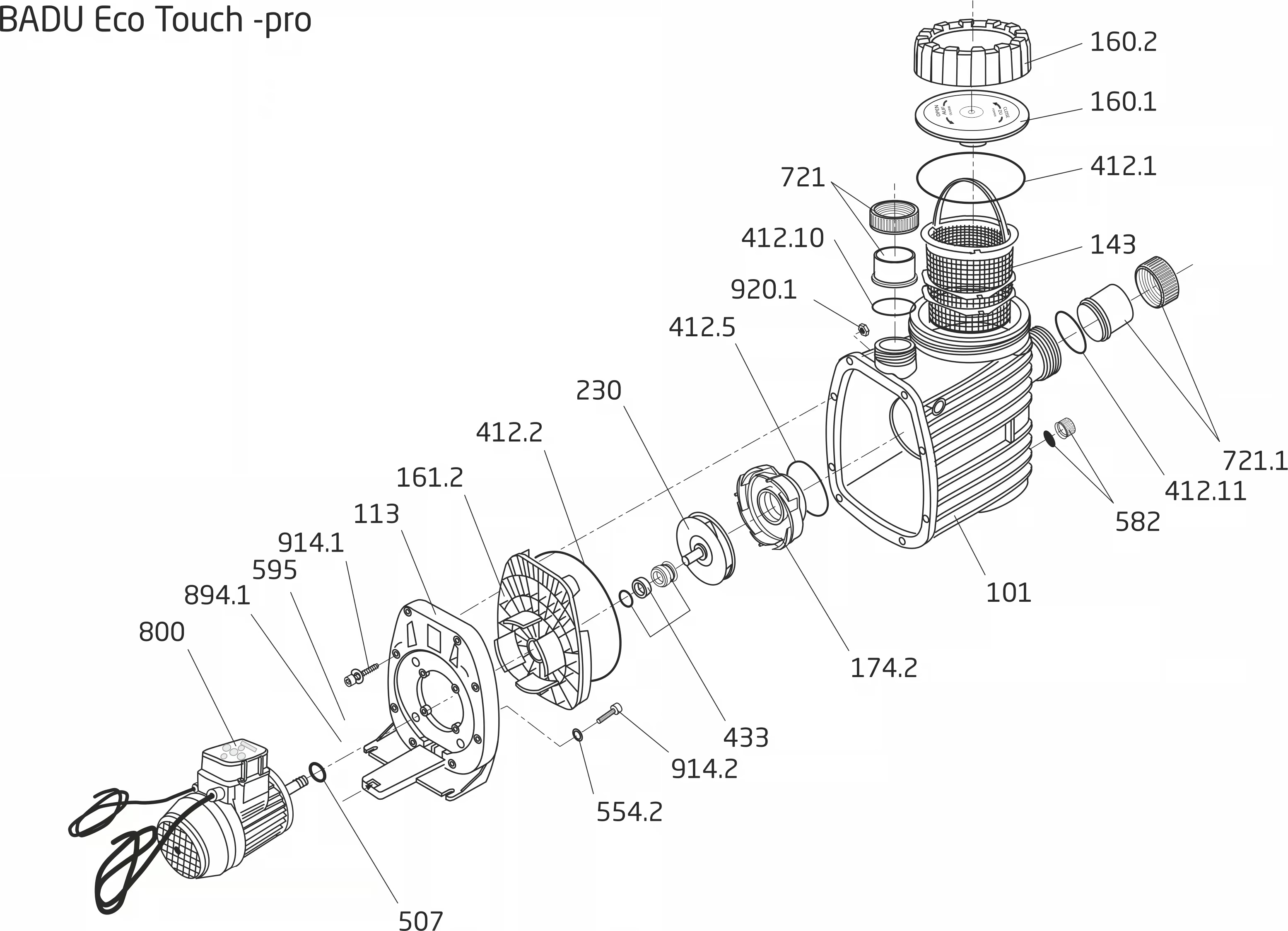

Click the drawing to view it at full size. The numbers correspond to positions in the parts list.
No matching parts. Try a shorter name or the catalogue code.
Strainer lids, baskets and housings
| Position | Spare part | Selection |
|---|---|---|
| 143 | Pump Strainer Basket for Bettar 6, 8, 12, 14, 20, 25Part code: 2920314300 | Match the code and pump version |
| 160.1 | Strainer lid BADU 90- Clear coverPart code: 2921116010 | Match the code and pump version |
| 160.2 | Strainer lid BADU 90- Retaining nutPart code: 2921116020 | Match the code and pump version |
| - | BADU universal lid wrenchPart code: 2921157700 | Match the code and pump version |
Impellers, diffusers and seal plates
| Position | Spare part | Selection |
|---|---|---|
| 161.2 | Pump seal plate BETTAR/BADU TOPPart code: 2921116125 | Match the code and pump version |
| 174.2 | Diffuser BADU ECO TOUCH-PROPart code: 2921117412 | Match the code and pump version |
| 230 | Impeller BELSTAR 16Part code: 2920723059 | Match the code and pump version |
Seals and mechanical seals
| Position | Spare part | Selection |
|---|---|---|
| 412.1 | Pre-filter lid gasket Badu Bettar TOP 6,8,12,14,20,25Part code: 2921141210 | Match the code and pump version |
| 412.2 | Pump housing seal ECO TOUCH PROPart code: 2921141222 | Match the code and pump version |
| 412.5 | Diffuser seal BADU90+BADU40Part code: 2920141210 | Match the code and pump version |
| 412.10 | Union O-ring for Badu Magic 4, 6, 8, 11, Bettar TOP and Badu Picco pumpsPart code: 2920141252 | Match the code and pump version |
| 412.11 | Union tailpiece O-ring 63 BETTAR BADU TOPPart code: 2921441210 | Match the code and pump version |
Unions and other parts
| Position | Spare part | Selection |
|---|---|---|
| 507 | Slinger ring BETTAR 8,12, BADU90/11,7Part code: 2921150700 | Match the code and pump version |
| 582 | Drain plug for Magic, Picco, Bettar and Aqua Plus pumpsPart code: 2921658200 | Match the code and pump version |
| 595 | Rubber pump support for BADU Magic – 2920359501Part code: 2920359501 | Match the code and pump version |
| 72 | Pump union nut for BADU Magic 4, 6, 8, 11, Bettar TOP and BADU PiccoPart code: 2921672111 | Match the code and pump version |
| 721 | Connecting collar 50mm for Badu Magic 4,6,8,11, Bettar TOP, Badu PiccoPart code: 2921672105 | Match the code and pump version |
| 721.1 | Bettar TOP 63 mm front pump union nutPart code: 2921472111 | Match the code and pump version |
| 721.1 | 63 mm union tailpiece for Bettar TOP pumpsPart code: 2921472100 | Match the code and pump version |
| 894.1 | Pump base blanking plug for BADU Magic – 2920389410Part code: 2920389410 | Match the code and pump version |
| 412.10+412 | union 50+63MM for BADUPart code: 2921472110 | 63 mm |
The drawing also shows components not offered separately here. The contents of each item are specified on its product page. If unsure, send us a photo of the original part and pump nameplate.
