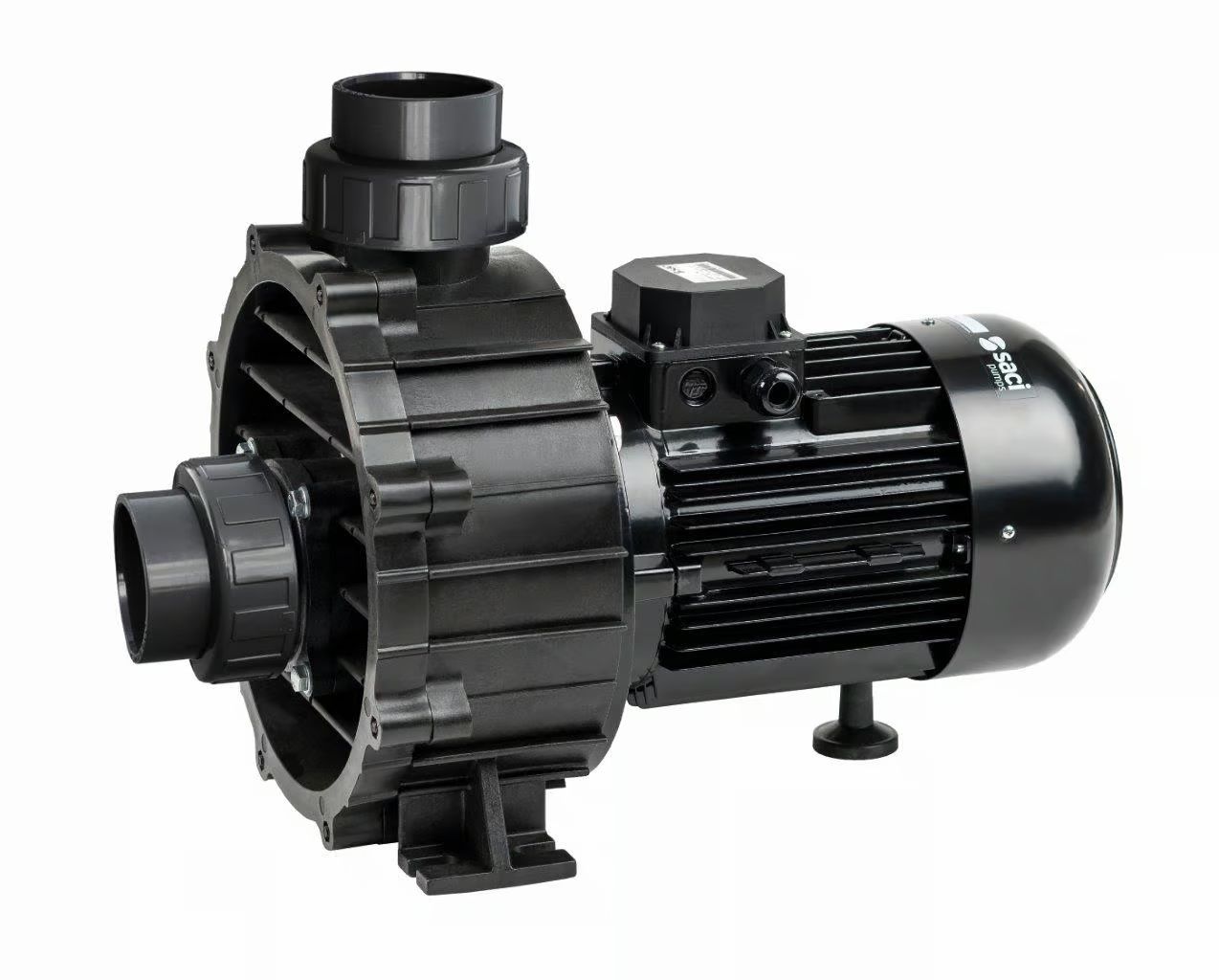

Spare parts for Bravus

Find the correct part using its position in the original exploded view, catalogue code and pump version. Check the rating and generation before ordering: similar-looking parts may differ.

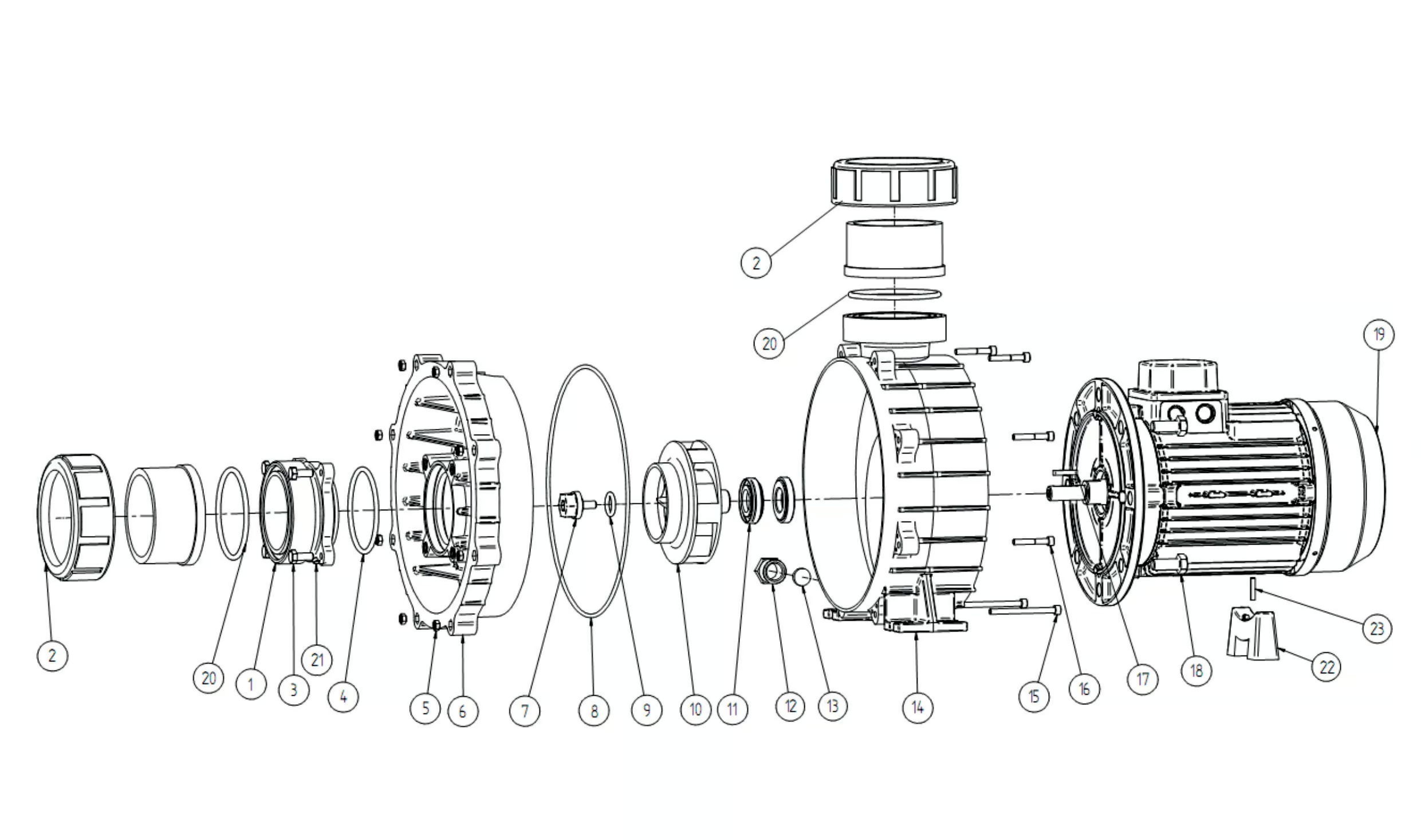

Click the drawing to view it at full size. The numbers correspond to positions in the parts list.

Find a spare part

Strainer lids, baskets and housings

Position	Spare part	Selection
14	Pump housing BRAVUS, SUPRAPart code: S92406120	Match the code and pump version

Impellers, diffusers and seal plates

Position	Spare part	Selection
6	Pump seal plate BRAVUS / SUPRAPart code: S92406125	Match the code and pump version
10	Impeller BRAVUS, SUPRA 300Part code: S92406140	Match the code and pump version
10	Impeller BRAVUS, SUPRA 400Part code: S92406145	Match the code and pump version
10	Impeller BRAVUS, SUPRA 550Part code: S92406150	Match the code and pump version

Seals and mechanical seals

Position	Spare part	Selection
4	Seal BRAVUS, SUPRAPart code: S92406180	Match the code and pump version
8	Pump housing seal BRAVUS, SUPRAPart code: S92406185	Match the code and pump version
11	Mechanical seal BRAVUS, SUPRAPart code: S9012327L	Match the code and pump version
13	Drain plug seal .MAGNUSPart code: S92402087	Match the code and pump version
20	O-ring 91, 44 X 5,33Part code: S92406190	91,44 × 5,33 mm

Unions and other parts

Position	Spare part	Selection
12	Drain plug - MAGNUSPart code: S92402081	Match the code and pump version

The drawing also shows components not offered separately here. The contents of each item are specified on its product page. If unsure, send us a photo of the original part and pump nameplate.
