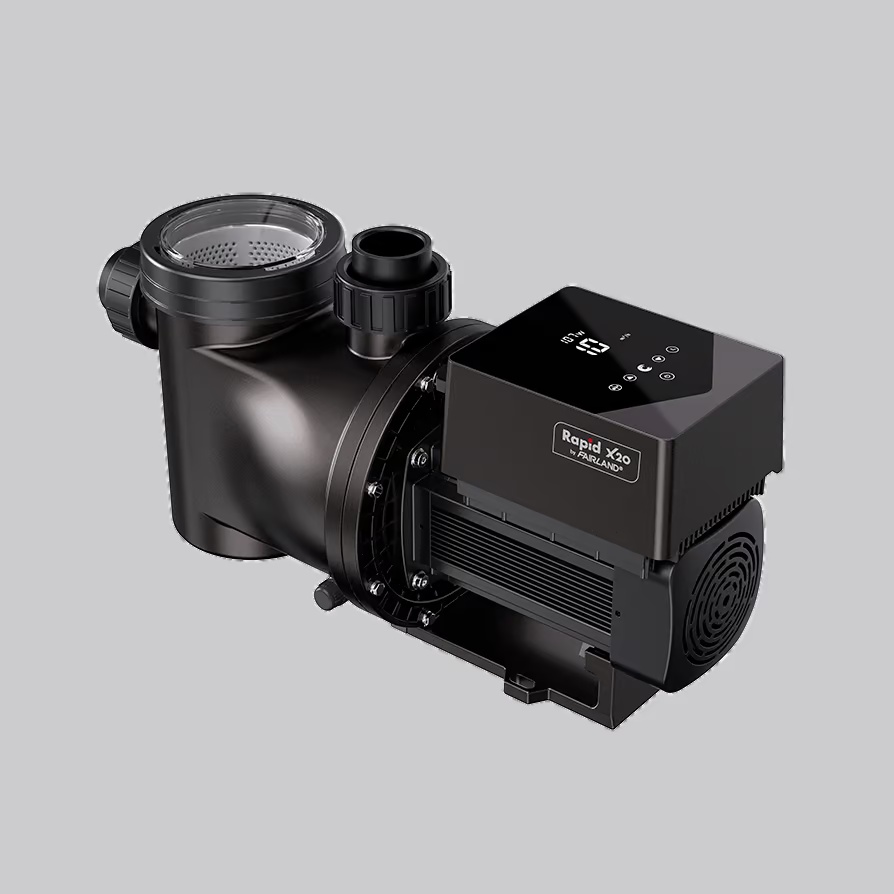

Spare parts for Rapid X20 iWP

Find the correct part using its position in the original exploded view, catalogue code and pump version. Check the rating and generation before ordering: similar-looking parts may differ.

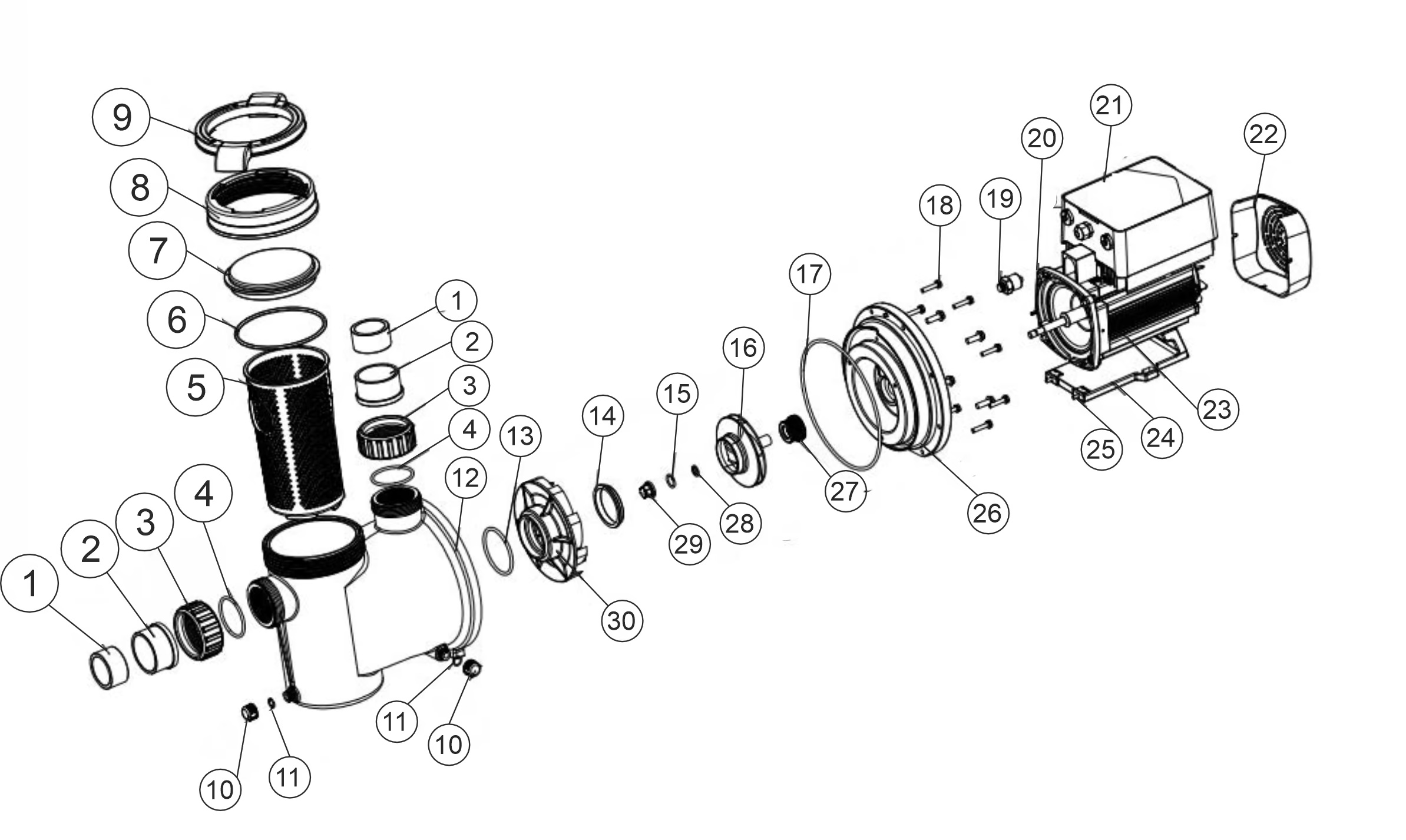

Click the drawing to view it at full size. The numbers correspond to positions in the parts list.

Find a spare part

Strainer lids, baskets and housings

Position	Spare part	Selection
5	Pump strainer basket iWPPart code: FIWP0005	Match the code and pump version
7	Pump strainer lid iWPPart code: FIWP0007	Match the code and pump version
9	Pump lid wrench iWPPart code: FIWP0009	Match the code and pump version
12	Pump housing iWPPart code: FIWP0012	Match the code and pump version

Impellers, diffusers and seal plates

Position	Spare part	Selection
30	Diffuser iWP 15-22Part code: F1222010800005	Match the code and pump version
30	Diffuser iWP 28-33Part code: F1222010800006	Match the code and pump version
16	Pump impeller iWP 15/22Part code: FIWP0016	Match the code and pump version
16	Impeller iWP 28/33Part code: F1222010400030	Match the code and pump version
26	Pump seal plate iWPPart code: FIWP0026	Match the code and pump version

Seals and mechanical seals

Position	Spare part	Selection
6	Strainer lid seal pump iWPPart code: FIWP0006	Match the code and pump version
11	Drain plug seal pump iWPPart code: FIWP0011	Match the code and pump version
13	Pump diffuser seal iWPPart code: FIWP0013	Match the code and pump version
15	Pump impeller seal iWPPart code: FIWP0015	Match the code and pump version
17	Pump seal plate seal iWPPart code: FIWP0017	Match the code and pump version
27	Mechanical seal iWPPart code: FIWP0027	Match the code and pump version

Unions and other parts

Position	Spare part	Selection
2/3/4	Pump union iWPPart code: FIWPCSET	Match the code and pump version
10	Pump drain plug iWPPart code: FIWP0010	Match the code and pump version

The drawing also shows components not offered separately here. The contents of each item are specified on its product page. If unsure, send us a photo of the original part and pump nameplate.
