Spare parts for Supra
Spare parts for Supra

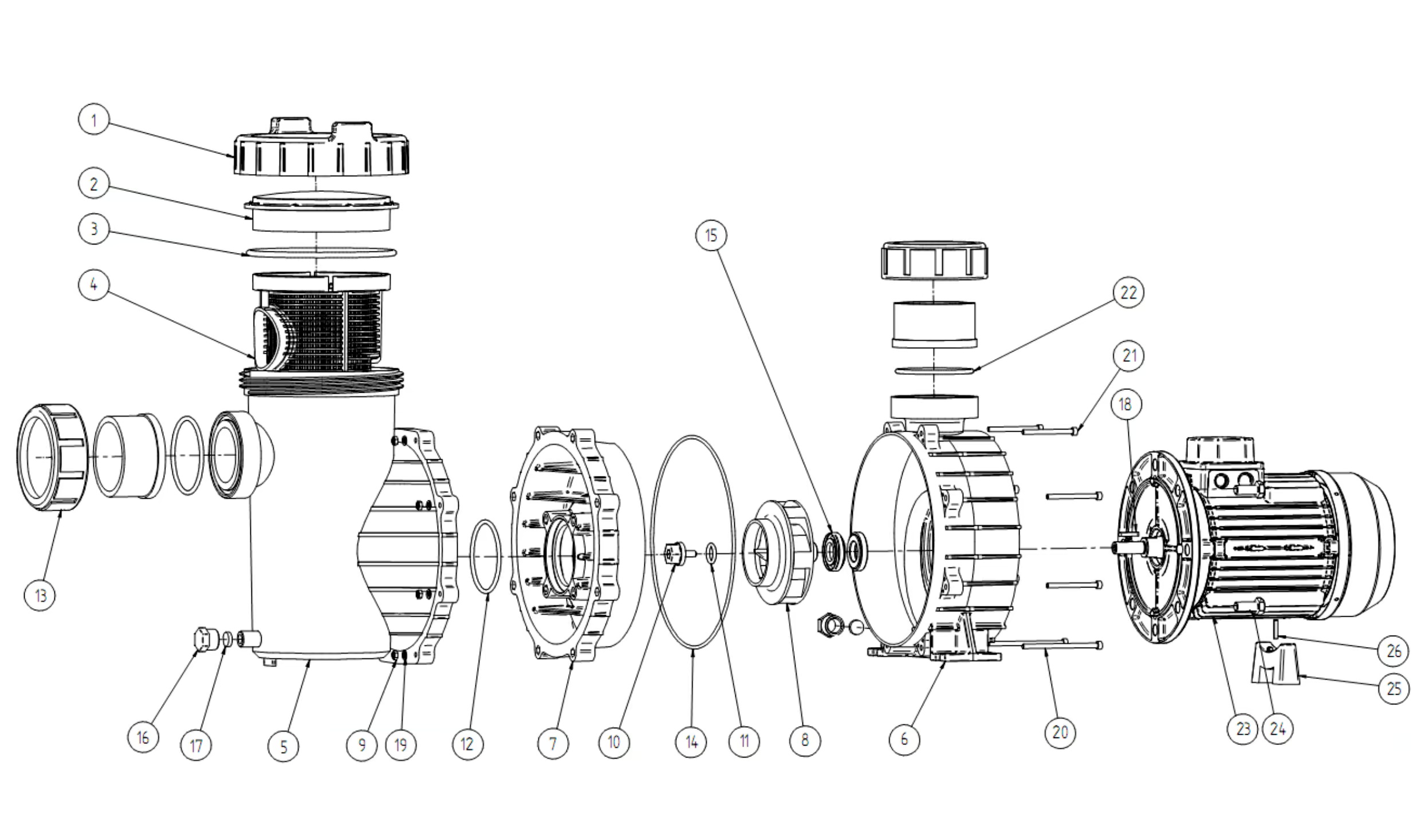

Find the correct part using its position in the original exploded view, catalogue code and pump version. Check the rating and generation before ordering: similar-looking parts may differ.
No matching parts. Try a shorter name or the catalogue code.
Strainer lids, baskets and housings
| Position | Spare part | Selection |
|---|---|---|
| 2 | Strainer lid SUPRAPart code: S92406100 | Match the code and pump version |
| 4 | Strainer basket SUPRAPart code: S92406110 | Match the code and pump version |
| 6 | Pump housing BRAVUS, SUPRAPart code: S92406120 | Match the code and pump version |
Impellers, diffusers and seal plates
| Position | Spare part | Selection |
|---|---|---|
| 7 | Pump seal plate BRAVUS / SUPRAPart code: S92406125 | Match the code and pump version |
| 8 | Impeller BRAVUS, SUPRA 300Part code: S92406140 | Match the code and pump version |
| 8 | Impeller BRAVUS, SUPRA 400Part code: S92406145 | Match the code and pump version |
| 8 | Impeller BRAVUS, SUPRA 550Part code: S92406150 | Match the code and pump version |
Seals and mechanical seals
| Position | Spare part | Selection |
|---|---|---|
| 3 | Strainer lid seal SUPRAPart code: S92406175 | Match the code and pump version |
| 12 | Seal BRAVUS, SUPRAPart code: S92406180 | Match the code and pump version |
| 17 | Mechanical seal CF-2 550/750Part code: S9012325L | Match the code and pump version |
| 14 | Pump housing seal SUPRAPart code: S92406186 | Match the code and pump version |
| 15 | Mechanical seal BRAVUS, SUPRAPart code: S9012327L | Match the code and pump version |
| 17 | Drain plug seal .MAGNUSPart code: S92402087 | Match the code and pump version |
| 22 | O-ring 91, 44 X 5,33Part code: S92406190 | 91,44 × 5,33 mm |
Unions and other parts
| Position | Spare part | Selection |
|---|---|---|
| 16 | Drain plug - MAGNUSPart code: S92402081 | Match the code and pump version |
The drawing also shows components not offered separately here. The contents of each item are specified on its product page. If unsure, send us a photo of the original part and pump nameplate.
Product sorting
List of products
Listing controls

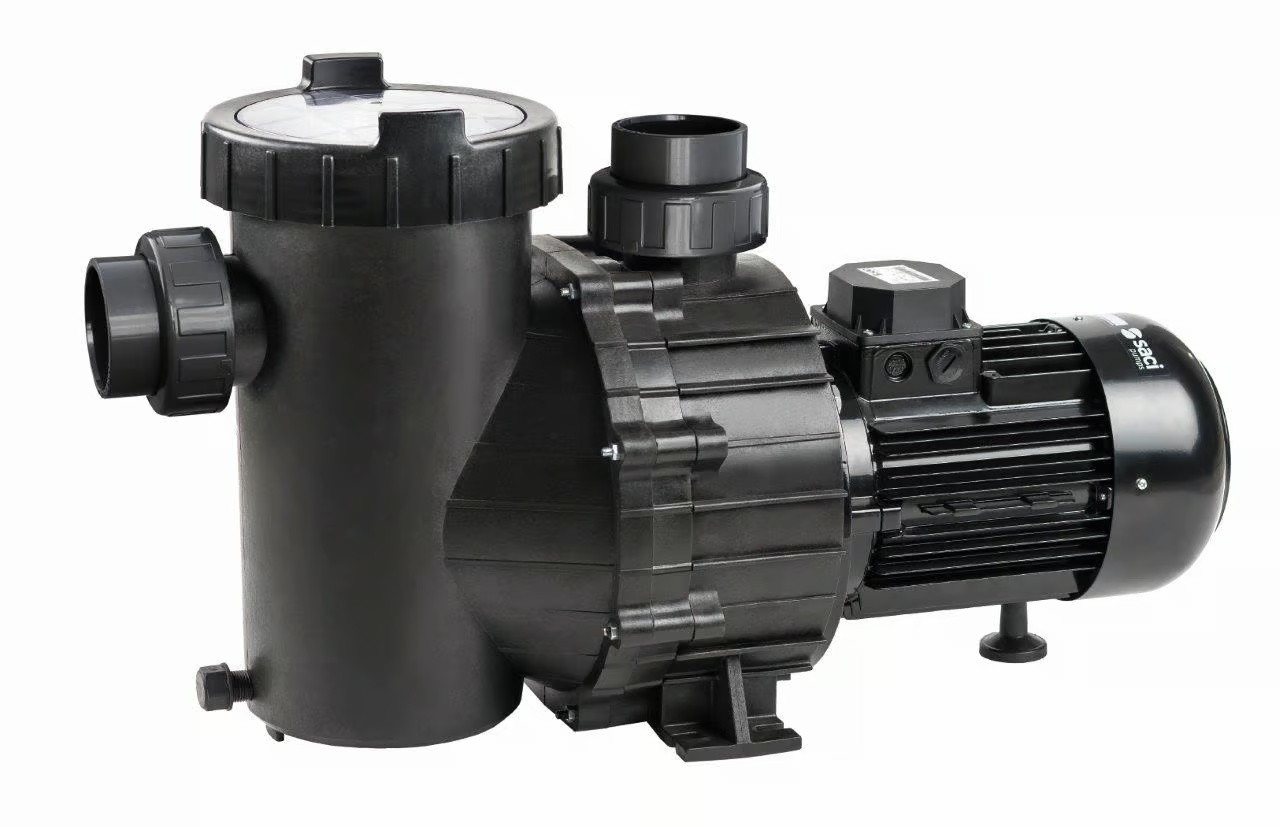

Spare parts for Supra pumps
Supra has its own strainer and shares some hydraulic components with the Bravus range. Choose replacements using the pump model and original component code.
Choosing a mechanical seal
The range includes seal S9012327L and CF-2 seal S9012325L. These are different parts, so the correct version needs to be matched to the original assembly.
The mechanical seal seals around the shaft. A leak under the lid or at the housing joint requires a different seal.
Strainer and impellers
The Supra strainer basket, lid and seal are separate items. Impellers differ for sizes 300, 400 and 550 and must match the pump's hydraulic assembly.
Photos of the nameplate and damaged part, including its markings, will help us find the correct replacement.
Frequently asked questions
Can I choose any mechanical seal in this category?
No. The order code and compatibility with the specific assembly must match.
Does a new lid include the basket?
The basket is a separate item and is not automatically supplied with the lid.
