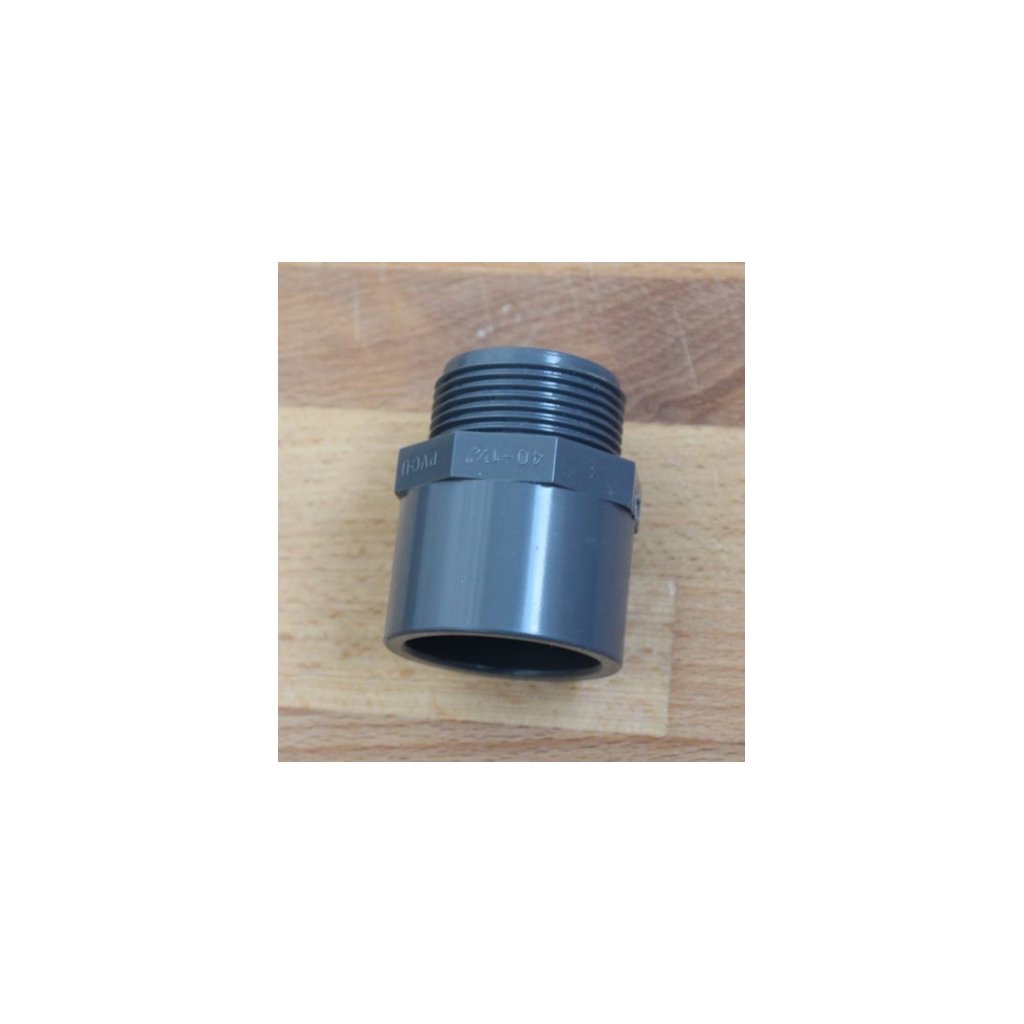

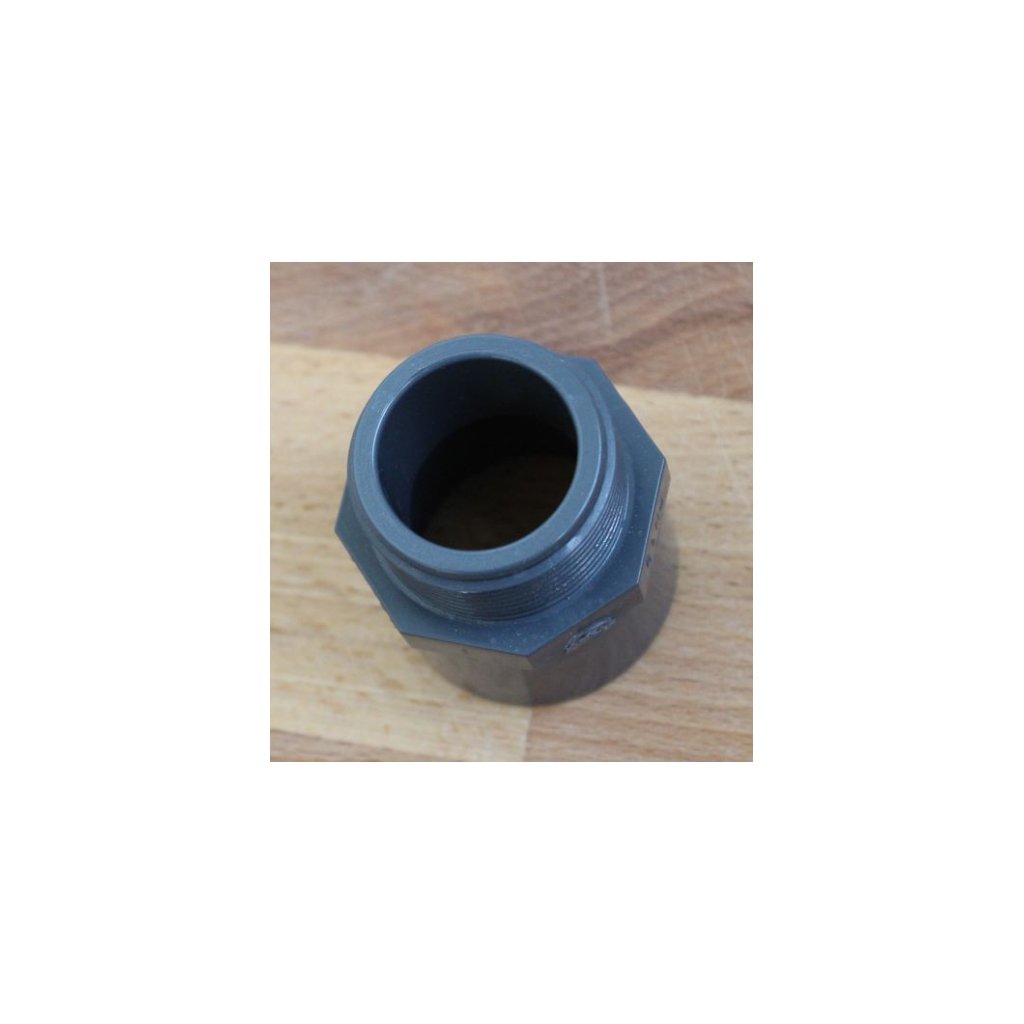

PVC male threaded adapter, 50 mm spigot / 40 mm socket × 1¼″
PVC adapter - bonding coupling - external thread.
One end accepts a 40 mm pipe or fits inside a 50 mm fitting for solvent welding; the other has a 1¼" male thread.
For connecting pool accessories such as pool pumps, salt chlorinators, uv-lamps or filter vessels.
Dimensions below
Connections: solvent-weld socket × 1¼" male thread.
| Parameter | Value |
|---|---|
| A: Outer diameter | 50 mm |
| B: Inner diameter | 40 mm |
| C: Thread diameter | 1 1/4" |
| D: Total length | 62 mm |
| E: Thread length | 28 mm |
| F: Socket insertion depth | 26 mm |
Pool Specialist Review
- + Easy and reliable installation
- Compatibility with different systems
- High durability and long service life
- Perfect for connection to pool accessories
- Requires careful preparation before installation
"This PVC adapter is the ideal solution for connecting your pool accessories. It makes it quick and easy to connect everything from pumps to UV lamps, with the assurance of a strong and permanent connection."
Team Poolservis
PVC male threaded adapter, 50 mm spigot / 40 mm socket × 1¼"
This PVC adapter allows for easy and efficient connection of pool accessories. It offers the possibility of gluing a 40 mm pipe on one side and on the other side it is equipped with a 1 1/4" external thread. It is ideal for connecting pool pumps, salt chlorinators, UV lamps or filter vessels.
Installation and maintenance
Before installation, it is important to thoroughly degrease the surfaces to be connected and use a special PVC adhesive to ensure a strong and reliable connection. After bonding, it is recommended to allow the joint to dry for 24 hours for maximum efficiency and safety.
To join, you need to use adhesive - link here.
Before bonding, degrease the areas with PVC cleaner where you will apply the glue. After gluing, allow to set for 24 hours.
Additional parameters
| Category: | Fittings, adapters, nipples |
|---|---|
| Weight: | 0.08 kg |
| Brand: | Vagnerpool |
