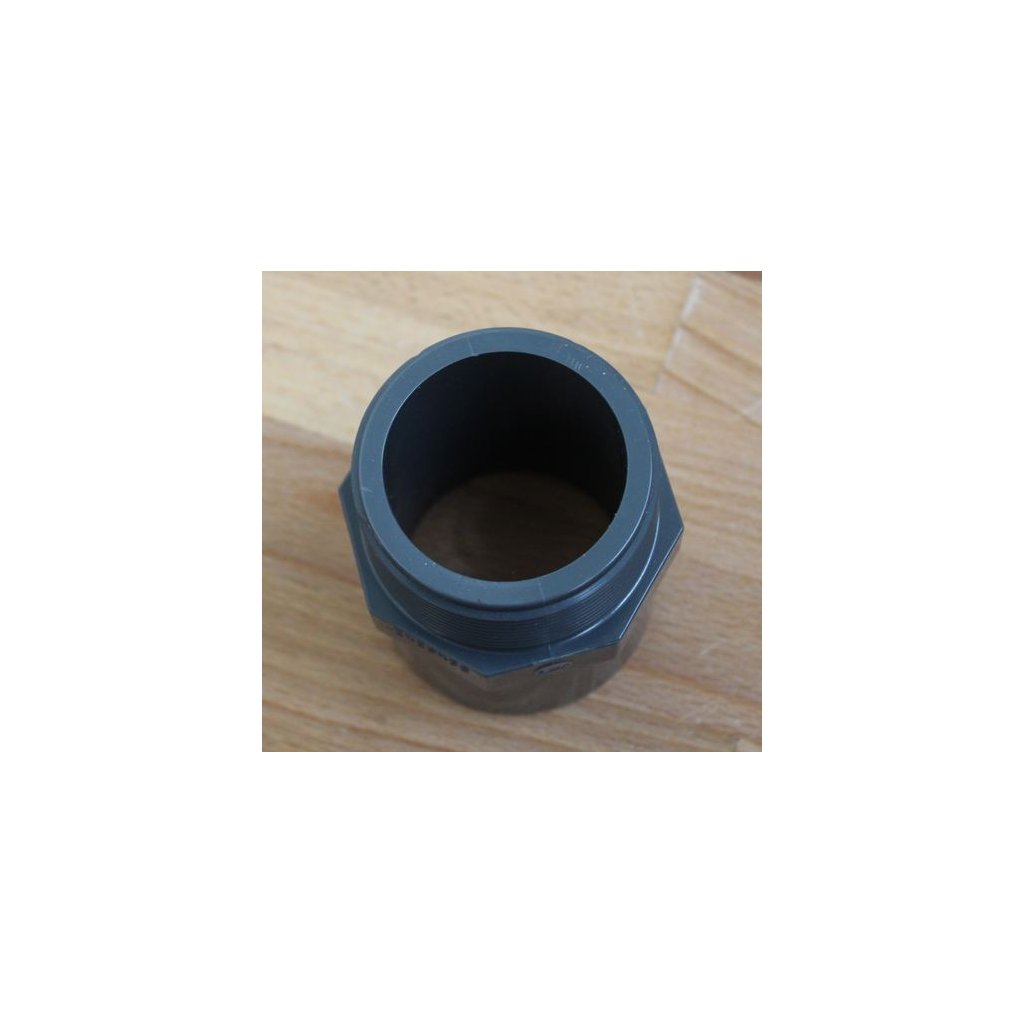

PVC adapter – 63 mm socket / 75 mm spigot × 2½″ male thread
PVC adapter – solvent-weld connection / male thread.
One end accepts a 63 mm pipe bonded inside, or can be bonded externally into a 75 mm elbow, socket or tee. The other end has a 2½″ male thread.

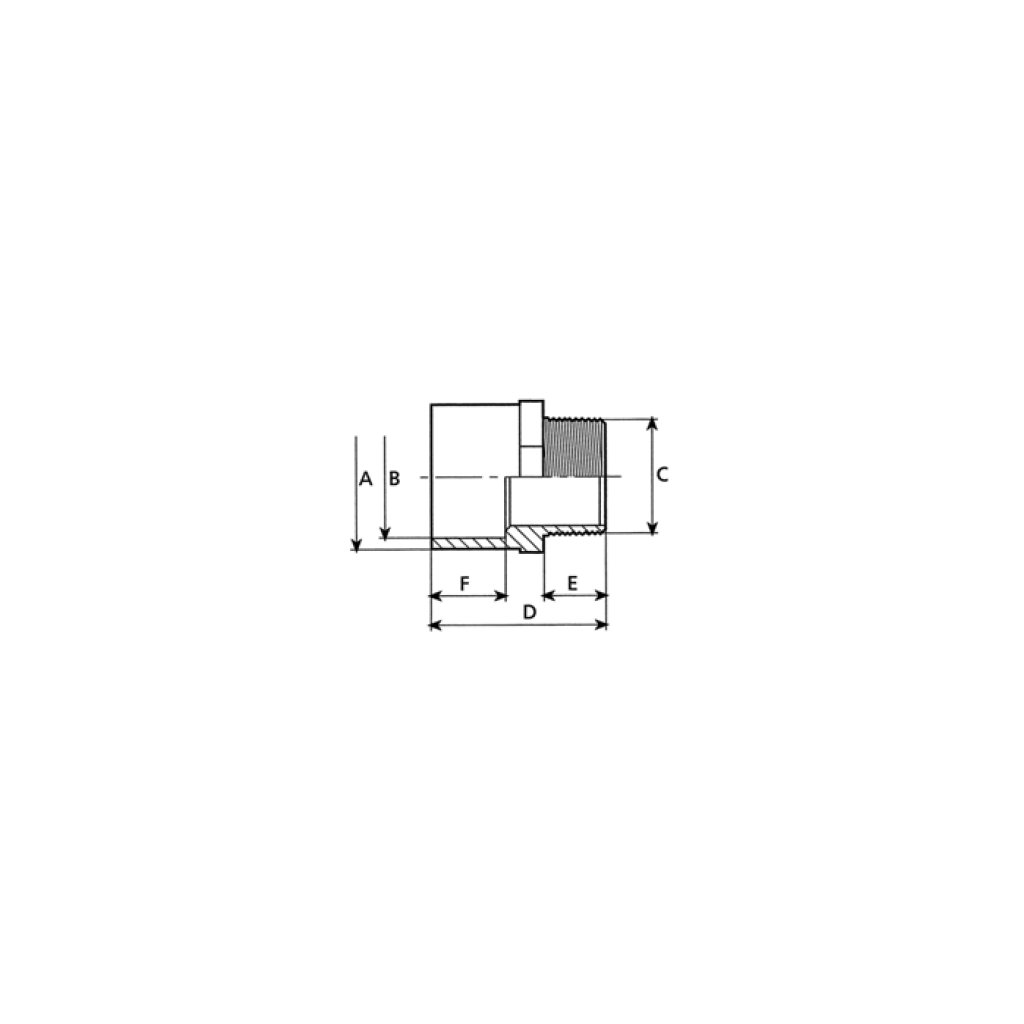

Dimensions below
Solvent-weld connection / 2½″ male thread.
| Parameter | Value |
|---|---|
| A: Outer diameter | 75 mm |
| B: Inner diameter | 63 mm |
| C: Thread diameter | 2 1/2" |
| D: Total length | 75 mm |
| E: Thread length | 28 mm |
| F: Socket insertion depth | 34 mm |
Pool Specialist Review
- + Easy and reliable installation
- Compatibility with different systems
- High durability and long service life
- Perfect for connection to pool accessories
- Requires careful preparation before installation
"This PVC adapter is the ideal solution for connecting your pool accessories. It makes it quick and easy to connect everything from pumps to UV lamps, with the assurance of a strong and permanent connection."
Team Poolservis
This PVC adapter allows easy and efficient connection of pool accessories. It offers the possibility of gluing a 63mm pipe on one side and on the other side it is equipped with a 2 1/2" external thread. It is ideal for connecting pool pumps, salt chlorinators, UV lamps or filter vessels.
Installation and maintenance
Before installation, it is important to thoroughly degrease the surfaces to be connected and use a special PVC adhesive to ensure a strong and reliable connection. After bonding, it is recommended to allow the joint to dry for 24 hours for maximum efficiency and safety.
To join, you need to use adhesive - link here.
Before bonding, degrease the areas with PVC cleaner where you will apply the glue. After gluing, allow to set for 24 hours.
Additional parameters
| Category: | PVC pipes & fittings – 63 mm |
|---|---|
| Weight: | 0.1 kg |
| Brand: | Vagnerpool |
