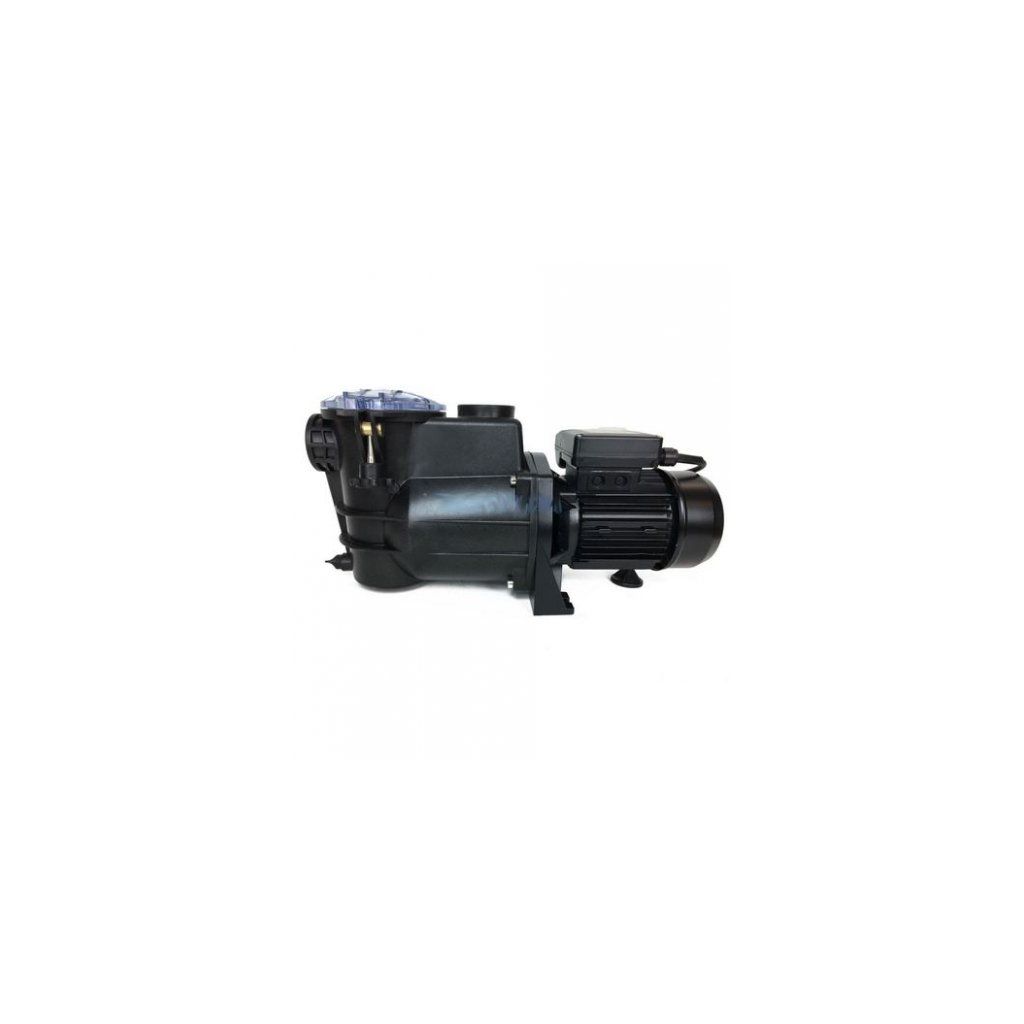

Pool pump Mini Delfino 50M - 10m3/h - for salt water

Reliable and durable pool pump

Designed for efficient water cleaning and circulation in domestic pools, the Mini Delfino 50M pool pump offers high durability and reliability. Its reinforced polypropylene housing and AISI 316 stainless steel components ensure a long service life and minimal maintenance.

Easy installation and maintenance

The pump is designed for easy installation. The pump is self-priming and can be installed up to 1.5 m above the water level (we nevertheless recommend using a non-return valve on the suction side). If installing above the water level, we strongly recommend using a non-return valve on the suction side. The hair and debris pre-filter and easy access to the basket make pump maintenance quick and straightforward.

Optimised performance and safety

The pump is designed for maximum performance and safety. It provides a steady water flow of 10 m³/h, ideal for pools of 25–35 m³. Its IP55 protection rating protects the pump against water and dust, increasing safety and service life.

Flexible, straightforward installation

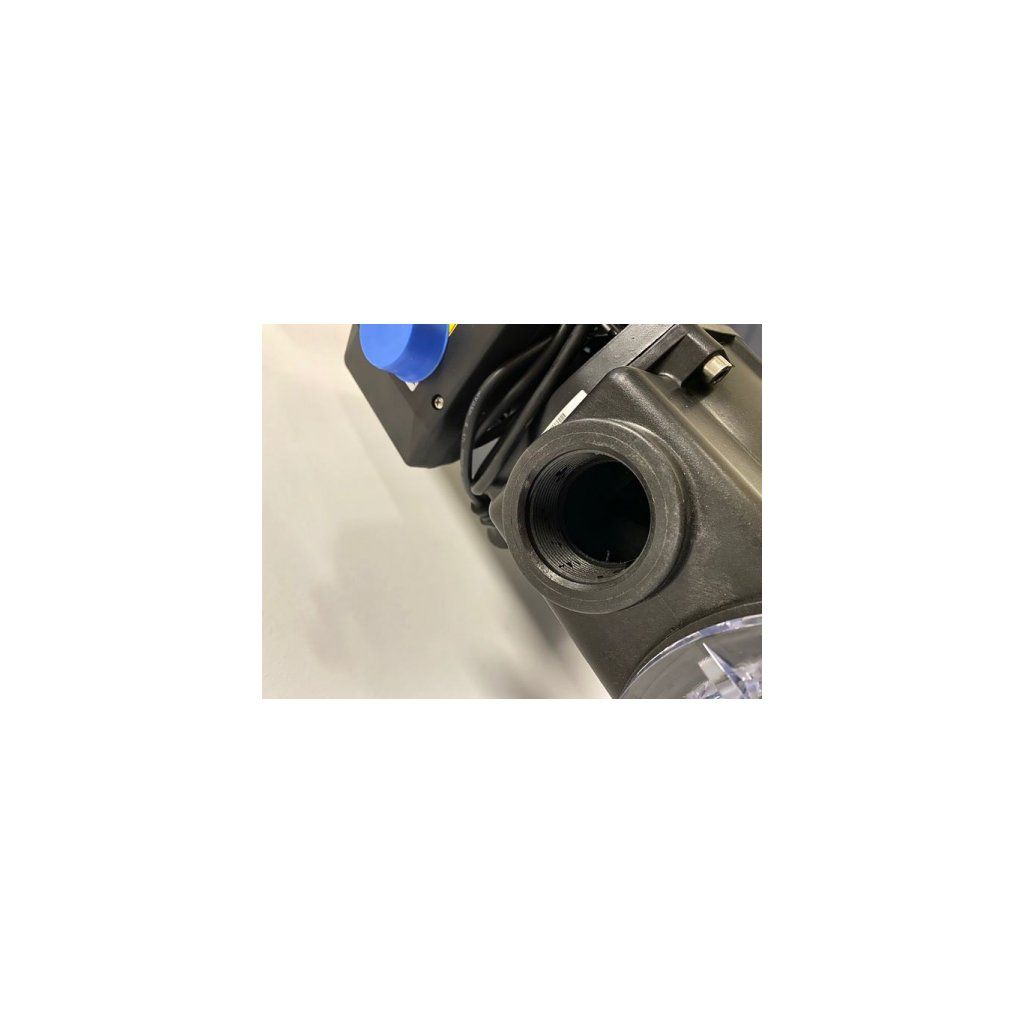

Installation is simple and flexible. The 1½-inch threaded connection is compatible with standard piping systems.

Quality and satisfaction assurance

Every Mini Delfino 50 pump is carefully tested, as confirmed by the included test sticker. This assurance of quality and reliability means you can expect lasting satisfaction and trouble-free operation of your pool system.

Heat pump features

• Every unit is tested
• The glass-fibre-reinforced polypropylene pump body and diffuser provide an exceptionally long service life

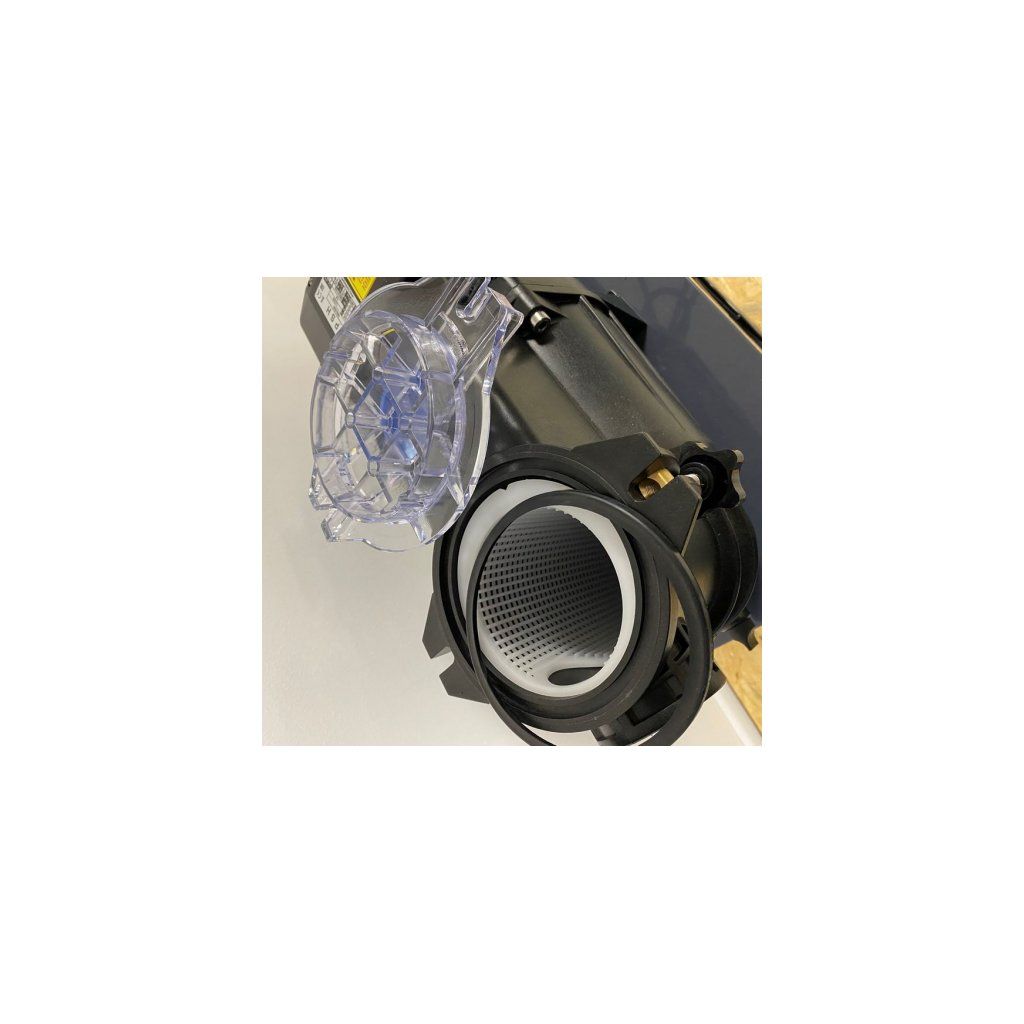

• The transparent pre-filter lid makes it easy to check the basket for blockage
• Easy access for basket cleaning
• The pump shaft does not come into contact with the pumped water

Which pool pump should you choose?

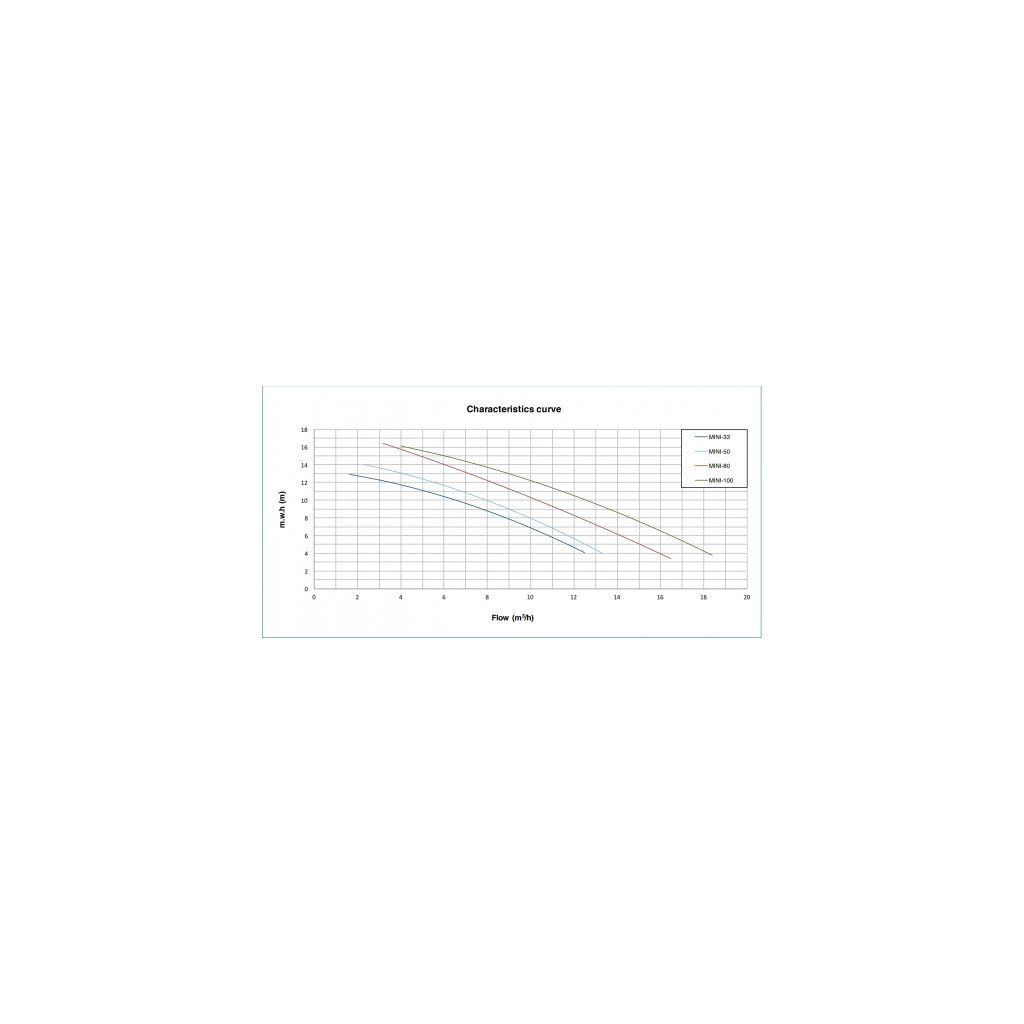

Use the table below to select a suitable pump for your pool. The full pool volume should pass through the pump approximately once every 3 hours, allowing 6 hours of filtration per day except on the hottest days.

If the filtration pump is in a garden shed or garage around 10 metres away, we recommend this pump for pools of 25–35 m³.

Package contents:

Pump including pre-filter and lid

Czech manual

You may need the following when installing the Mini Delfino pool pump:

Connect the pump to the pool circuit using, for example, 50 mm pipes or 50 mm flexible hose. Threaded connection union. We also recommend installing a 50 mm pool ball valve before and after the pump, especially if it is below the pool water level. This prevents the pool from draining when working on the pump. For solvent-welding, use pool adhesive for PVC joints.

Installation:

The pump must be mounted on a firm, smooth surface. The pump must be properly
secured using the two mounting holes in its base with two suitable
screws or threaded studs to prevent noise and vibration that could
affect pump operation.

Protect the pump from flooding, ensure adequate ventilation and
prevent exposure to frost. If installed outdoors, it must be
protected from rain.

We recommend installing shut-off valves on both the suction and
discharge sides so the pump can be removed when necessary without draining all the
pipework.

The suction pipe must have at least the same diameter as the pump inlet. On the discharge side,
use pipework with a diameter matching the pump outlet.
Lay the suction pipe with a slight upward slope towards the pump to prevent
air pockets.

After winterising the pool, store the pump in a dry place with a constant temperature (such as a garage). This extends its life and prevents the corrosion that can occur in a damp pool equipment pit during wet autumn weather and winter frost.
