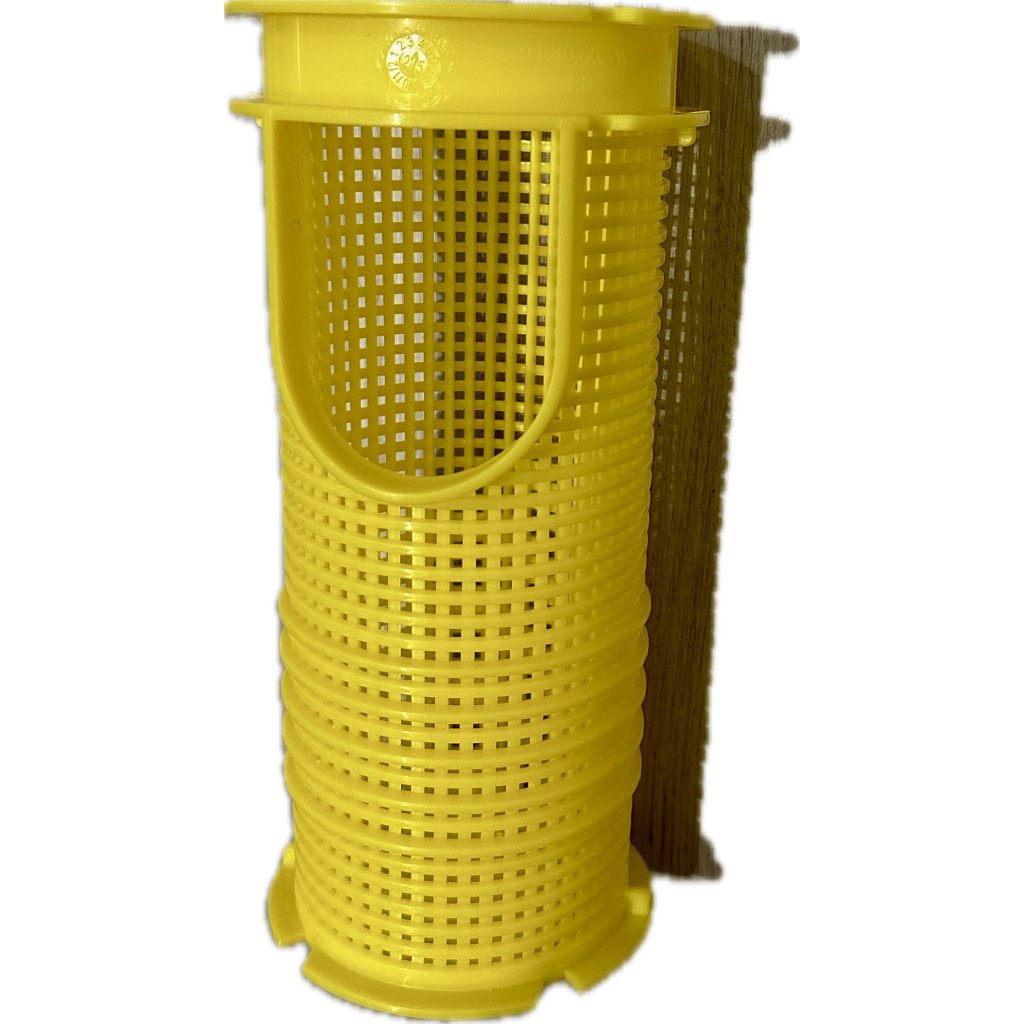

Pump basket Aqua Plus 4, 6, 8, 11
Dimensions and technical details
| Diameter of basket | 9,8 cm |
|---|---|
| Height excluding handle | 20,1 cm |
The removable strainer basket catches leaves and larger debris before they reach the impeller. Regular cleaning helps keep water flowing freely.
Part code: 2901314300
Dimensions and technical details
| Diameter of basket | 9,8 cm |
|---|---|
| Height excluding handle | 20,1 cm |
Pump basket Aqua Plus 4, 6, 8, 11
The removable strainer basket catches leaves and larger debris before they reach the impeller. Regular cleaning helps keep water flowing freely.
Pool technician’s advice
Compare basket height, shape and seating.
What to check before ordering
The pre-filter basket catches larger debris before the impeller. A dirty but undamaged basket usually needs cleaning rather than replacement. Cracks or distortion can impair its function.
Compatibility and part identification
| Shop code | 2901314300 |
|---|---|
| Compatibility | Aqua Plus 4, 6, 8, 11 |
| Aqua Plus diagram position | 143 |
How to choose the correct version
Compare height, diameter, top rim and seating in the pre-filter body. The basket must sit in its intended position without distortion and allow the lid to close correctly.
When to replace the part
Replace a cracked or distorted basket. Clean a clogged but undamaged basket first.
Important points when replacing the part
Remove the basket with the pump stopped, following the opening instructions. Empty debris and rinse the basket. Check the lid gasket before closing and verify normal flow after restarting.
Version details
Disconnect the pump from the power supply and drain the water before disassembly. Motor repairs, capacitor replacement and mechanical seal installation should be carried out by a qualified technician.
Using the exploded diagram
The listed position refers to the corresponding assembly diagram. The arrow helps locate the part; for some small components it marks only the fitting area. Compare the original part, its code and the specific pump version before ordering. You are ordering the item named in this listing, not the complete assembly in the diagram.
Related spare parts guides
Need help identifying the part
Email info@chemie-bazen.cz with photographs of the original part and the pump rating plate. Include measured dimensions and the fitting location to help identify the correct version.
Additional parameters
| Category: | Aqua Plus pump spare parts – 4, 6, 8, 11 |
|---|---|
| Weight: | 0.2 kg |
| Druh dílu: | Košík předfiltru |
| Kód náhradního dílu: | 2901314300 |
| Kompatibilní řada: | Aqua Plus |
| Pozice v rozkresu Aqua Plus: | 143 |
| Product type: | Náhradní díl |
| Brand: | Badu |
