Hayward 300 W light screw – HSPX1088M
Screw HSPX1088M is a fixing component of the Hayward 300 W light at position 11. The supplier also includes the designation HSPX1088Z for this item.
HSPX1088M · 11 · Screw · HSPX1088Z designation
HAYWARD 300 W · HSPX1088M · 11
Hayward 300 W light screw – HSPX1088M
Screw HSPX1088M is a fixing component of the Hayward 300 W light at position 11. The supplier also includes the designation HSPX1088Z for this item.
What to check before ordering
Compare the original code, thread, length and head. Dimensions are not listed for this item, so do not automatically substitute the M5 screws from other diagram positions.
Version and scope of supply
Screw identified by current code HSPX1088M. Additional fasteners or accessories are not confirmed for this item in the supplier overview.
Part specifications
| Part code | HSPX1088M |
|---|---|
| Diagram position | 11 |
| Light series | Hayward 300 W |
| Version | Screw · HSPX1088Z designation |

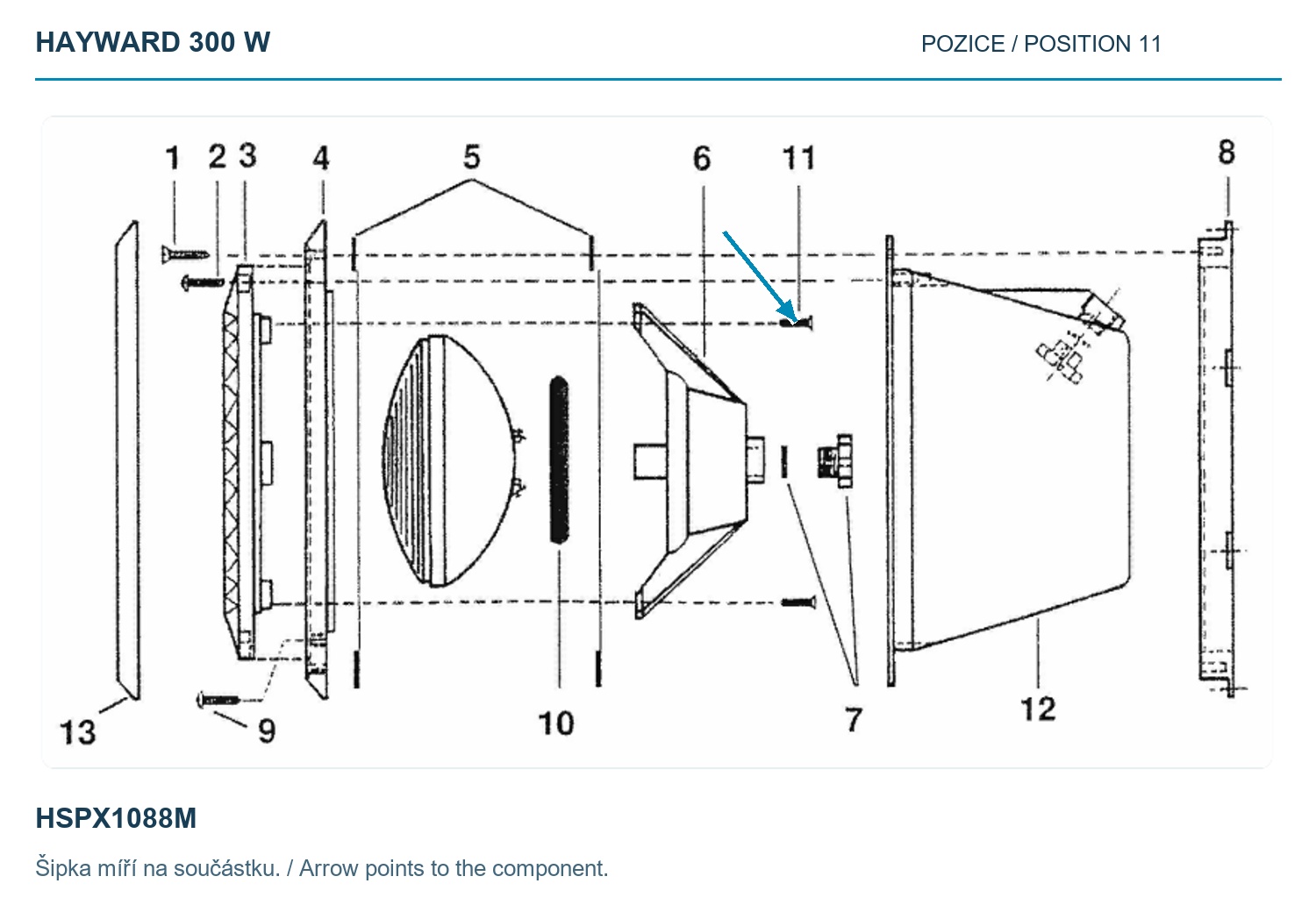

Diagram position
The blue arrow points directly to the component. The drawing is an assembly schematic; the manufacturer code determines the actual version.
Back to the diagram and parts list
Diagram and documentation
Original exploded parts drawing and list (PDF) →
The PDF contains an exploded drawing and part identification rather than an installation manual. The original document may also illustrate versions not included in this selection.
Isolate the power supply before service. Electrical connections and checks must be handled by a qualified specialist.
