ZODIAC CNX 20
For pools up to 9x4m.
| Pool type |
|---|
| Round |
| Oval |
| Rectangle |
| Square |
| Kidney-shaped |
| More complicated shape |
| Two-level floor |
| Pool with depth |
A Pool Specialist's Opinion - Review
- + Effectively cleans pool bottom and walls
- + Easily removable filter basket
- + Suitable for pools up to 9x4m, including more complicated shapes
- + Easy to install and use
- - Has one brush, no cart
"ZODIAC CNX 20 is the ideal solution for larger pools and diverse shapes. With its ability to clean the bottom and walls of the pool, even in more complex shapes, it is one of the most versatile pool robots on the market."
Team Poolservis

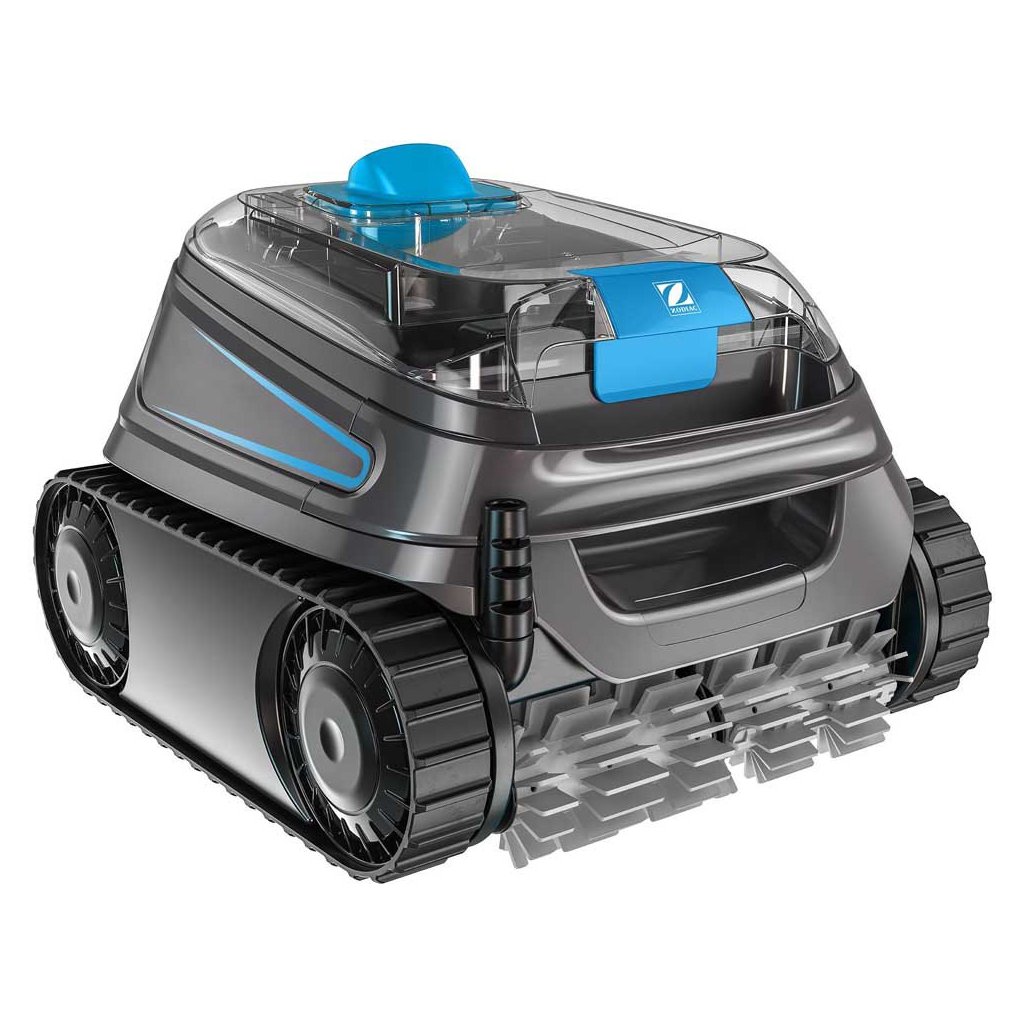

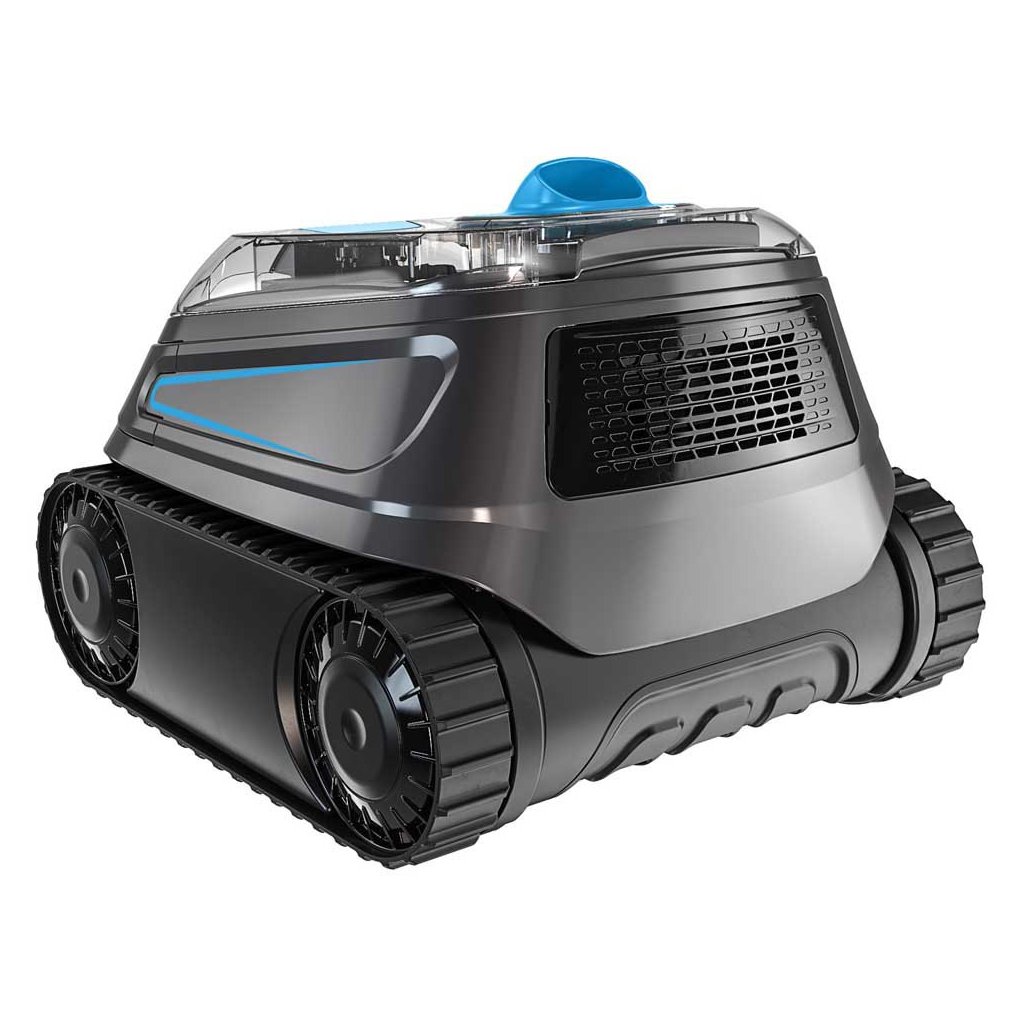

ZODIAC CNX 20 - Powerful Robotic Pool Vacuum Cleaner
ZODIAC CNX 20 is designed for efficient and convenient cleaning of pools up to 9x4 meters. Its versatility allows it to be used in pools of various shapes, including more complicated ones such as oval or pools with a two-level floor.
Easy to use and maintain
Thanks to its easily removable filter basket and simple installation, this robotic vacuum cleaner is suitable for less experienced users.
The fine 60mic basket can be purchased with the robot
Flexibility and compatibility
ZODIAC CNX 20 is compatible with a variety of pool surfaces, including pool liners, reinforced PVC, glass ceramic, fibreglass, plastic and painted concrete.
Advantages and disadvantages
Main advantages include high cleaning efficiency, versatility and ease of use. Disadvantages include the limited ability to clean very dirty or inaccessible areas.
The CNX robot is a crawler robot with a filter basket.
* Cleans the bottom, walls and waterline.
* Quickly removable filter basket.
* Filter basket with 3 dirt catching capabilities.
Robot Usability:
- .
- Pool Types: private above ground and inground fixed wall pools with a maximum size of 9x4m.
- Pool types: rectangular, oval, freeform.
- Bottom types: flat, gently sloping,
- Surfaces: foil, reinforced PVC, painted concrete
| Technical parameters | Value |
|---|---|
| Maximum size | 9x4m |
| Cabinet power supply voltage | 200-240 VAC; 50 Hz |
| cleaning cycle | 1.5-2.5 h |
| Cart | No |
| Cable length | 15 m |
| Filtration area / filtration level | 526 cm² / 100μ |
| Baskets available for purchase | 60, 100, 150, 200mic |
| Theoretical cleaning width | 23 cm |
| Remote control | No |
| Packaging content |
|---|
| Robotic vacuum cleaner |
| Control unit |
| Filter bag inside the robot (100mic) |
How to care for your automatic pool cleaner
Regular care helps maintain performance and extend the cleaner’s service life. Refer to the manual for detailed instructions and the operating limits of your model.
- Maintain correct pH and chemical levels. Unsuitable pH or excessive sanitiser concentrations can damage materials and shorten the cleaner’s life.
- Do not leave the cleaner in the pool unnecessarily. Remove the cleaner from the water after the cleaning cycle. Rinse it with clean water, allow it to drain and store it in a dry, ventilated place. Unnecessary prolonged immersion exposes its components to pool chemicals and mineral deposits.
- Clean the filter after every use. Empty and thoroughly rinse the basket or filter bag. A clogged filter restricts water flow and reduces cleaning performance.
- Rinse the entire cleaner after use in salt water. Avoid unnecessary immersion. After removal, thoroughly rinse the exterior, filter compartment and removable filters with clean, unsalted water to remove salt residue. Follow the manual’s rinsing and handling instructions.
Additional parameters
| Category: | Automatic pool vacuum cleaners |
|---|---|
| Weight: | 18 kg |
| Brand: | Zodiac |
| ? Cleaning coverage: | Floor, walls and waterline |
| Robot power supply: | Corded |
| ? Recommended pool length: | 8–10 m |
| ? Filter fineness: | 60–120 µm |
| ? Pool surface: | Liner / PVC, Plastic, Fibreglass, Concrete |
| ? Pool floor profile: | Flat, Sloping, Complex |
| ? App control: | No |
| Filter access: | Top access |
| ? Transport trolley included: | No |
