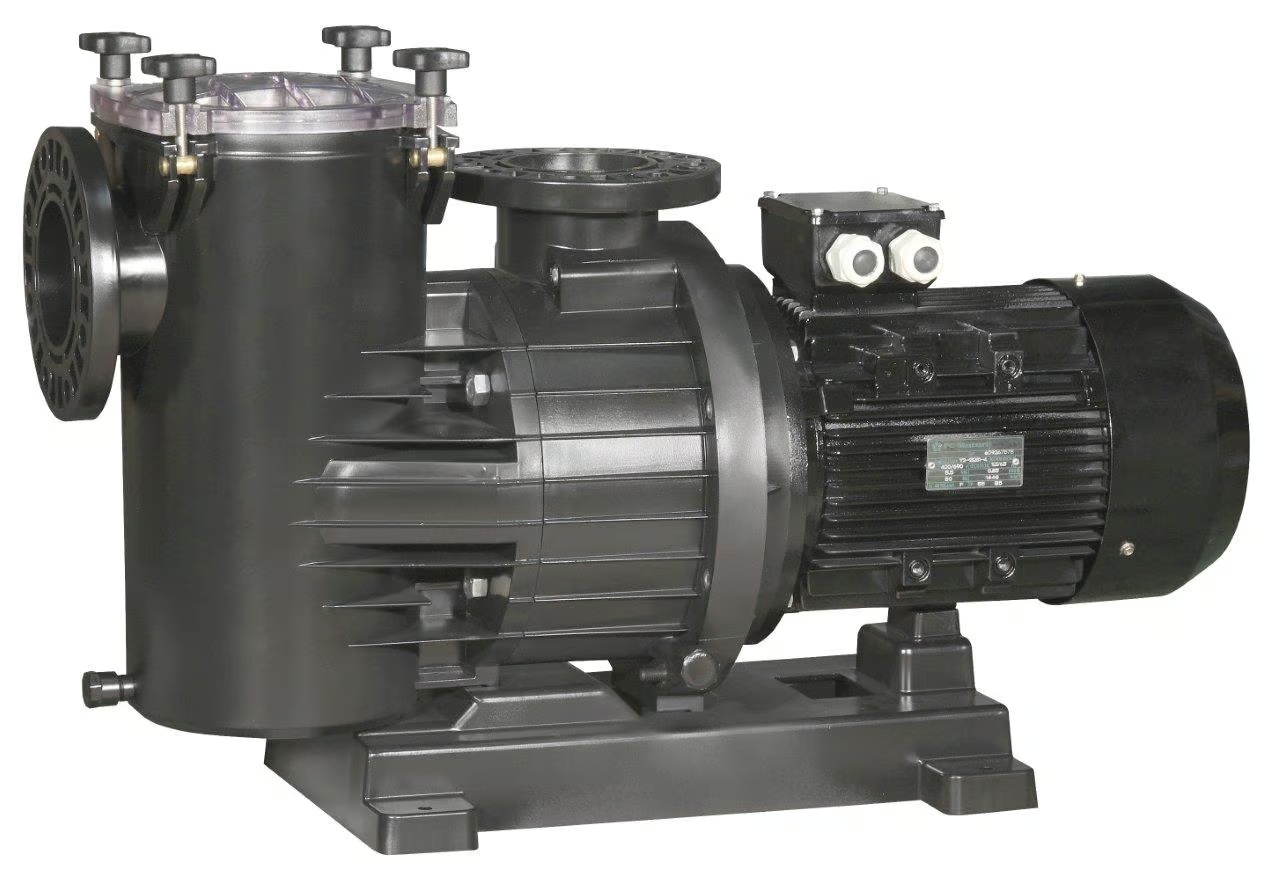

Spare parts for Magnus

Find the correct part using its position in the original exploded view, catalogue code and pump version. Check the rating and generation before ordering: similar-looking parts may differ.

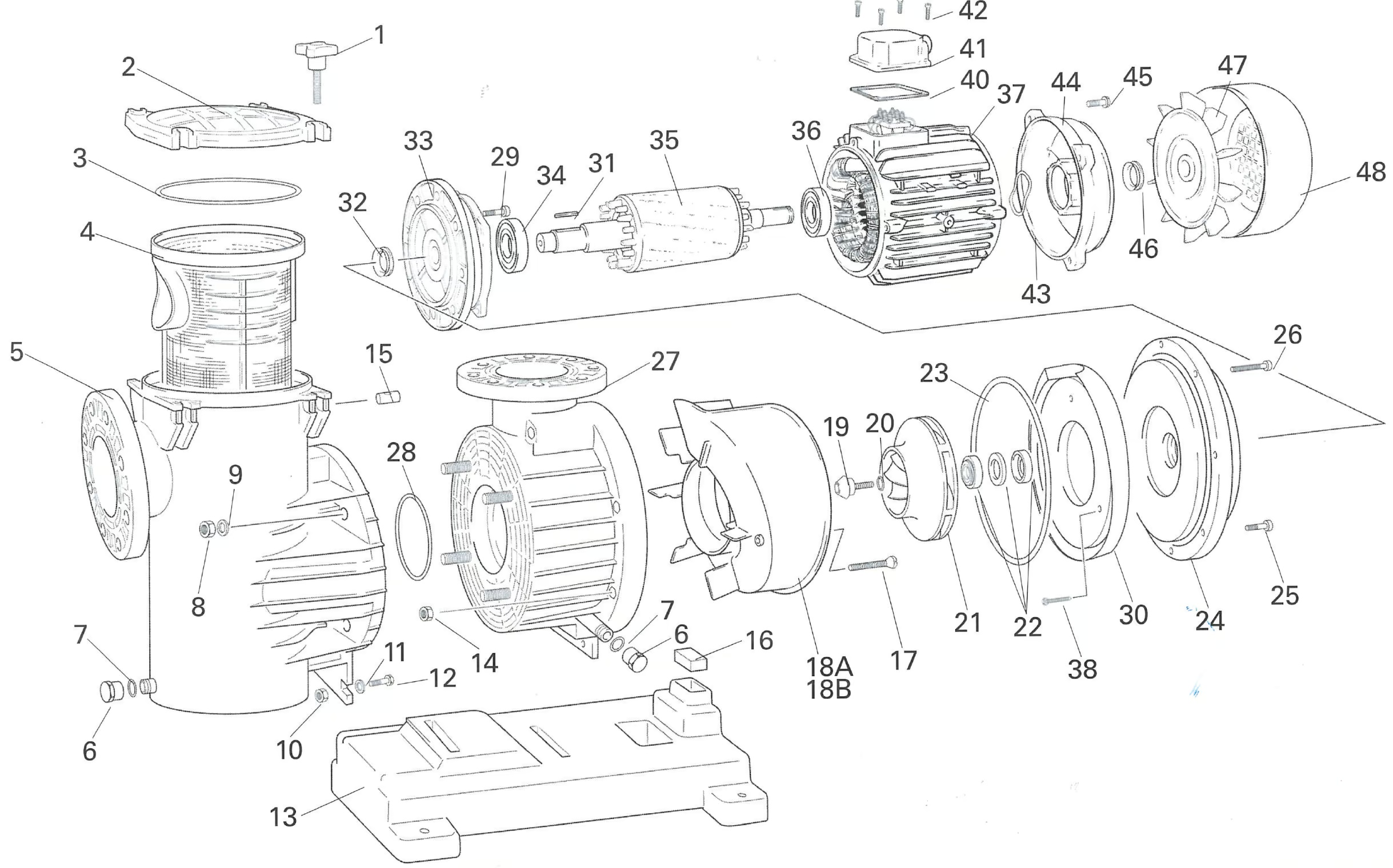

Click the drawing to view it at full size. The numbers correspond to positions in the parts list.

Find a spare part

Strainer lids, baskets and housings

Position	Spare part	Selection
2	Strainer lid MAGNUSPart code: S92402050	Match the code and pump version
4	Strainer basket MAGNUSPart code: S92402051	Match the code and pump version
5	Strainer housing MAGNUSPart code: S92402053	Match the code and pump version
27	Pump housing MAGNUSPart code: S92402054	Match the code and pump version

Impellers, diffusers and seal plates

Position	Spare part	Selection
18	Diffuser MAGNUS-4Part code: S92402057	Match the code and pump version
19	Impeller screw MAGNUS A2Part code: S92402080	Match the code and pump version
21	Impeller MAGNUS-4 300Part code: S92402059	Match the code and pump version
21	Impeller MAGNUS-4 250Part code: S92402065	Match the code and pump version
21	Impeller MAGNUS-4 400Part code: S92402060	Match the code and pump version
21	Impeller MAGNUS-4 550Part code: S92402061	Match the code and pump version
21	Impeller MAGNUS-4 750Part code: S92402062	Match the code and pump version
21	Impeller MAGNUS-4 1000 stainless steelPart code: S92402112	Match the code and pump version
21	Impeller MAGNUS-4 750 bronzePart code: S92402073	Match the code and pump version
21	Impeller MAGNUS-4 1000 bronzePart code: S92402074	Match the code and pump version
21	Impeller MAGNUS-2 1250 bronzePart code: S92402077	Match the code and pump version
21	Impeller MAGNUS-4 1000Part code: S92402660	Match the code and pump version
24	Pump seal plate MAGNUS 300-550Part code: S92402098	Match the code and pump version
24	Pump seal plate MAGNUS 750-1500Part code: S92402099	Match the code and pump version
	Impeller screw MAGNUS A4Part code: S92402079	Match the code and pump version

Seals and mechanical seals

Position	Spare part	Selection
3	Strainer lid seal MAGNUSPart code: S92402084	Match the code and pump version
7	Drain plug seal .MAGNUSPart code: S92402087	Match the code and pump version
20	Impeller screw seal MAGNUSPart code: S92402088	Match the code and pump version
23	Pump housing seal MAGNUSPart code: S92402086	Match the code and pump version
28	Strainer housing seal MAGNUSPart code: S92402085	Match the code and pump version

Unions and other parts

Position	Spare part	Selection
6	Drain plug - MAGNUSPart code: S92402081	Match the code and pump version

The drawing also shows components not offered separately here. The contents of each item are specified on its product page. If unsure, send us a photo of the original part and pump nameplate.
